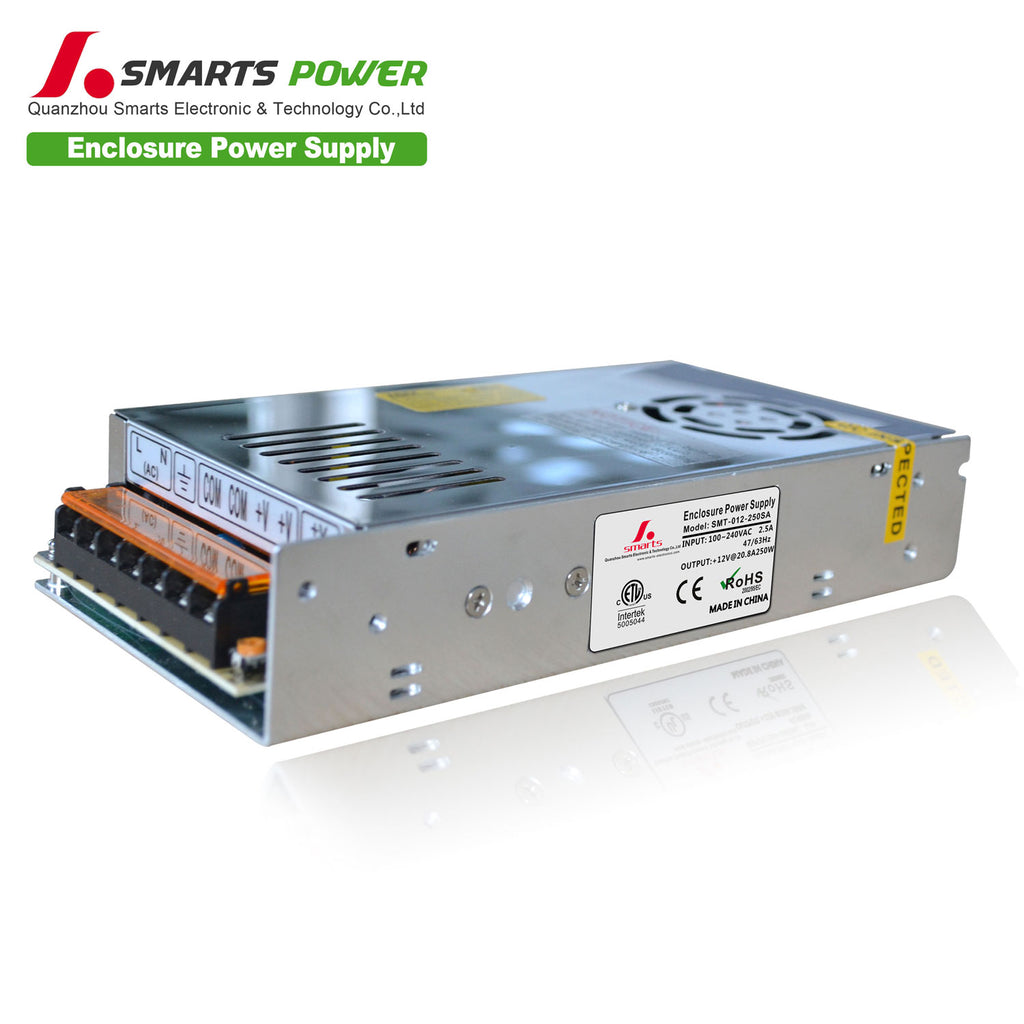

Enclosure LED Power Supply 250W
SMT-012-250SA
Enclosure Power Supply
SMARTS
smarts power Net shell design led power supply 12v 250W, ip20 waterproof grade, honeycomb design good heat dissipation, with short circuit, overvoltage, overload, overcurrent protection design, war...
smarts power Net shell design led power supply 12v 250W, ip20 waterproof grade, honeycomb design good heat dissipation, with short circuit, overvoltage, overload, overcurrent protection design, warranty for two years
Product Input Specifications
| Input Voltage | Input Frequency | Input Current | Power Factor | 110V Inrush Current | 230V Inrush Current | Total Syntonic Wave |
| 100~265Vac | 40-60Hz | 1.78±0.002A | 0.73-0.85 | 25A | 45A | 20%Mac |
Product Input Specifications
| Output Voltage | Max. Output Power | Output Current | Efficiency | No-load power | Output Ripple | Load Regulation |
| 5.0±0.5Vdc | 250W | 50.02A±5% | >83%/110V, 220V | ≦240MV | ≦±10% |
Protection Function
overcurrent,overvoltage,overheat,short curcuit protection:Auto-recovery
Environmental Specifications
| Operation Temp. | Store Temp. | Raise Temp. | Operation Humidity | Using Field | ||
| -25~55℃ | -40~80℃ | ≤25℃ | 5-95%RH | Forbidding Strong Magnetic Field | ||
Reference Srandards
Safety Standards:GB195110.1-2004/IEC61347-1:2003 ETL,CE(EMC+LVD) certificate
EMC Standard:EN55015,EN61000,EN61547
Size：199*98*38mm
