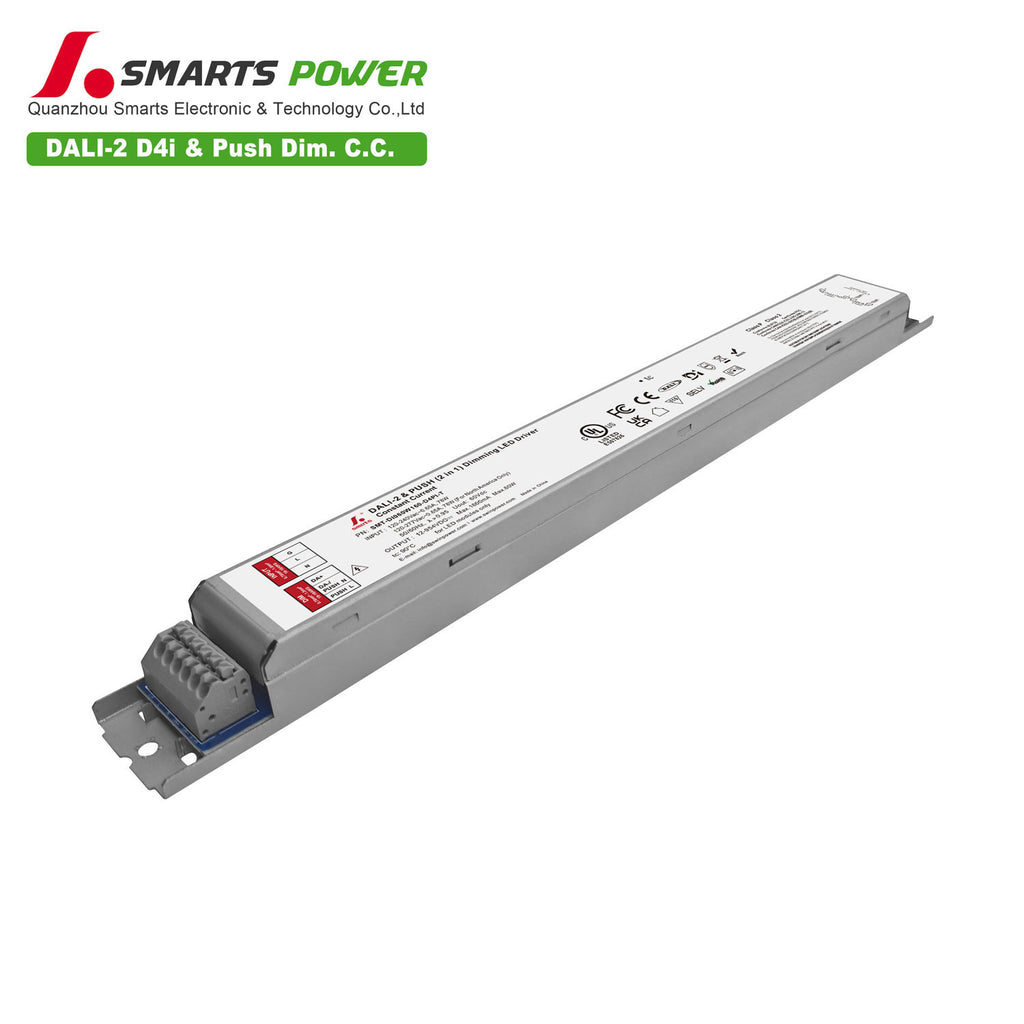

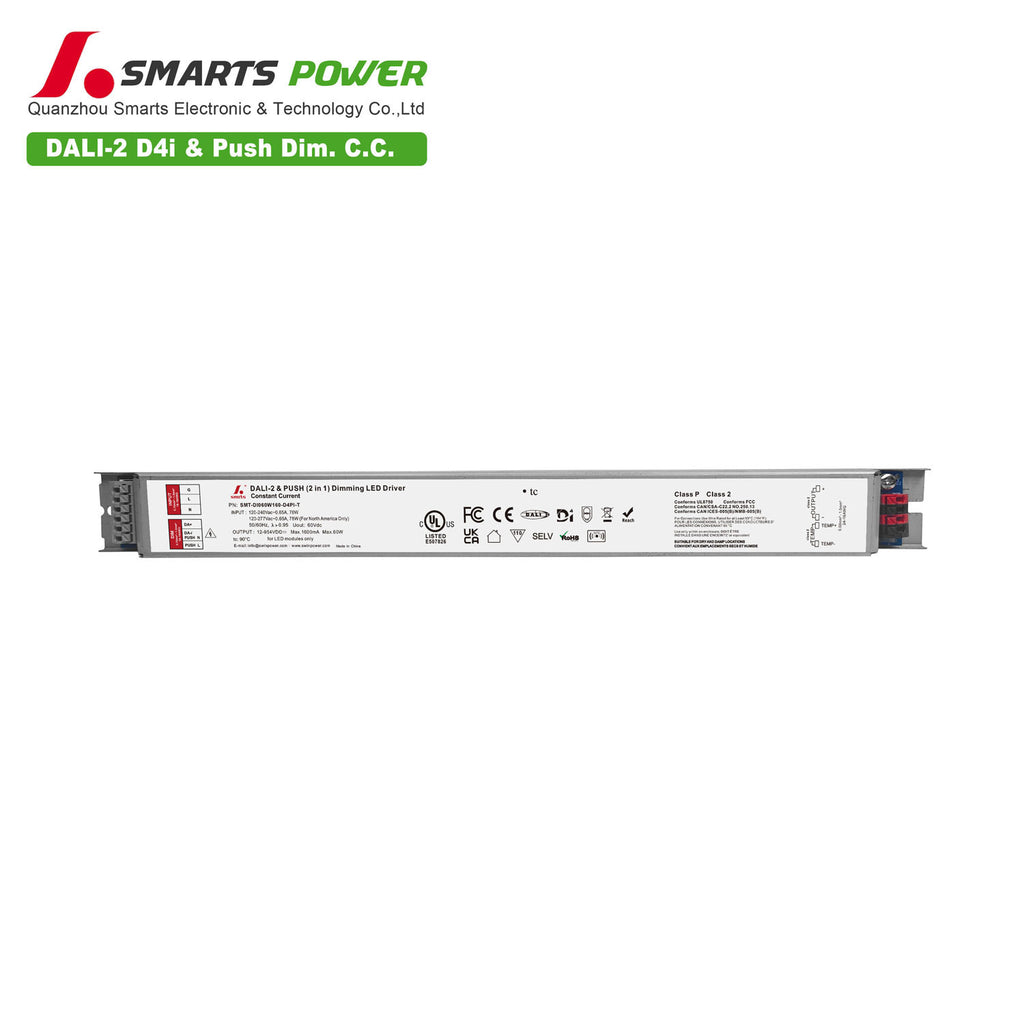

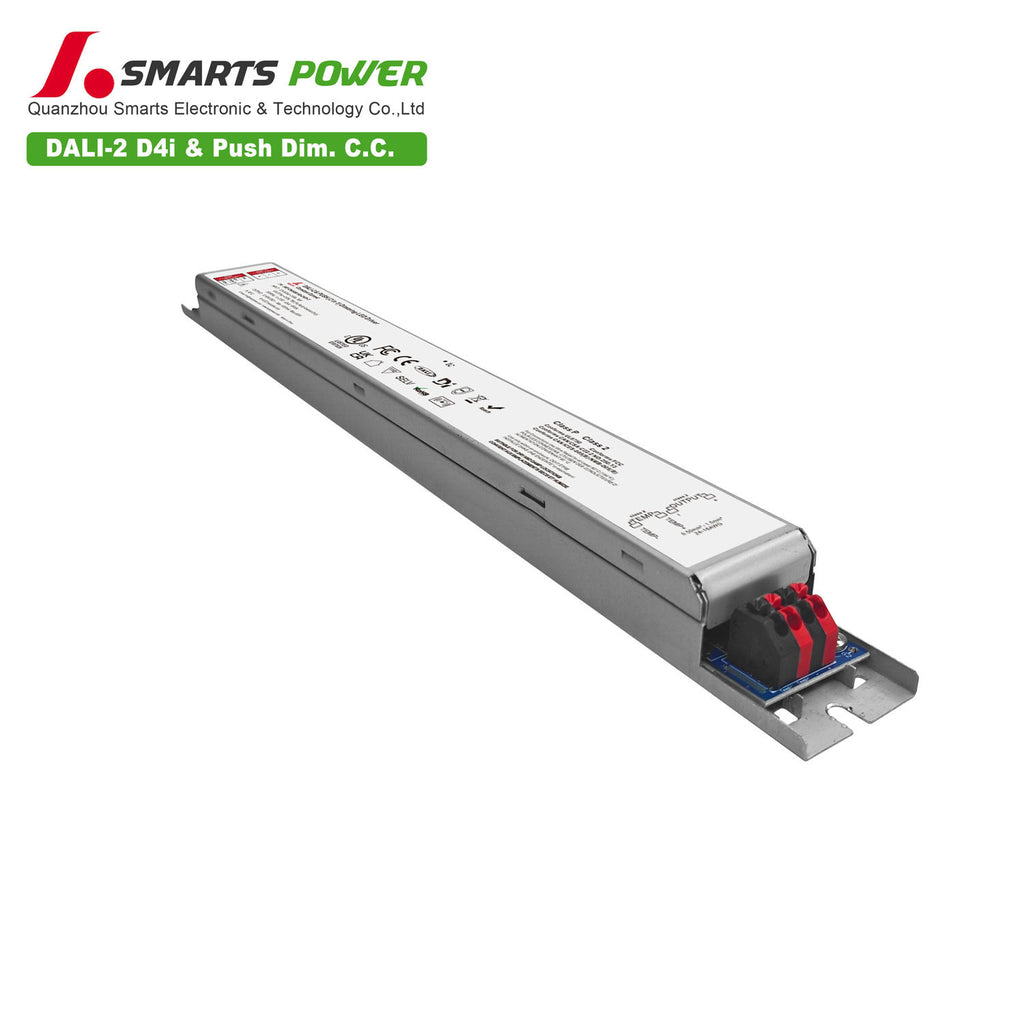

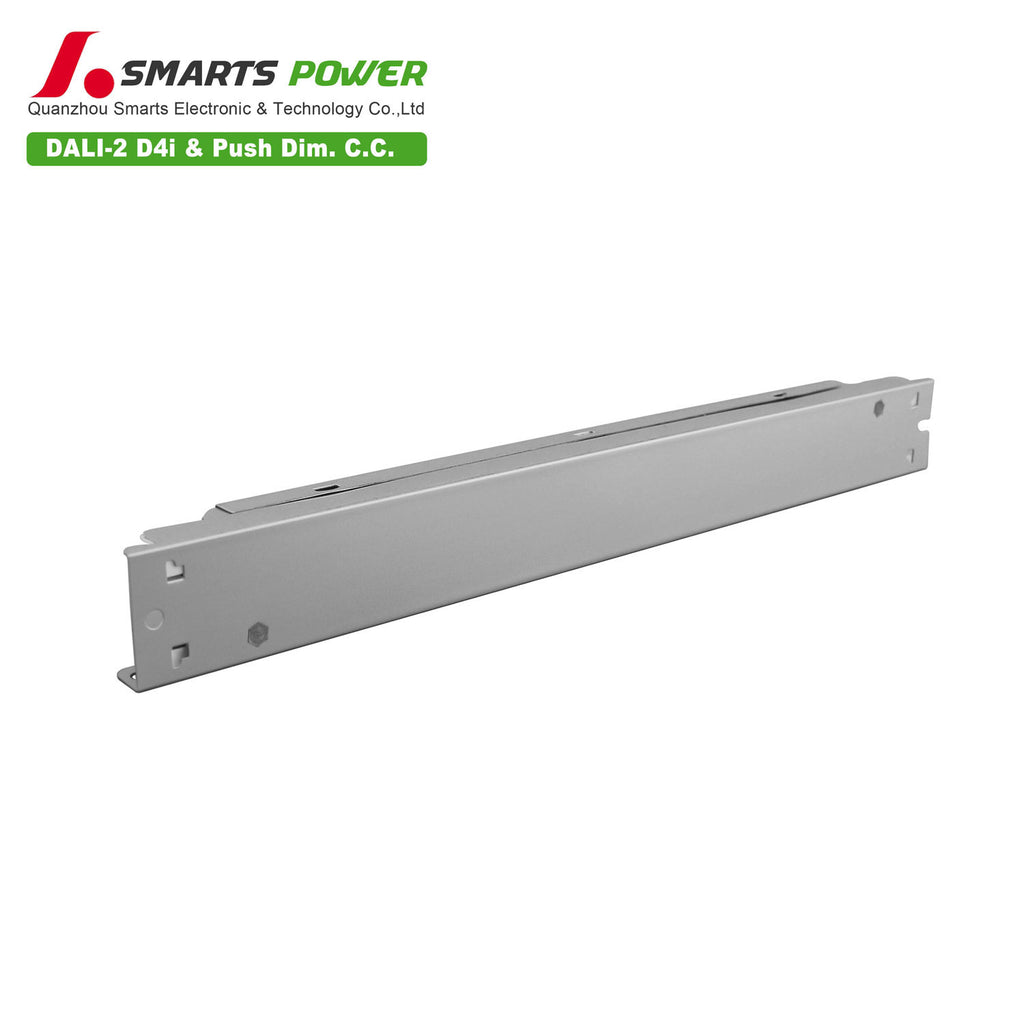

DALI-2 D4i&PUSH Intelligent CC LED Driver 60W 160-1600mA (Metal housing)
160ma-1600ma constant current 60W DALI-2 D4I dimmable led power supply. Working efficiency up to 89%. Built-in NFC smart programming module, can fine-tune the output voltage and set the address code through PRONFC. Comply with global safety lighting regulations
| Model | SMT-DI060W160-D4PI | ||||||||||
| Certificate | CE / RoHS / Reach | ||||||||||
| Output | Rated current | 0.7 | 0.8 | 0.9 | 1 | 1.1 | 1.2 | 1.3 | 1.4 | 1.5 | 1.6 |
| DC Voltage | 12-54 | 12-54 | 12-54 | 12-54 | 12-54 | 12-50 | 12-46 | 12-43 | 12-40 | 12-38 | |
| Rated power | 37.8 | 43.2 | 48.6 | 54 | 59.4 | 60 | 59.8 | 60.2 | 60 | 60.8 | |
| Voltage Tolerance | ±0.5V | ||||||||||
| Voltage Regulation | ≤0.5% | ||||||||||
| Line Regulation | <1% | ||||||||||
| Load Regulation | <0.1% | ||||||||||
| Input | Voltage Range | 100-277VAC | |||||||||
| Frequency Range | 47 - 63Hz | ||||||||||
| Power Factor @ full load | PF≥0.94 | ||||||||||
| THD(Typ.) @ full load | ≤15% | ||||||||||
| Efficiency @ full load | ≥88%@120VAC 60Hz ≥89%@230VAC 50HZ ≥89%@277VAC 60HZ | ||||||||||
| No load power (Max) | <1W | ||||||||||
| Standby power (Max) | <0.5W | ||||||||||
| AC Current (Max.) | 0.75A | ||||||||||
| Inrush Current (Typ.) | 66.0A, 220us@50%Ipeak2770V 55.2A, 98us@50%Ipeak230V 28.7A, 204us@50%Ipeak120V | ||||||||||
| Leakage current | <0.5mA | ||||||||||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| Over temperature | Ambient temp. over 50±5℃, output current will be reduced to 50%;Ambient temp.over 60±5℃, output will be off; Ambient temp.Over 45±5℃,recovers automatically after temp. drops. | ||||||||||
| Environment | Working TEMP | ’-40~+60℃ (see below derating curve) Tc point temperature (Ta=40 ℃)89℃ | |||||||||
| Working Humidity | 20 -90%RH non-condensing | ||||||||||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH | ||||||||||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||||||||||
| Vibration | 10~500Hz, 2G 10min./1 cycle, period for 60min. each along X,Y,Z axes | ||||||||||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13(EU) & UL8750 UL1310(US) | |||||||||
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) | ||||||||||
| I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) | |||||||||||
| Strobe test standard | Compliant with IEEE 1789 without strobe | ||||||||||
| Harmonics test standard | Compliant with IEC/EN 61000-3-2 | ||||||||||
| lightning surge | DM:2KV CM:4KV | ||||||||||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | ||||||||||
| EMC Emission | EN55015 EN61000-3-2,3(EU) & FCC Part15 Subpart B; ANSI C63.4:2014(US) | ||||||||||
| Others | Net Weight | 0.3KG | |||||||||
| Dimension | 314*300*217mm (L*W*H) | ||||||||||
| Packing | ***pcs /CTN | ||||||||||
| Notes | 1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. | ||||||||||
| 2. To extend the driver's using life , please reduce the loading at lower input voltage . | |||||||||||
1. Input with Gray terminals 6P: Live Wire AC (L), Neutral Wire AC(N), Ground wire(G).
2. Output LED SEC with Red/Black terminals 4P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.
3. Dimming Gray terminals 6P: When DALI dimming, signal dimming DA+, DA-/PUSH N and PUSH L connected to the BUS of the DALI Master.
4. Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
5. This product is also suitable for temperature control. It is recommended to use NTC for external temperature sensors, and the resistance value when triggering protection is between 1 Ω -20K Ω.
Warm tips:
Suggested wire diameter: Input: 0.2mm2-1.5mm2/AWG24-16.
