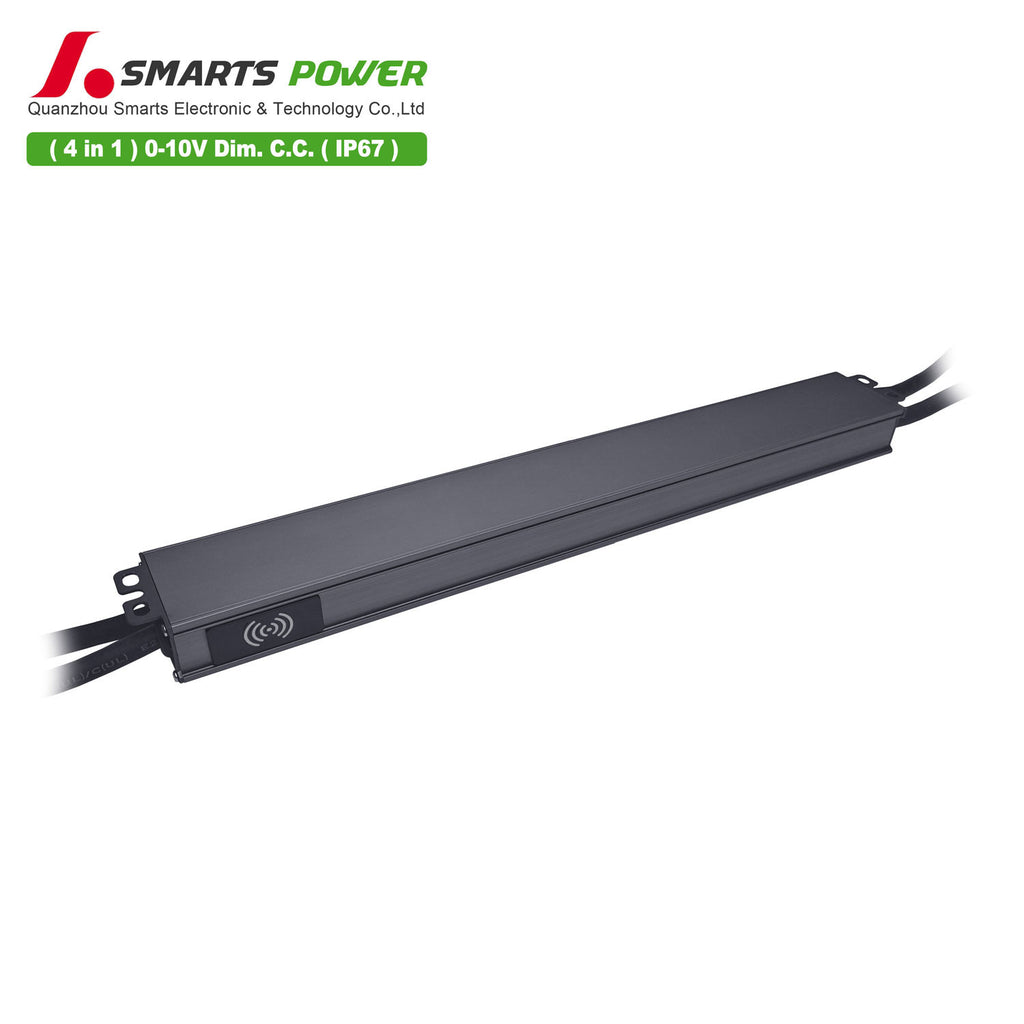

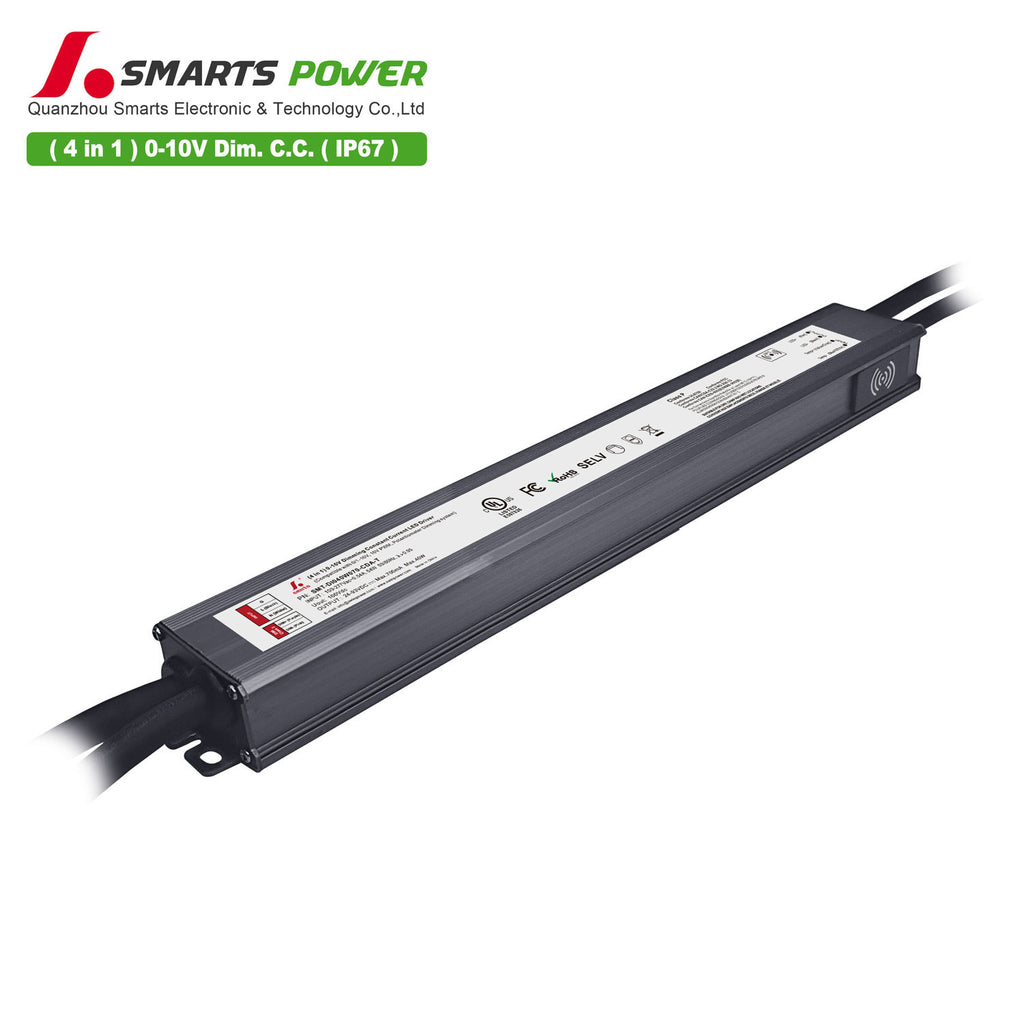

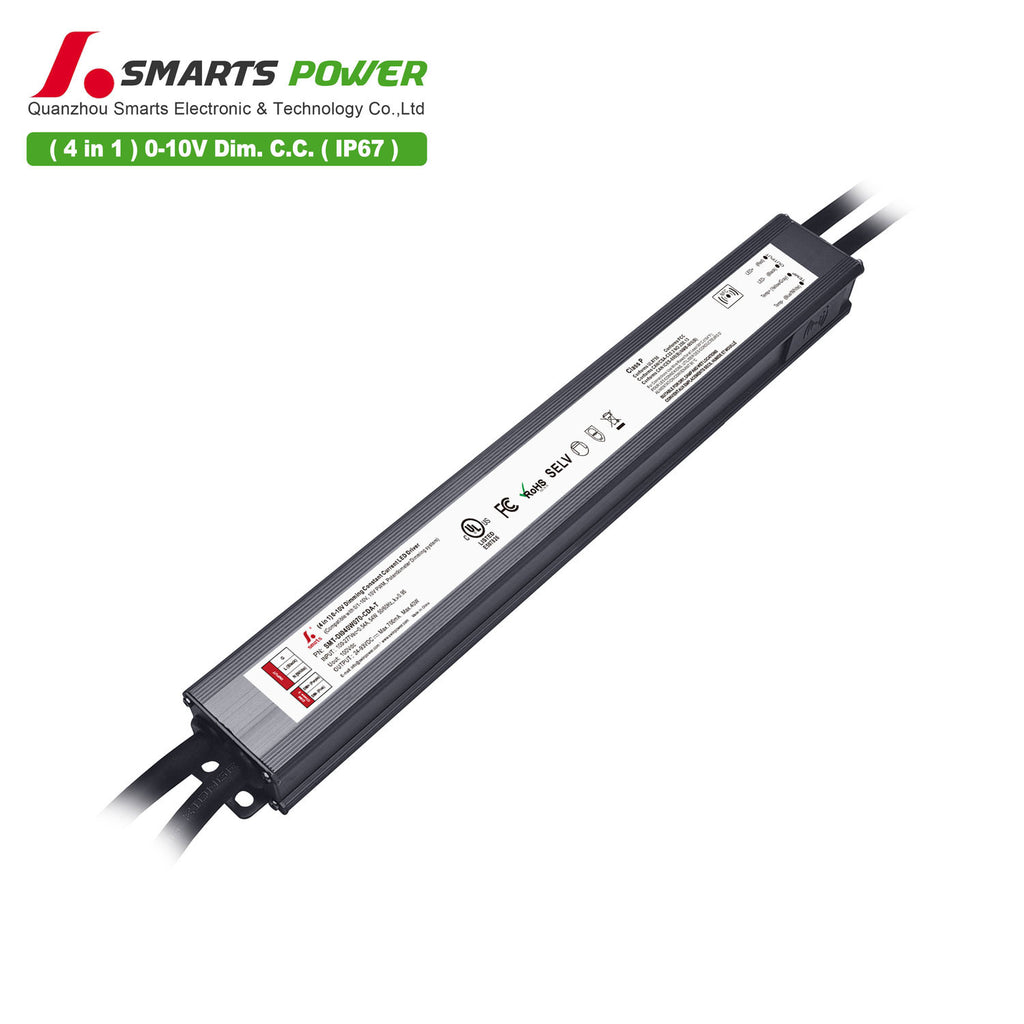

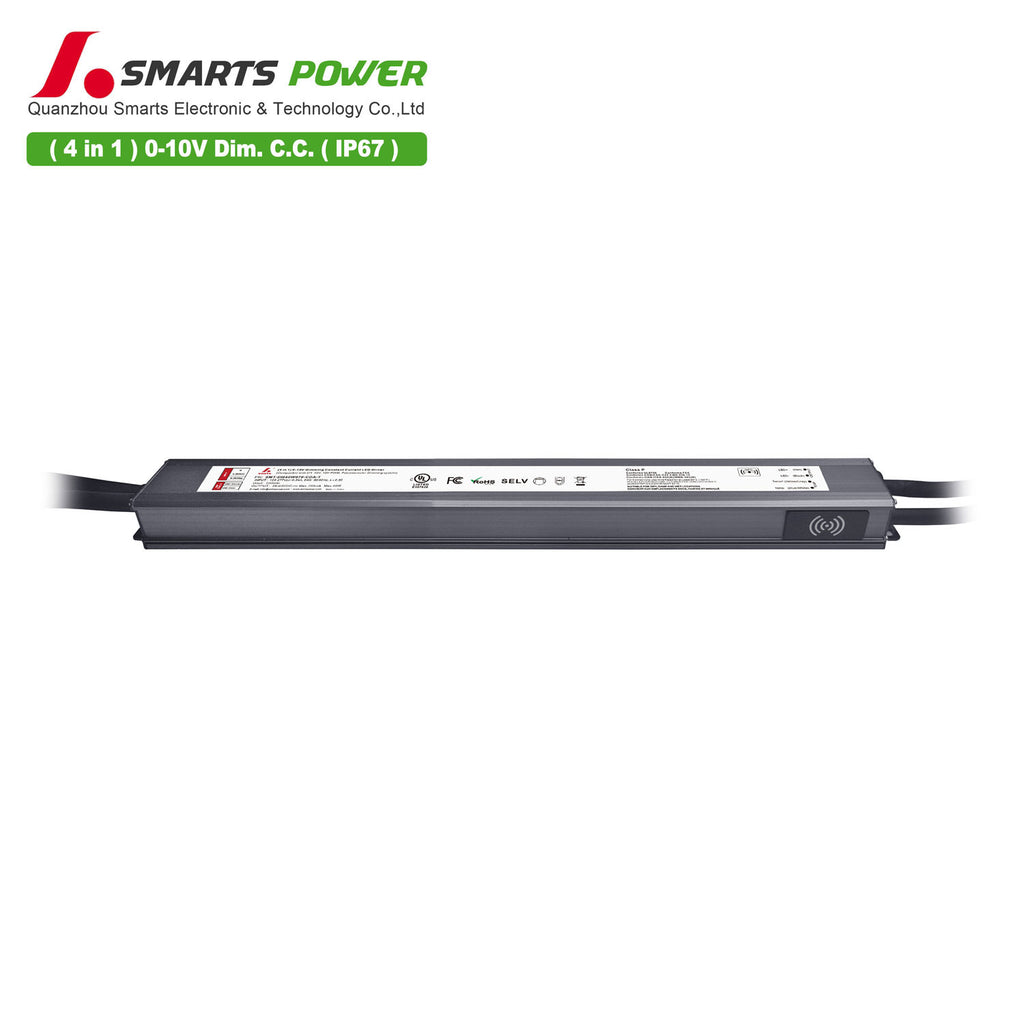

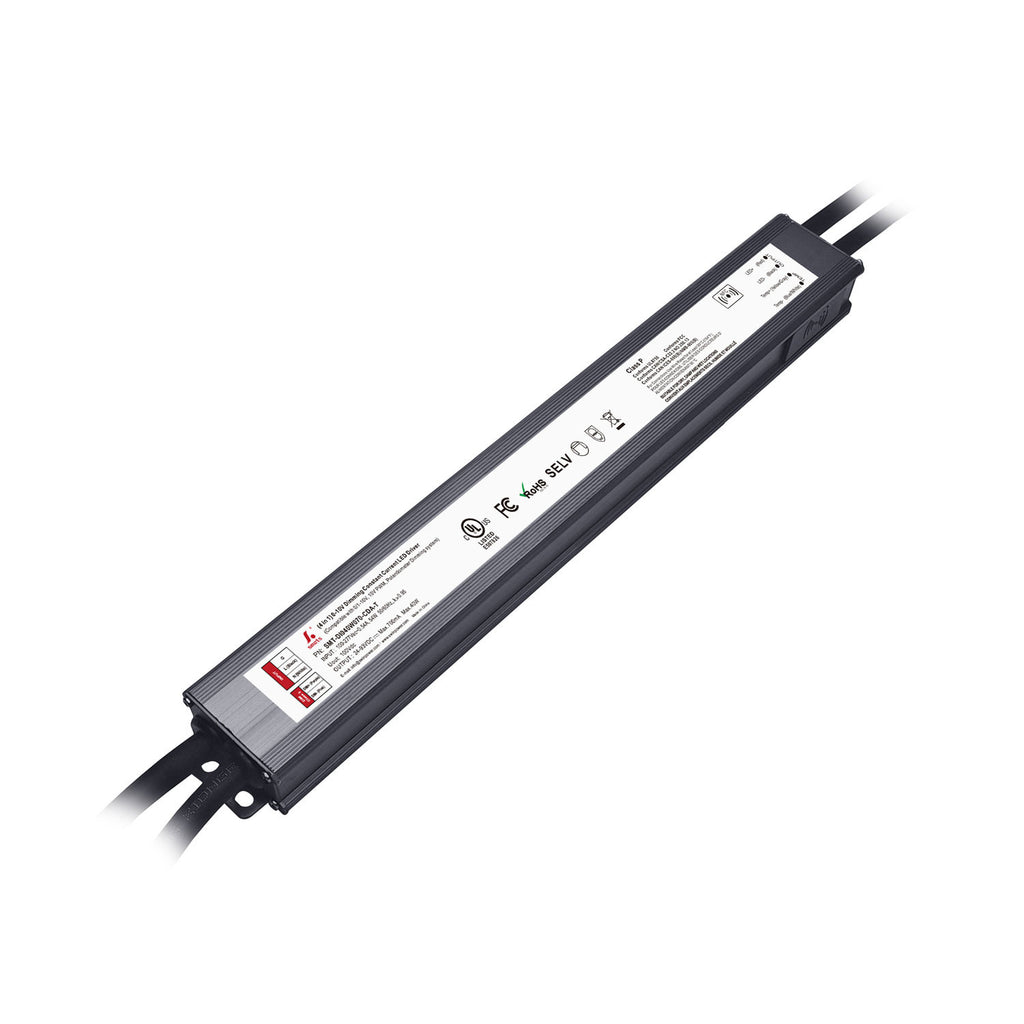

0-10V Dimmable Intelligent CC LED Driver 40W 70-700mA (IP67)
SMT-DI040W070-CDA
0-10V Dimmable LED Driver
SMARTS
40w constant current 0 10v dimmable led driver aluminum housing design, waterproof grade ip67, good heat dissipation, suitable for indoor and outdoor humid space lighting project installation and u...
40w constant current 0 10v dimmable led driver aluminum housing design, waterproof grade ip67, good heat dissipation, suitable for indoor and outdoor humid space lighting project installation and use. With 7 years warranty
| Model | SMT-DI040W070-CDA-T | SMT-DI040W140-CDA-T | |
| Certificate | UL/FCC/CE /ClassP/TYPE HL/SELV/ RoHS / Reach/ENEC/ICES/UKCA | ||
| Output | Rated current | 70mA-700mA | 140mA-1400mA |
| DC Voltage | 24-93VDC | 12-54VDC | |
| Rated power | 40Wmax | ||
| Voltage Tolerance | Output current ± 20mA | ||
| Line Regulation | <0.1% | ||
| Load Regulation | <0.1% | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor (Typ.) | >0.99@120VAC 60Hz >0.98@230VAC 50HZ >0.95@277VAC 60HZ | ||
| No load power (Max) | <1.5W | ||
| Standby power (Max) | <0.5W | ||
| THD(Typ.) @ full load | <11%@120VAC <9%@230VAC <10%@277VAC | ||
| Efficiency @ full load | >87.0%@120VAC 60Hz >88.3%@230VAC 50HZ >88.7%@277VAC 60HZ |
>85.4%@120VAC 60Hz >86.8%@230VAC 50HZ >86.8%@277VAC 60HZ |
|
| AC Current (Max.) | 0.5A@100VAC 60Hz | ||
| Inrush Current (Typ.) | 28.8A, 256us@50%Ipeak@120V 55.2A, 130us@50%Ipeak@230V 66.5A, 259us@50%Ipeak@277V | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | |
| Over voltage | Hiccup or constant power mode, reboots automatically after fault condition is removed | ||
| Over temperature | Ambient temp. over 55± 5℃, output current will be reduced to 50%; Ambient temp.Over 40 ± 5℃,recovers automatically. Ambient temp.over 75± 5℃, output current will be reduced to 0%; Ambient temp.Over 40 ± 5℃,recovers automatically. |
||
| Environment | Working TEMP | -40~+50℃ (see below derating curve) | |
| Working Humidity | 20 -90%RH non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | ||
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13(EU) & UL8750 (US) | |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||
| Strobe test standard | IEEE 1789 Flicker free | ||
| Surge Immunity Test | AC Power Line:Differential Mode 2 kV, Common Mode 4 kV | ||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | ||
| EMC Emission | EN55015 EN61000-3-2,3(EU) & FCC Part15 Subpart B; ANSI C63.4:2014(US) | ||
| Others | Net Weight | 480g | |
| Dimension | 314.7*38.5*23.6mm (L*W*H) | ||
| Packing | 55*31*350 30pcs /CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. | ||
| 2. To extend the driver's using life, please reduce the loading at lower input voltage . | |||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | |||
MCB recommendation
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type(breaking capacity:6KA) |
10A | 15 |
| 13A | 19 | |
| 16A | 24 | |
| 20A | 30 | |
| 25A | 37 | |
| When the input voltage is 230Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type(breaking capacity:6KA) |
10A | 29 |
| 13A | 38 | |
| 16A | 47 | |
| 20A | 59 | |
| 25A | 66 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type(breaking capacity:6KA) |
10A | 34 |
| 13A | 44 | |
| 16A | 54 | |
| 20A | 68 | |
| 25A | 85 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50°C
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
Mechanical Specification
| LN20 | |
| Input wire | Black(L) White(N) Green(G)(3*18AWG) |
| Output wire | V+(Red) V-(Black)(2*18AWG) |
| Dimming wire | Purple(DIM+) Pink(DIM-)(2*18AWG) |
| External temperaturewire | Yellow gray(TEMP+) Blue white(TEMP-)(2*18AWG) |
| Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged. | |
Dimming Operation and Connecting Diagram:
Note：
1. The model name SMT-DI040WXXX-CDA means that there is no lamp temperature detection, so there is no corresponding wiring for the LED driver.
2. The model name SMT-DI040WXXX-CDA-T means that there is lamp temperature detection.
