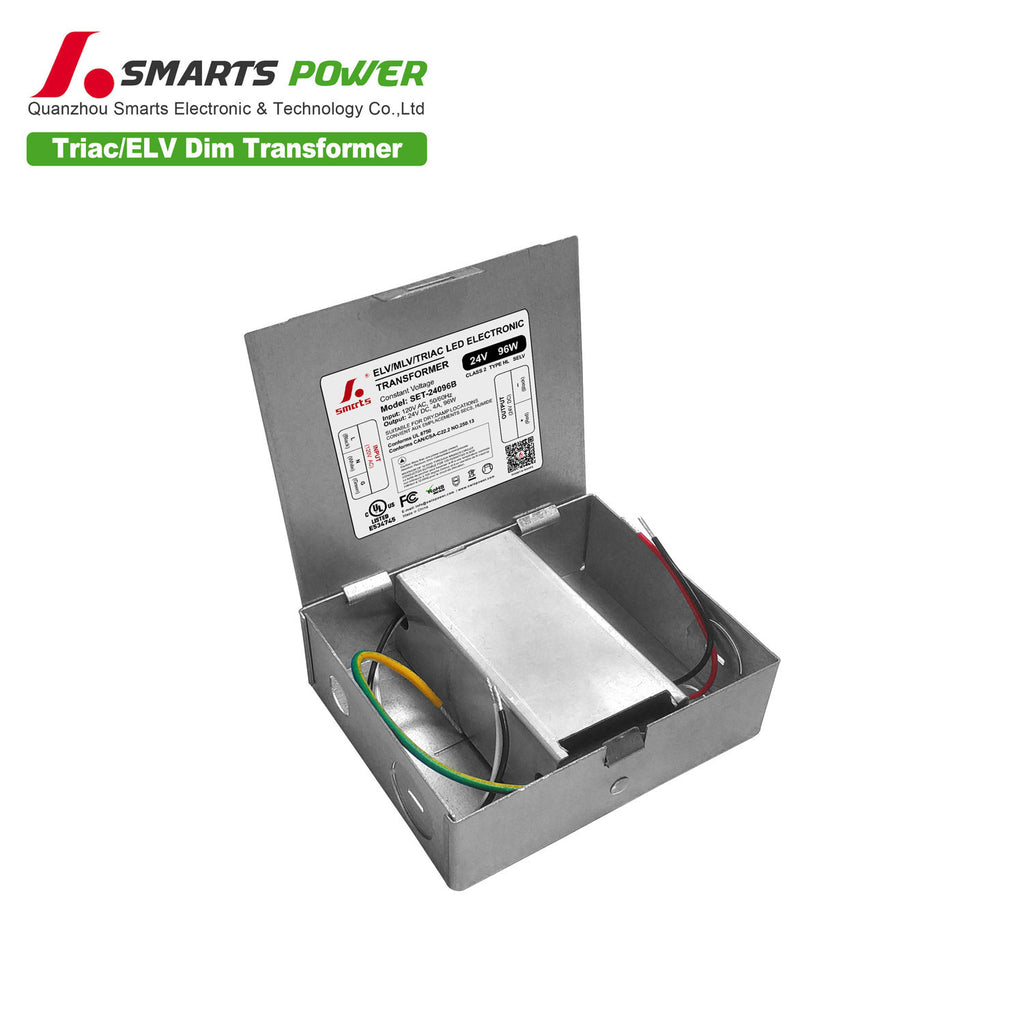

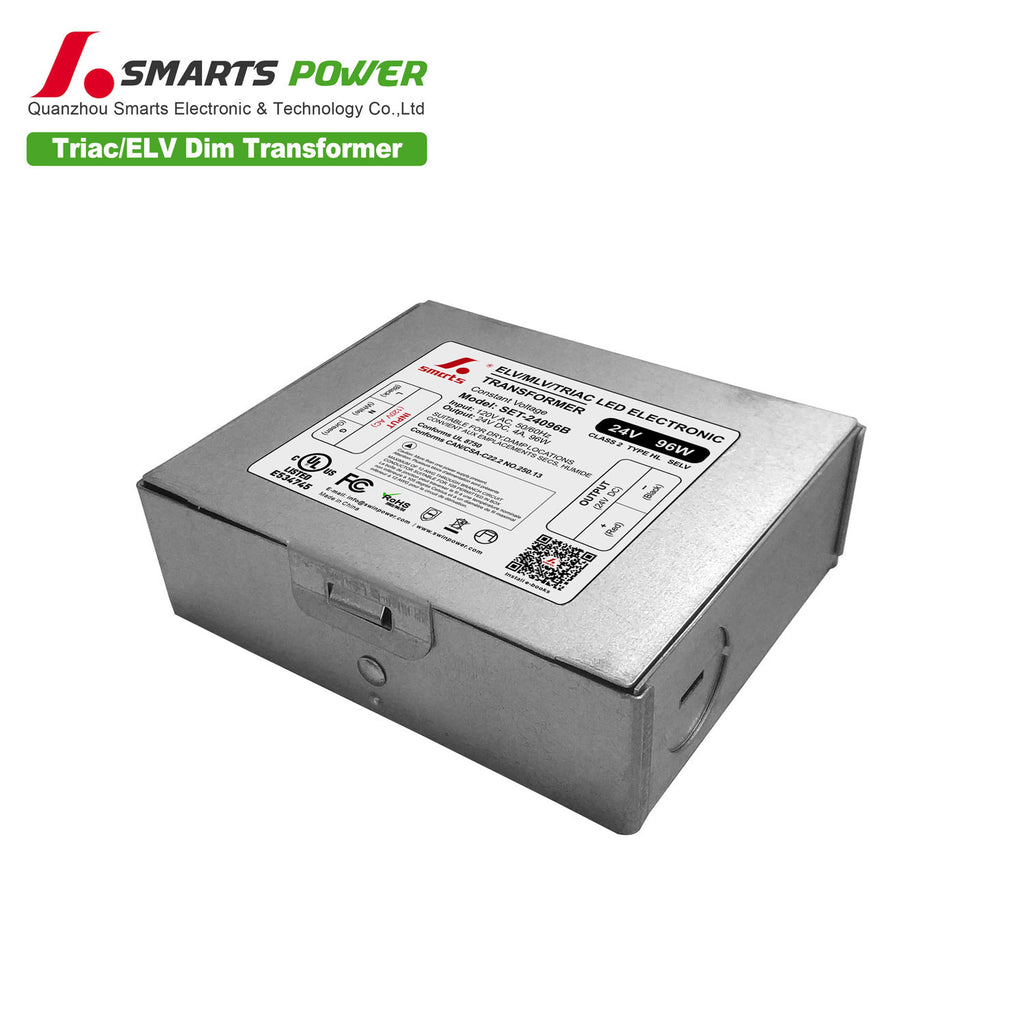

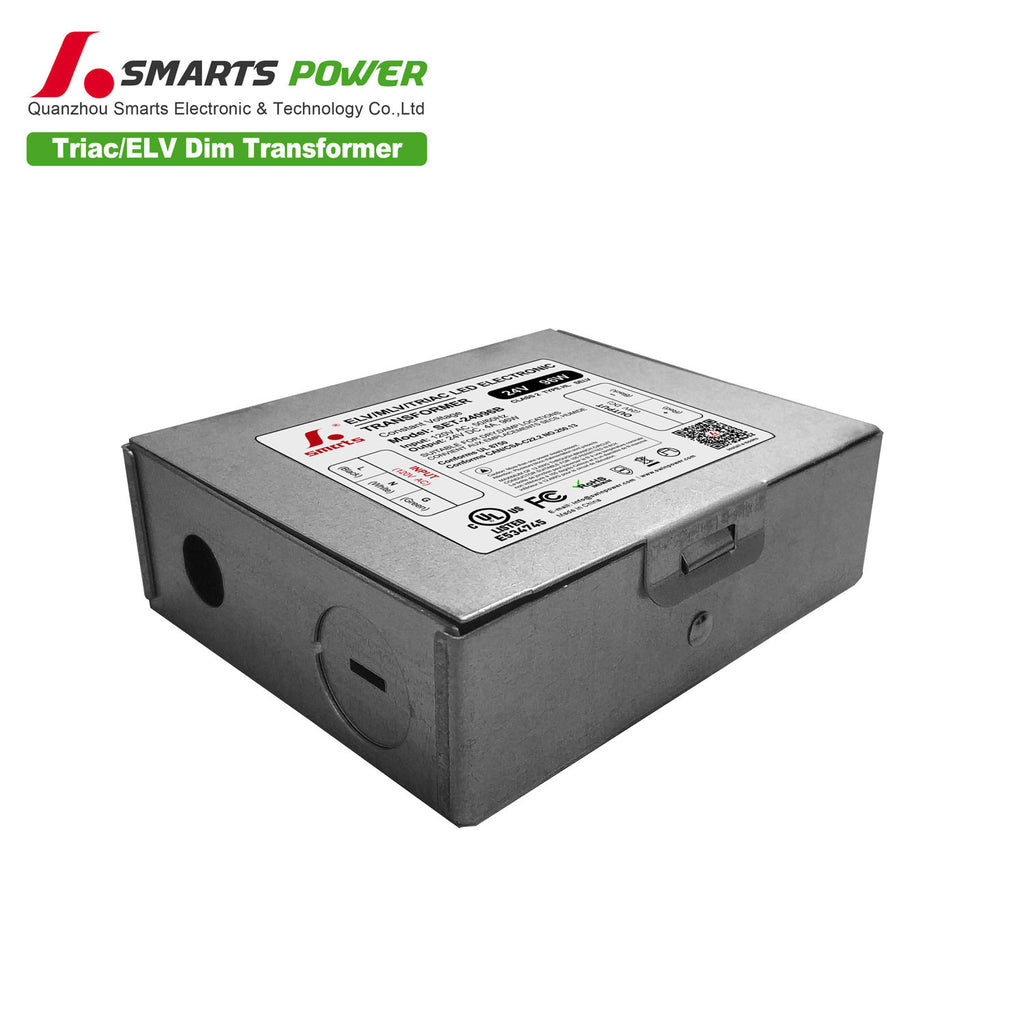

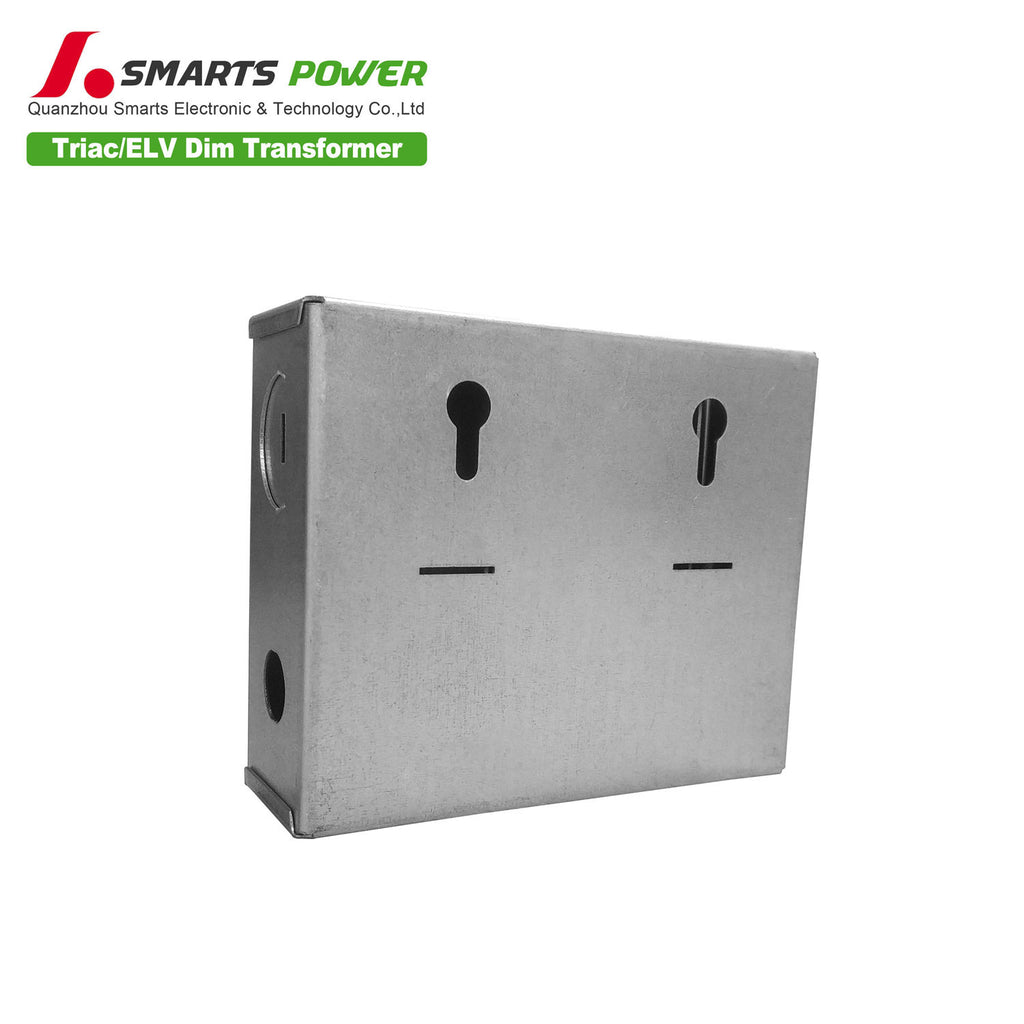

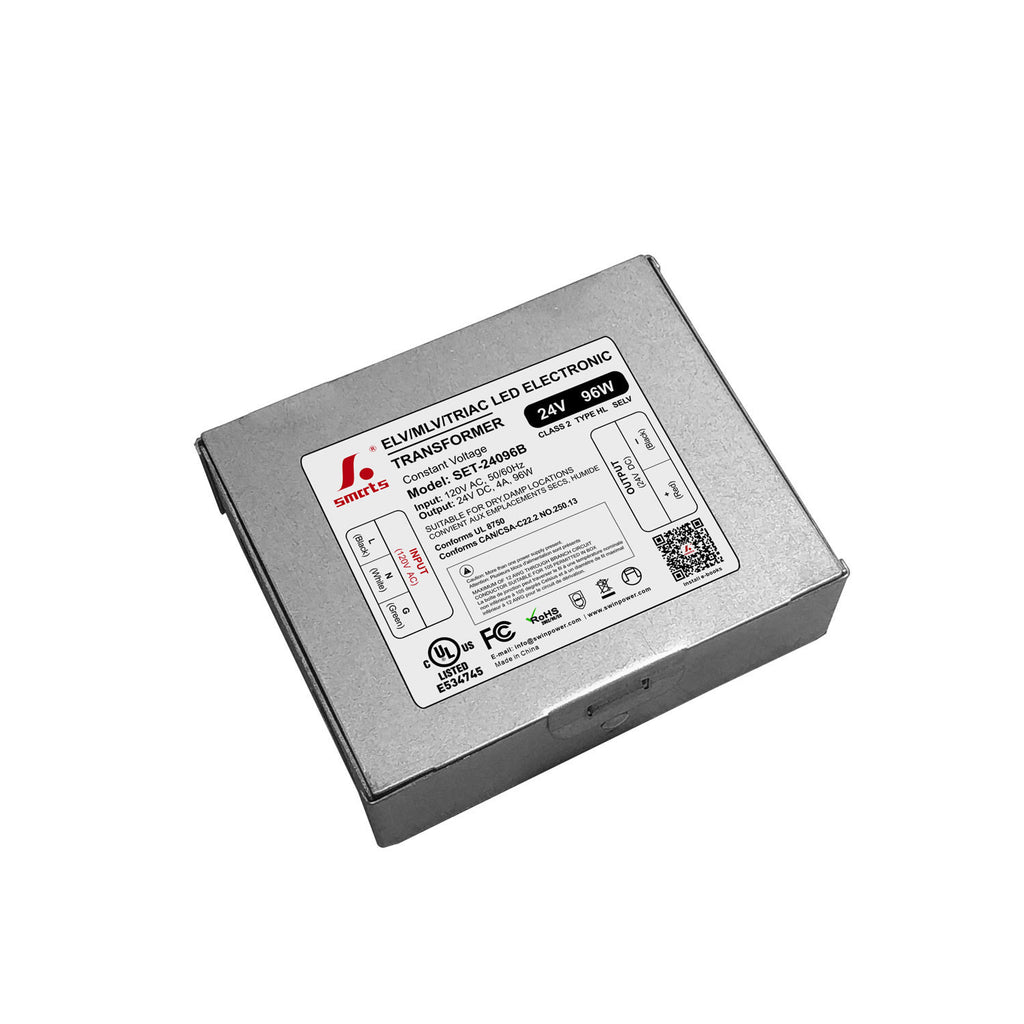

ELV/Triac Dimmable Electronic Transformer 96W (VTB)
96W 24V triac dimmable led electronic transformer with 120vac input, operating mode constant voltage, working efficiency up to 86%, aluminum housing, quick heat dissipation and easy installation, overload and short circuit protection design, 5 year warranty
Model Number | SET-24096B |
Output Type | |
Reted Power | 96W |
Reted Voltage | 24V |
Reted Current | 4A |
Voltage Tolerance | ±0.5V |
Voltage Regulation | ±0.5% |
Load Regulation | ±1% |
Input Type | |
Voltage Range | 120V |
Frequency Range | 47-63HZ |
Efficiency(Typ.) | 86%@120VAC |
Total Harmonic Distortion | THD< 20%(@100% load) |
Power Factor(typ.) | 0.98@120VAC |
AC Current(Typ.) | 0.92A |
Inrush Current(Typ.) | - |
Leakage Current | <0.5mA/ 120VAC |
PROTECTION | |
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. |
Over Load | Hiccup mode, recovers automatically after fault condition is removed. |
ENVIRONMENT | |
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
Working humidity | 20 ~ 95% RH non-condensing |
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
Temp .coefficient | ±0.03%/℃(0~50℃) |
Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
SAFETY & EMC | |
Safety standards | UL8750, Class 2 |
Safety standards | I/P-O/P:1.88KVAC |
OTHERS | |
Dimension | 4.17x3.50x1.31 inch (L*W*H) |
Packing | - |
