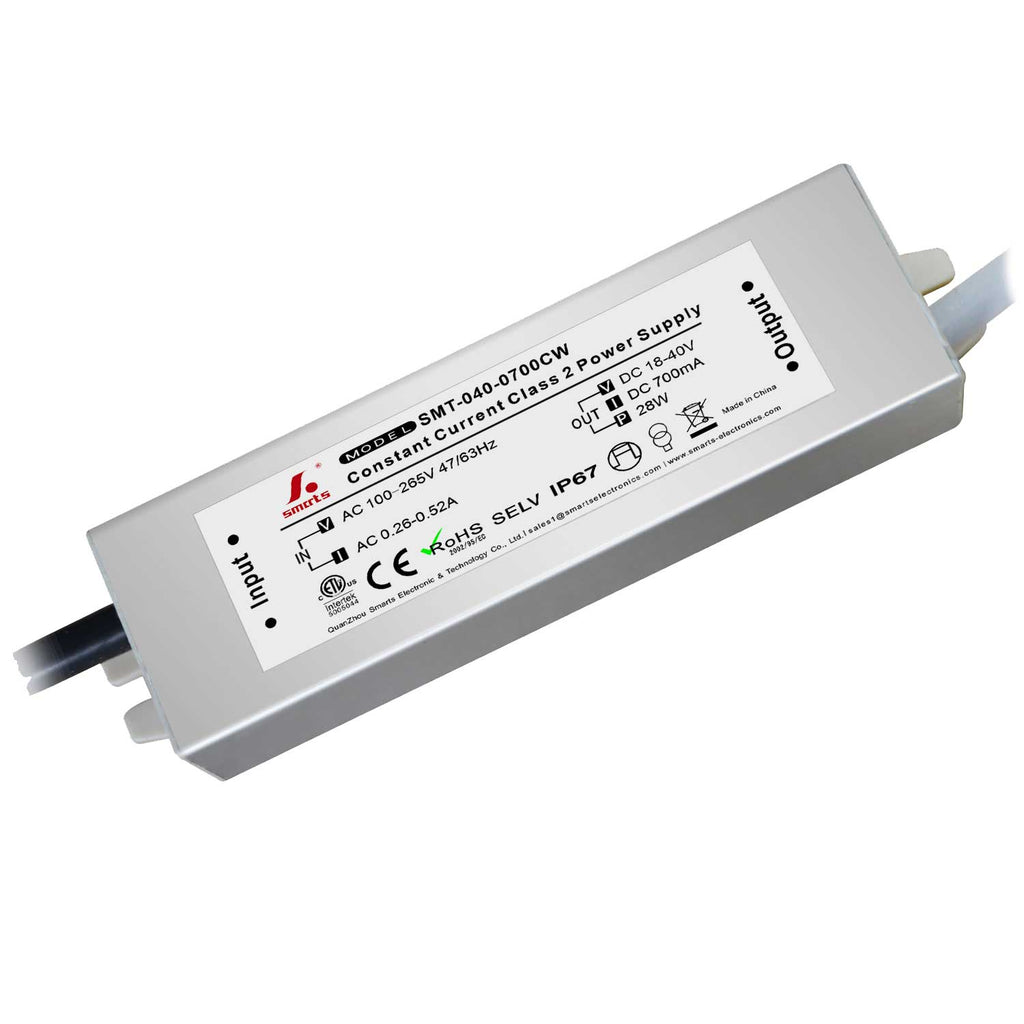

Waterproof Constant Current LED Driver 28W

SMT-040-0700CW
Non-dimmable LED Driver
SMARTS
smarts power CW series constant current waterproof led driver700ma 28W, plastic shell design, light and small, easy to install, size only 115*30*22mm, ETL certification complies with global safety ...
$40.00
smarts power CW series constant current waterproof led driver700ma 28W, plastic shell design, light and small, easy to install, size only 115*30*22mm, ETL certification complies with global safety lighting regulations, 2-year warranty
MODEL SMT-040-0500CW SMT-060-0350CW SMT-030-0700CW SMT-040-0700CW
OUTPUT DC VOLTAGE <45V <45V <45V <40V
RATED CURRENT 500mA 350mA  700mA 700mA
VOLTAGE RANGE 25-40V 30-60V 20-30V 18-40V
RATED POWER 20W 20W 21W 28W
RIPPLE&NOISE(max)
CURRENT TOLERANCE ±5% ±5% ±5% ±5%
LINE REGULATION ±5% ±5% ±5% ±5%
LOAD REGULATION ±5% ±5% ±5% ±5%
INPUT VOLTAGE RANGE 90-265VAC 90-265VAC 90-265VAC 90-265VAC
FREQUENCY RANGE 47-63Hz 47-63Hz 47-63Hz 47-63Hz
POWER FACTOR(Typ.) ﹥0.7 ﹥0.7 ﹥0.7 ﹥0.7
EFFICIENCY(Typ.) ﹥82% ﹥82% ﹥82% ﹥82%
AC CURRENT(Typ.) 0.15A/110V,220VAC 0.15A/110V, 220VAC 0.15A/110V, 220VAC
PROTECTION SHORT CIRCUIT Protection type:Hiccpe mode,recovers automatically after condition is removed
OVER CURRENT Protection
OVER HEAT Protection
ENVIRONMENT WORKING TEMP. -30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH,IP67
SAFETY&EMC SAFETY STANDARDS EN61347-1;EN61347-2-13;SELV
WITHSTAND VOLTAGE I/P-O/P:2KVAC  I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards EN55015;EN61000-3-2;EN61000-3-3;EN61547;EN61000-4-2,3,4,5,6,8,11;
NOTE 1.All parameters NOT specially mentoned are measured at 110V, 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.


Waterproof Constant Current LED Driver 28W
