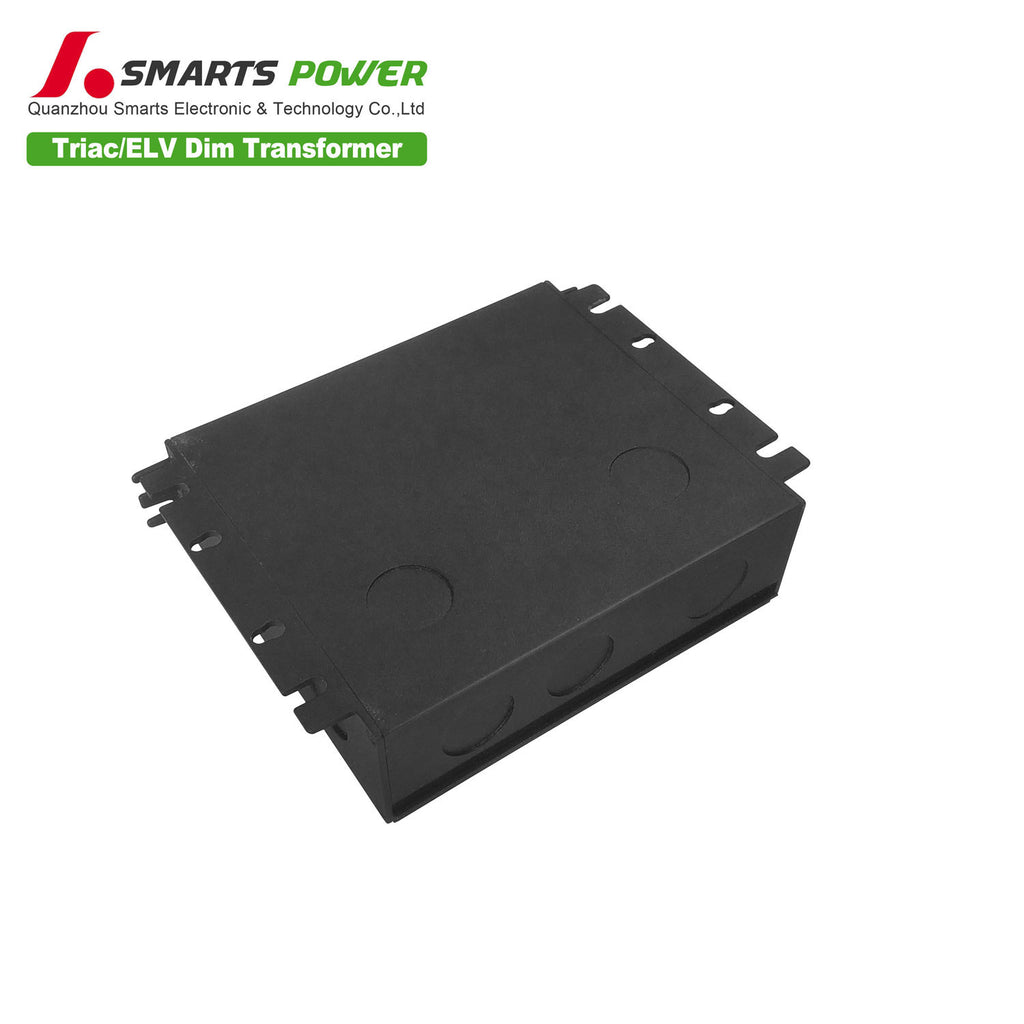

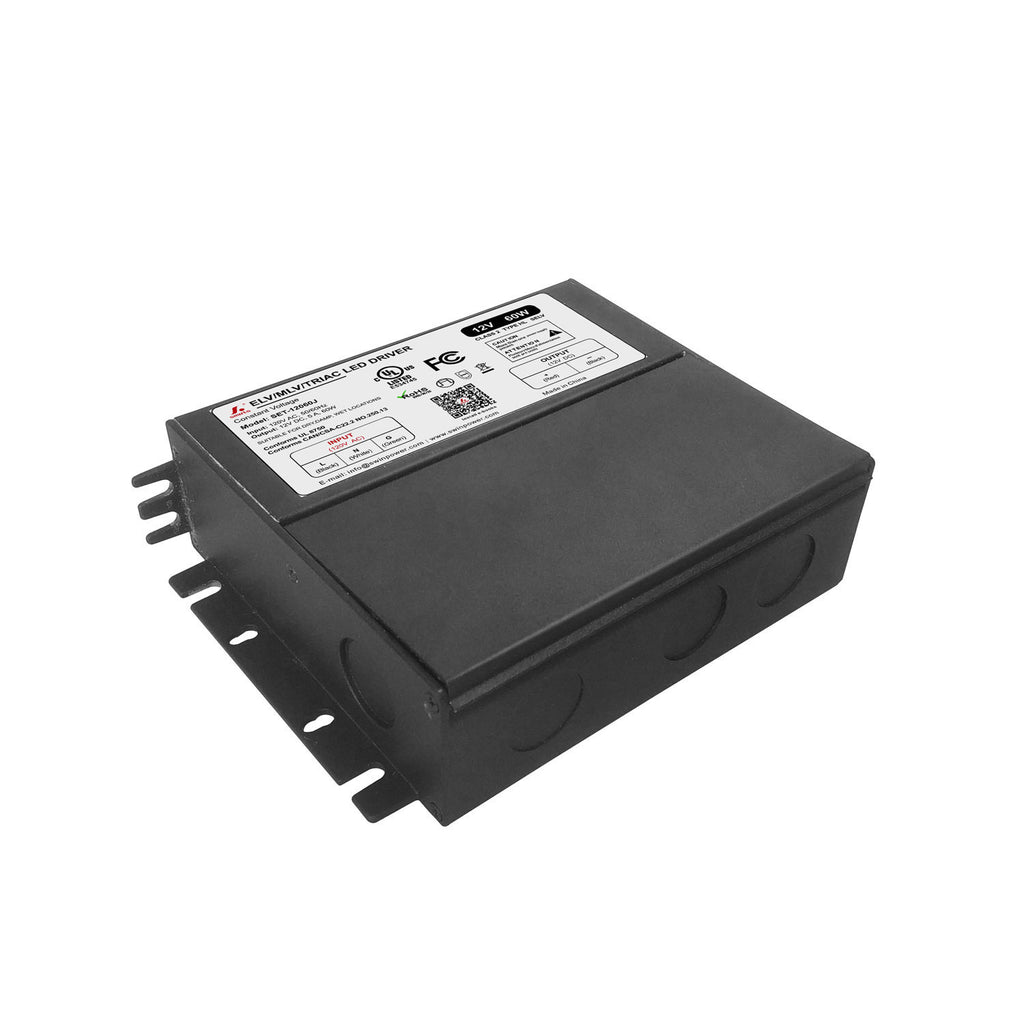

ELV/Triac Dimmable J-BOX Electronic Transformer 60W

SET-12060J
Triac Dimmable LED Driver
Smarts Power
12v/24v 60W triac dimmable led electronic transformer UL certification Class 2 Type HL, integrated design of junction box and power supply, small size 128*120.5*42mm easy and fast connection, Suita...
Output Voltage*
Size*
Bulk Savings*
$65.52
$65.52

12v/24v 60W triac dimmable led electronic transformer UL certification Class 2 Type HL, integrated design of junction box and power supply, small size 128*120.5*42mm easy and fast connection, Suitable for residential and commercial lighting projects

Part Number SET-12060J SET-24060J
Output Spec.:
Reted Power 60W 60W
Reted Voltage 12V 24V
Reted Current 5A 2.50A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
Input Spec.:
Voltage Range 120V
Frequency Range 47-63HZ
Efficiency(Typ.) 87%@120VAC
Total Harmonic Distortion THD< 20%(@100% load)
Power Factor(typ.) 0.98@120VAC
AC Current(Typ.) 0.58A
Inrush Current(Typ.) -
Leakage Current <0.5mA/ 120VAC
PROTECTION:
Short Circuit Hiccup mode, recovers automatically after fault condition is removed.
Over Load Hiccup mode, recovers automatically after fault condition is removed.
ENVIRONMENT:
Working Temp. Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC:
Safety standards UL8750, Class 2
Safety standards I/P-O/P:1.88KVAC
OTHERS:
Dimension 5.03x4.74x1.65 inch (L*W*H)
Packing -


constant voltage ELV/Triac Dimmable J-BOX Electronic Transformer 60W

 Mounting

1.This driver must be installed in a well-ventilated area free from explosive gases and vapors. Air circulation is essential for heat dissipation.

2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).

3.Do not mount driver close to or above objects that can radiate heat. Vertical mounting is highly recommended.

4.Select an appropriate location that is able to support the weight of the product.

5.Use the mounting tabs on the left and right side of the driver to mount the product.

constant voltage ELV/Triac Dimmable J-BOX Electronic Transformer 60WConnectionPreparation

constant voltage ELV/Triac Dimmable J-BOX Electronic Transformer 60W

InputConnections & Grounding

constant voltage ELV/Triac Dimmable J-BOX Electronic Transformer 60W

OutputConnections

constant voltage ELV/Triac Dimmable J-BOX Electronic Transformer 60W

Wiring Diagram

constant voltage ELV/Triac Dimmable J-BOX Electronic Transformer 60W
