277V 0-10V Dim J-BOX Driver 60W
SMT-012-060VDH
0-10V Dimmable LED Driver
SMARTS

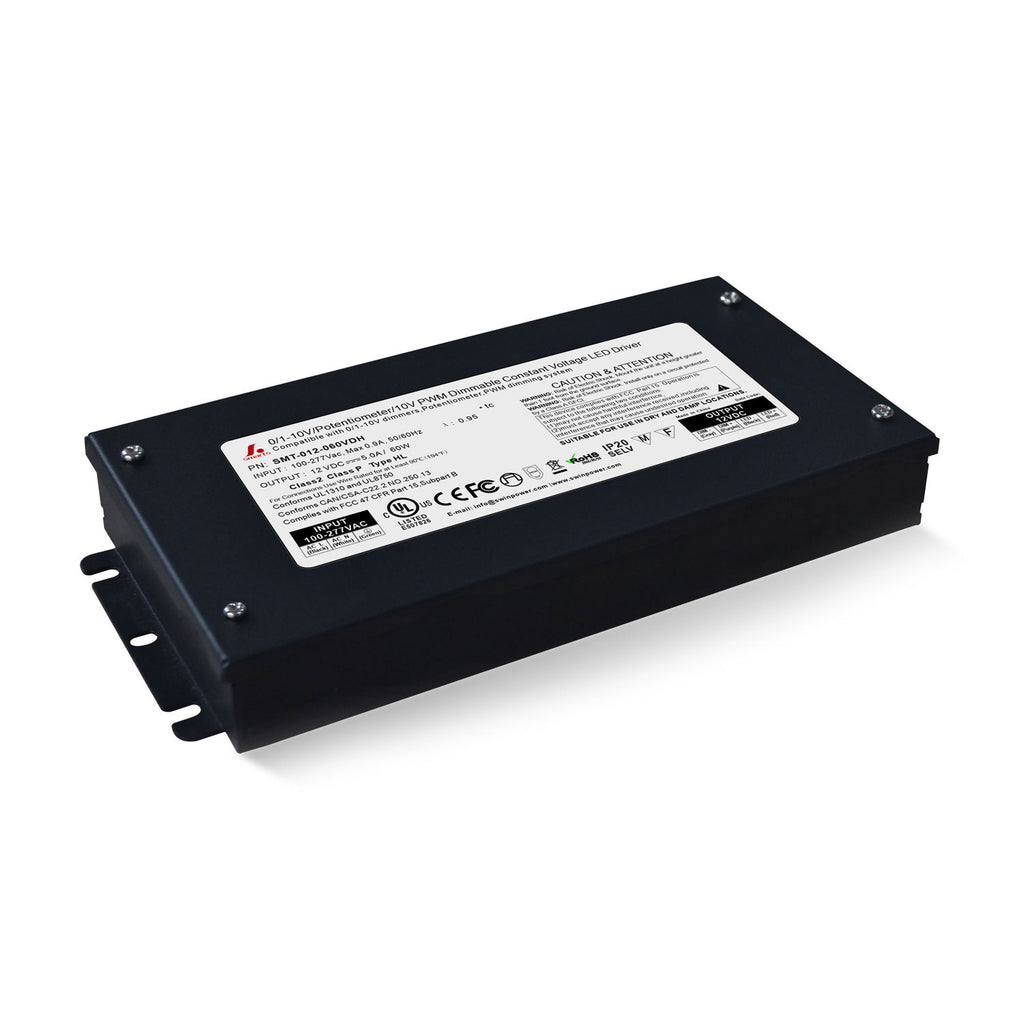

SMT-012-060VDH is a 12v 60w led driver 0 10v dimming power supply, The non-waterproof version of the iron box is suitable for indoor projects, Passed UL certification, suitable for use in the US an...
SMT-012-060VDH is a 12v 60w led driver 0 10v dimming power supply, The non-waterproof version of the iron box is suitable for indoor projects, Passed UL certification, suitable for use in the US and Canadian markets. The warranty period is seven years,
| model | SMT-012-060VDH (1.0 version) SMT-012-060VDHV2 (2.0 version) |
SMT-024-060VDH (1.0 version) SMT-024-060VDHV2 (2.0 version) |
|
| Output | DC Voltage | 12V | 24V |
| Voltage Accuracy | ±0.5V | ±0.5V | |
| Voltage Regulation | ±0.5% | ||
| Rated current | 5.00A | 2.50A | |
| Load Regulation | ±1% | ||
| Rated power | 60W | 60W | |
| Input | Voltage Range | 100-277V AC | |
| Frequency Range | 47~63HZ | ||
| THD(Typ.)@ full load | <20% | ||
| Power Factor ( Typ.) | 0.98@120VAC 0.95@277VAC | 0.98@120VAC 0.95@277VAC | |
| Full Load Efficiency(Typ.) | >83% | >86% | |
| AC Current(Typ.) | 0.9A/110VAC | ||
| Inrush Current (Typ.) | 14A, 50%, 780us | ||
| Leakage current | <0.50mA | ||
| Protection | Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | |
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | ||
| Over Loading | ≤120% Hiccup mode,recovers automatically after fault condition is removed | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~90%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes | ||
| Safety& EMC | Safety standards | UL8750+UL1310 | |
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC Part 15 B | ||
| Others | Weight | About 1.1Kg | |

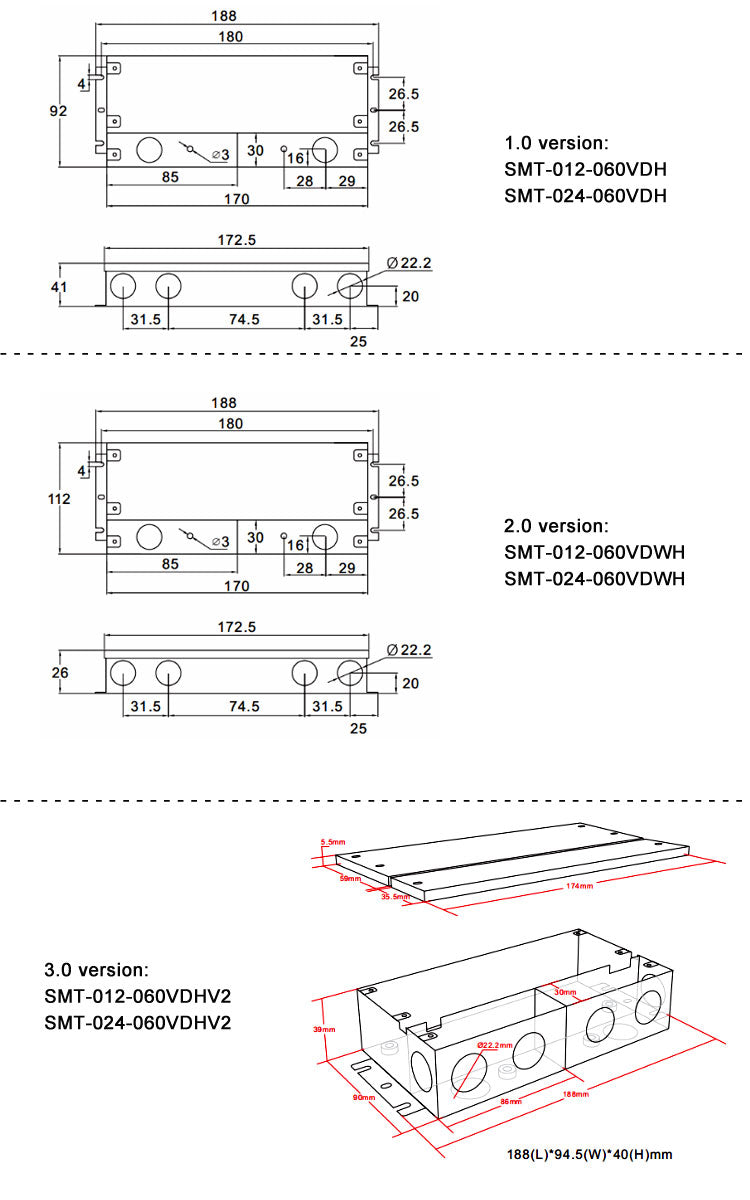

| Size | 1.0 version: 188*92*26mm(L*W*H) / 2.0 version: 188*94.5*40mm(L*W*H) | ||
| packing | 305*200*180mm / 10PCS/CTN (L*W*H) | ||
| Notes | 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. | ||
| 2. To extend the driver's using life ,please reduce the loading at lower input voltage. | |||
