277V 0-10V Dim Driver 30W(Standard Size)

SMT-012-030VDHW
0-10V Dimmable LED Driver
SMARTS
SMARTS VDHW series is input 100-277v 0 10v dimmable selv 12V 30w small led driver power supply,The shell is ip20 plastic non-waterproof shell,Suitable for installation in indoor dry projects.It has...
Output Voltage*
SIZE*
Bulk Savings*
$50.00
$50.00

SMARTS VDHW series is input 100-277v 0 10v dimmable selv 12V 30w small led driver power supply,The shell is ip20 plastic non-waterproof shell,Suitable for installation in indoor dry projects.It has a 7-year warranty, has passed UL / FCC / ROHS / CE certification.

model SMT-012-030VDHW SMT-024-030VDHW
Output DC Voltage 12VDC 24VDC
Voltage Accuracy ±5% ±5%
Rated current 1.66Amp 0.83Amp
Rated power 30W 30W
Voltage Regulation ±0.5%
Load Regulation ±1%
Input Voltage Range 100-277 VAC
Frequency Range 47~63HZ
Power Factor ( Typ.) 0.98@120VAC 0.98@277VAC 0.98@120VAC 0.98@277VAC
Full Load Efficiency(Typ.) >88% >89%
AC Current(Typ.) 0.53A/110VAC  /  0.33A/277VAC
Leakage current <0.50mA
Protection Short Circuit Hiccup mode, recovers automatically after fault condition is removed.
Over Loading ≤120% shut down o/p voltage, re-power on to recover
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment Working TEMP. -40~+60℃
Working Humidity 20~95%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z
Safety&EMC Safety standards Class P, Type HL, EN61347-1 EN61347-2-13
Withstand voltage I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION FCC Part 15 B
EMC IMMUNITY Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547 Alight industry level (surge4KV)
Others Weight About 0.25Kg
Size 155*54*20mm (L*W*H)
packing 40PCS/CTN (L*W*H)
Notes 1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted  pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3.  Tolerance:includes set us tolerance,line regulation and load regulation .

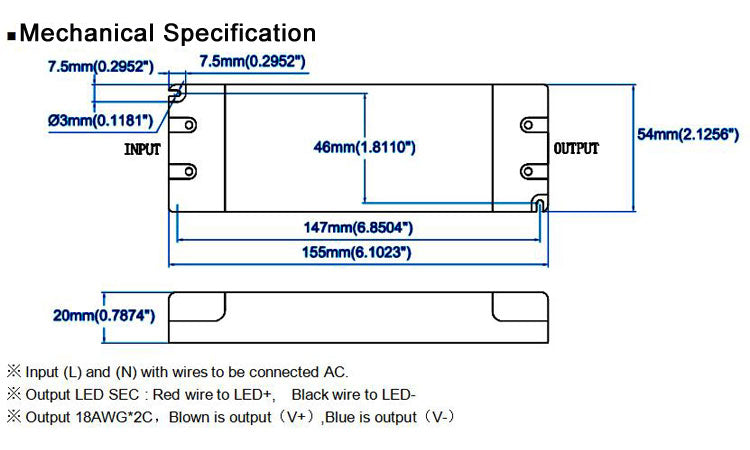

12Vdc 24Vdc 0-10v Dimmable Driver 30W

0-10V Dimmable Driver 30W Connecting Diagram
