5 in 1 Dim J-BOX LED Driver 60W
SMT-012-060VTDHV2
5 in 1 Dimmable LED Driver
SMARTS
Our SMT-012-060VTDHV2 5 in 1 60w dimmable led power supply driver 12v 5a The junction box and the driver power supply are integrated, making the installation convenient and quick. Can be used with ...
Our SMT-012-060VTDHV2 5 in 1 60w dimmable led power supply driver 12v 5a The junction box and the driver power supply are integrated, making the installation convenient and quick. Can be used with 60W LED modules to achieve 0-100% dimming effect without flickering
| model | SMT-012-060VTDHV2 | SMT-024-060VTDHV2 | |
| Output | DC Voltage | 12V | 24V |
| Rated Current | 5A | 2.5A | |
| Rated Power | 60W | 60W | |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47-63Hz | ||
| Power Factor(Typ.)@ full load | 0.98@120VAC 0.95@277VAC | 0.98@120VAC 0.95@277VAC | |
| THD(Typ.)@ full load | <20% | ||
| Efficiency(Typ.)@ full load | 83% @120Vac 85%@277Vac | 83% @120Vac 84%@277Vac | |
| AC Current(Max.) | 0.5A@100Vac | ||
| Inrush Current (Typ.) | 14A, 50%, 780us @120Vac 15A, 50%, 660us @277Vac | ||
| Leakage current | <0.50mA | ||
| protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Loading | ≤120% Hiccup mode,recovers automatically after fault condition is removed | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20~90%RH, non-condensing | ||
| Storage TEMP. Humidity | -40~+80℃,10~95%RH | ||
| TEMP .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | UL8750+UL1310 | |
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC Part 15 B | ||
| Others | Weight | About 1.1Kg | |

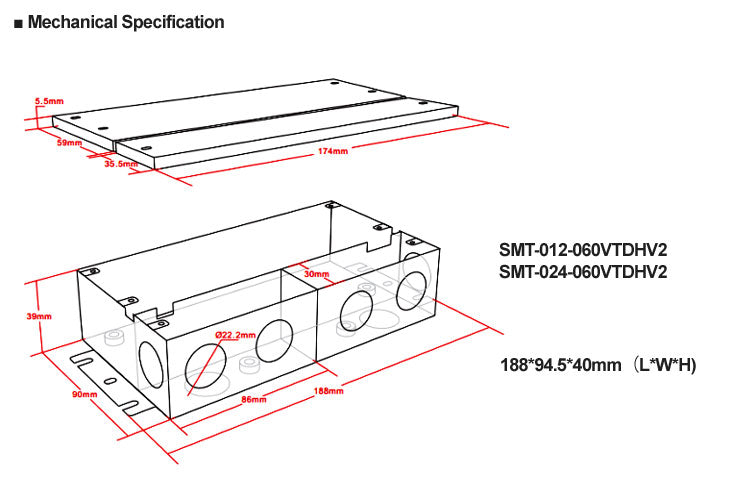

| Size | 188*94.5*40mm(L*W*H) | ||
| packing | 10PCS/CTN (L*W*H) | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. | |||
| 3. Tolerance:includes set us tolerance,line regulation and load regulation . | |||
- Inputwire Black and White to be connected?to?AC?L and N ,Green wire go ground,
- Outputwire?Red to LED Positive side (+) , Black ?to LED Negative side (-).??
- Dimming cable DIM (+) Purpleto 0/1-10V dimmer signal(+ ),DIM (-) Grey?to 0/1-10V dimmer signal (-) ?
- Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
¡ö?Connecting Diagram
Using TRIAC/Phase cut dimming
1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
2.Work with forward phase /leading edge ,MLV and?reverse phase /trailing edge ,ELV,TRIAC dimmers.
3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Using 0-10/1-10V dimming
