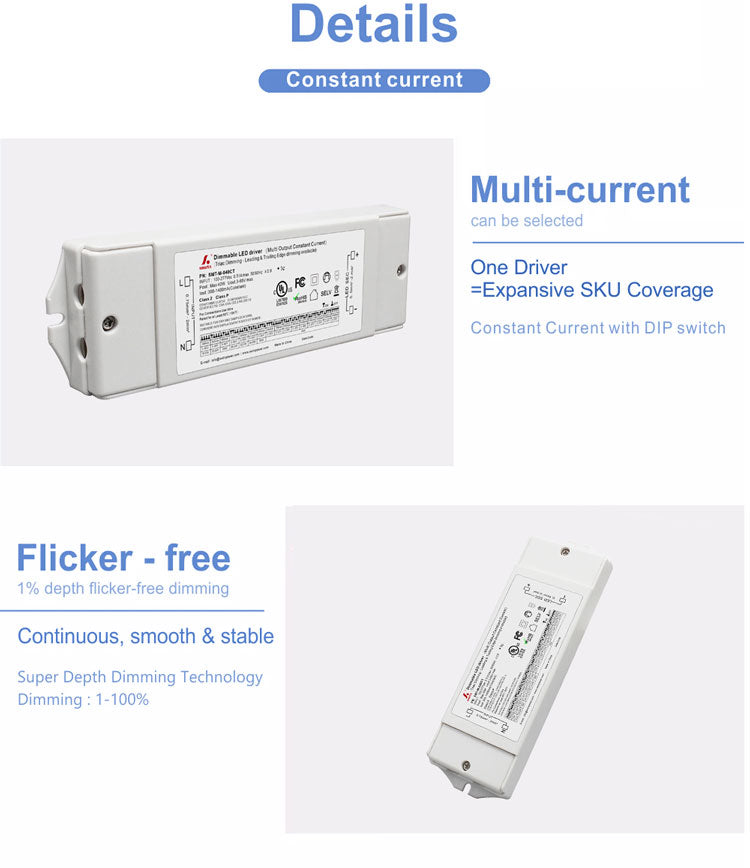

Triac Dim Multi-Current Driver 40W (DIP Adjustment)

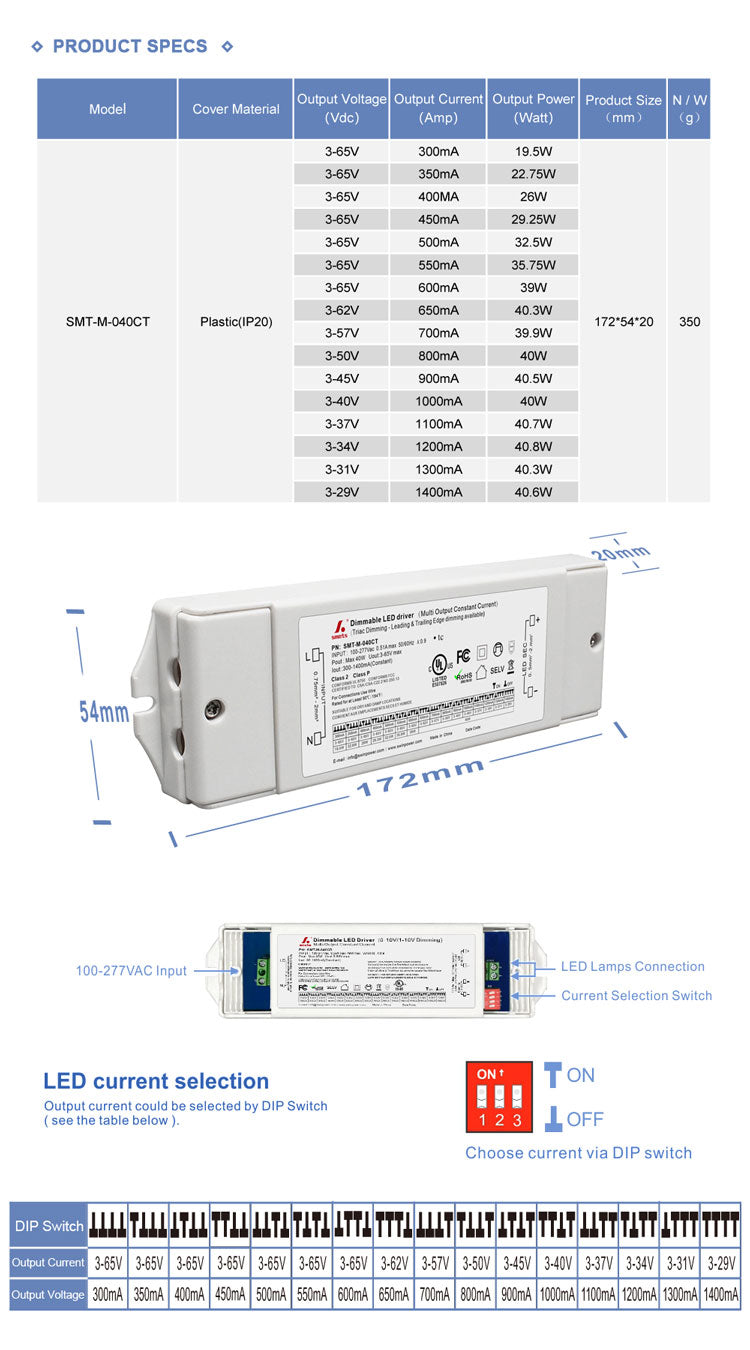

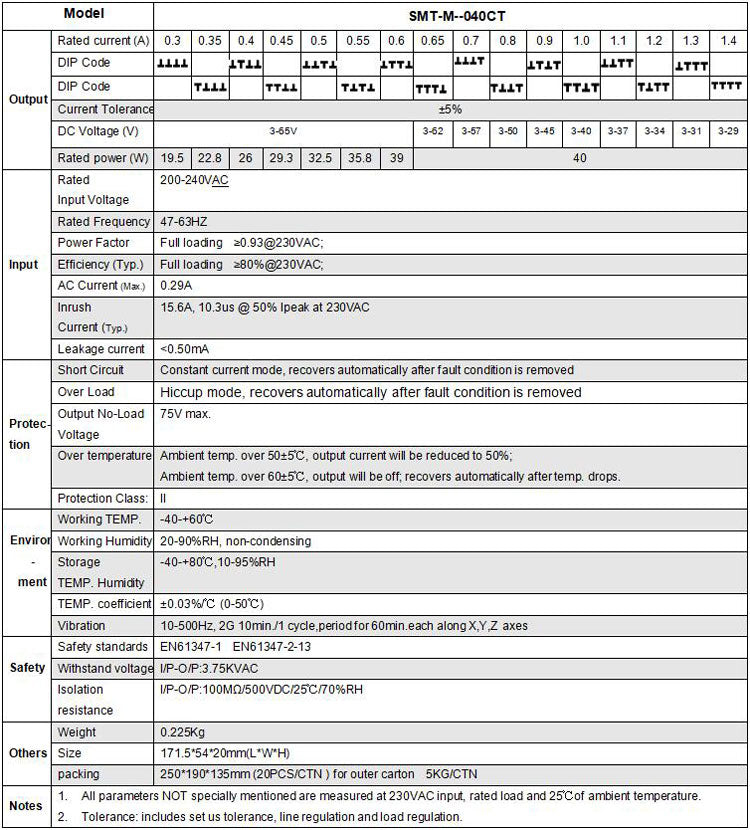

SMT-M-040CT is smarts new series 40W Triac dimmable led driver, The current can be switched between 300mA-1400mAand can be used in a variety of applications,
※Input terminals "Black" and "White" to connect to AC L and N.
※Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged
■ Dimming Operation and Connecting Diagram
TRIAC/Phase cut dimming
1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
2.Work with forward phase /leading edge ,MLV and reverse phase /trailing edge ,ELV,TRIAC dimmers.
3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
