UL Class 2 Non-Dimmable J-Box Driver 300W

SMT-012-300VWJ2
Non-dimmable LED Driver
SMARTS
class 2 led street light driver 300w manufacturers? multi-output 5*60W led driver 12V Fast heat dissipation, long life, In harsh environments, it is more stable than ordinary  300w LED power supply...
Output Voltage*
SIZE*
Bulk Savings*
$209.00
$209.00

class 2 led street light driver 300w manufacturers? multi-output 5*60W led driver 12V Fast heat dissipation, long life, In harsh environments, it is more stable than ordinary  300w LED power supply, and there is no abnormal noise.

Model SMT-012-300VWJ2 (1.0 version)
SMT-012-300VWJ2V2 (2.0 version)
SMT-012-300VWJ2WV2 (3.0 version)
SMT-024-288VWJ2 (1.0 version)
SMT-024-288VWJ2V2 (2.0 version)
SMT-024-288VWJ2WV2 (3.0 version)
Output DC Voltage 12V 24V
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1% ±1%
Rated current 25A (multi current 5*5A) 12A(multi current 3*4A)
Rated power 300W (5*60W) 288W (3*96W)
Input Voltage Range 100-277VAC
Frequency Range 47-63Hz
Power Factor (Typ.)@full load 0.99@120VAC  0.95@277VAC 0.99@120VAC  0.95@277VAC
THD(Typ.)@full load <20% <20%
Inrush Current(Typ.) 88%@120V   92%@277VAC 86%@120V   91%@277VAC
Efficiency(Typ.)@Full Load 3.4A@100VAC 3.6A@100VAC
AC Current(Typ.) 35A ,50%,960us @120VAC ;  43A,50%,1ms @277VAC 12.4A (twidth=430us) @277VAC
Leakage current <0.50mA
Protection Short Circuit shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading ≤120%  Hiccup mode ,recovers automatically after fault condition is removed
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20~90%RH, non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards UL8750+UL1310
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION FCC 47 CFR Part 15 ,Subpart B
Others Weight 2.2Kg  (1.0 version)

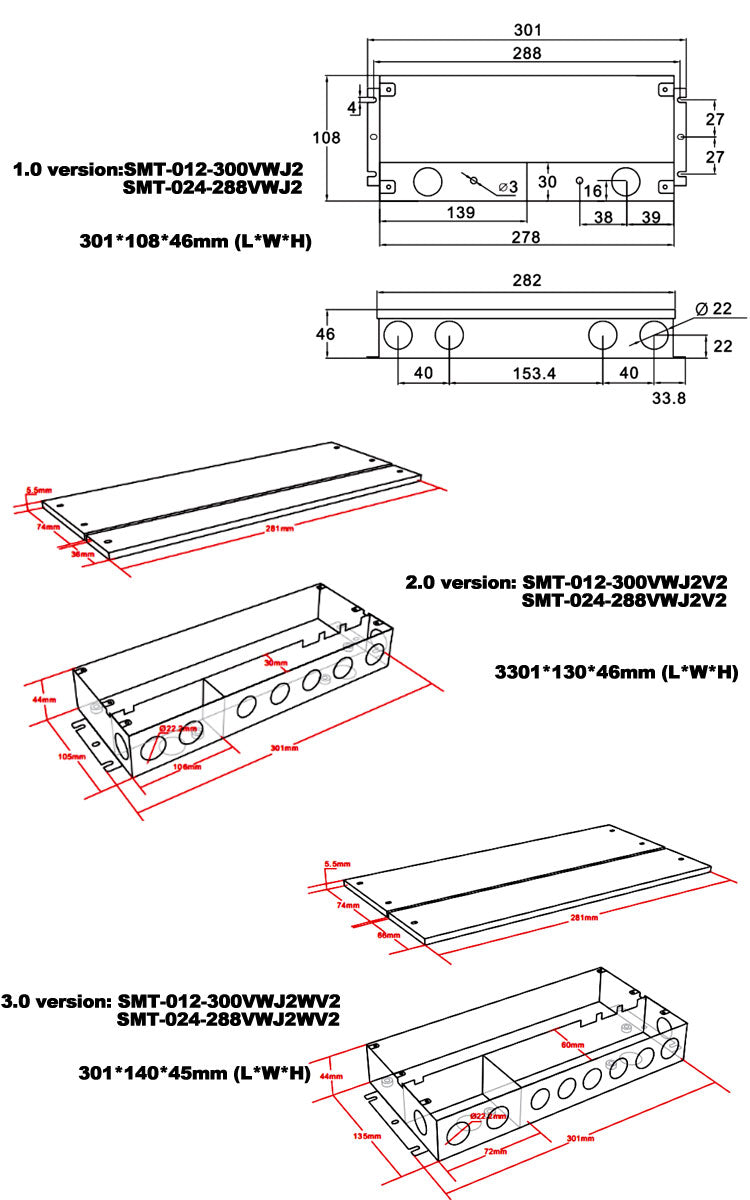

Size 1.0 version: 301*108*46mm   /   2.0 version: 301*130*46mm  3.0 version: 301*140*45mm
packaging 330*220*245mm     8pcs /CTN    G.W.:21.08KG/CTN  (1.0 version)  385*335*200mm     20PCS/CTN
Notes 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.

UL Class 2 Non-Dimmable J-Box Driver 300W

Non-Dimmable J-Box Driver 300W Connecting Diagram
