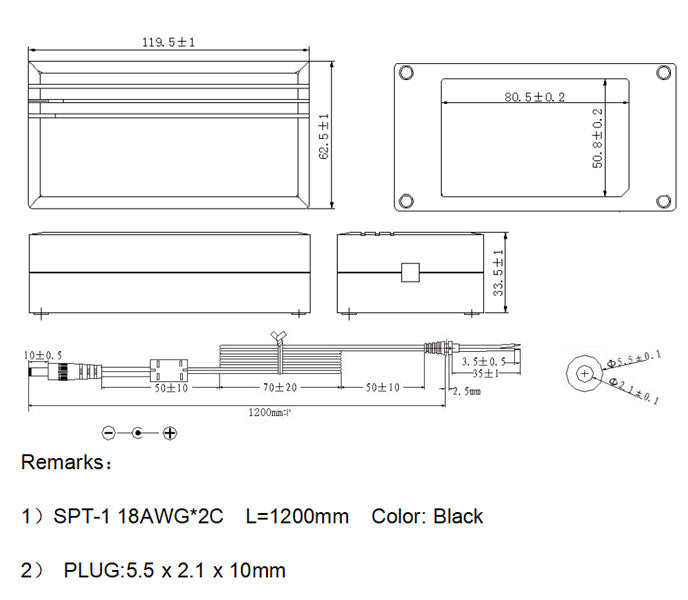

desktop type power adapter 60W
SMT-012-060VP This power supply is specially designed to supply power for short-length led strips. The input voltage is 100-240vac black plastic shell. It is compact and easy to install. The 60W 12V power adapter can provide stable power for the lamps. ETL certification, complete certificatesOutput Requirements
** Output Voltage and Current
| Output | Output Regulation(V) | No Load | Rating Load (A) | |
| Voltage(V) | Minimum | Maximum | Current(A) | Continuous Current(A) |
| 12V | 11.4V | 12.6V | 0A | 5.0A |
** Output Voltage Regulation
The total output voltage regulation shall be +/-5%,including the effects of line voltage variations,load current,ripple and noise,and the AC component of the load current.
** Output Voltage Ripple
The switching power supply shall not exceed the following limits in the indicated voltage for 60Hz or 50Hz ripple,switching frequency ripple and noise measured with 20MHz width.
Ripple and Noise:50/60Hz Ripple + Switching Ripple and Noise
| Output | Ripple |
| 0-5.0A | 200mV |
Ripple and Noise are measured at the end of output cables which are added a
0.1uF(104) Ceramic capacitor and a 22uF Electrolytic capacitor.
| model | output voltage | Current | power | Tol. | R&N | Effi. |
| SMT-012-060VP | 12V | 5.0A | 60W | ±3% | 80mV | >82% |
| SMT-024-060VP | 24V | 2.5A | 60W | ±2% | 180mV | >82% |
