Waterproof LED Driver 72W

SMT-012-072VW
Non-dimmable LED Driver
SMARTS
SMT-012-072VW 72w led driver constant voltage 190*48*34mm (L*W*H) waterproof IP67 can install in humid place.Support bulk purchase. MODEL SMT-012-072VW SMT-024-072VW OUTPUT DC VOLTAGE 12V 24...
OUTPUT POWER*
SIZE*
Bulk Savings*
$45.20
$45.20

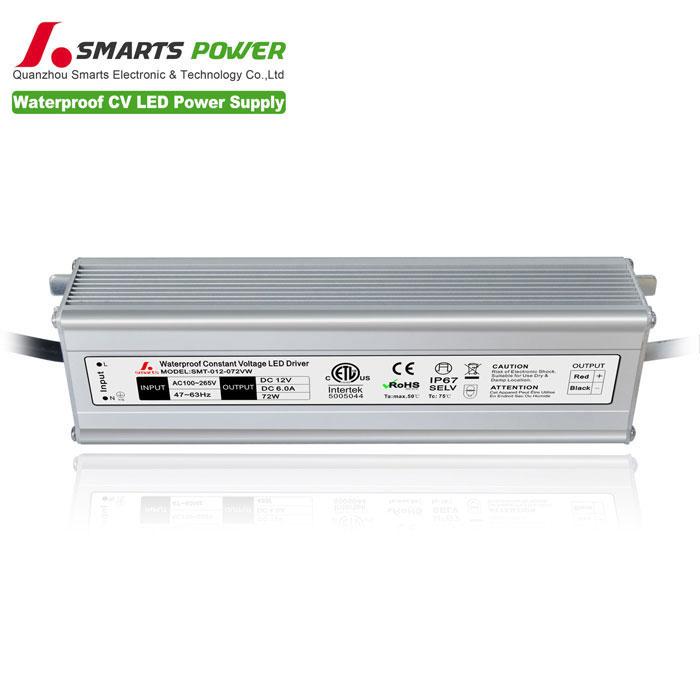

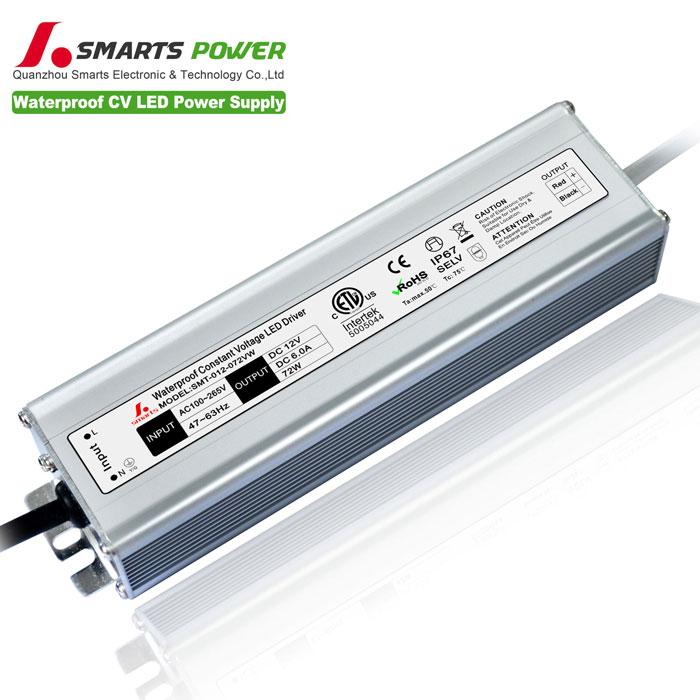

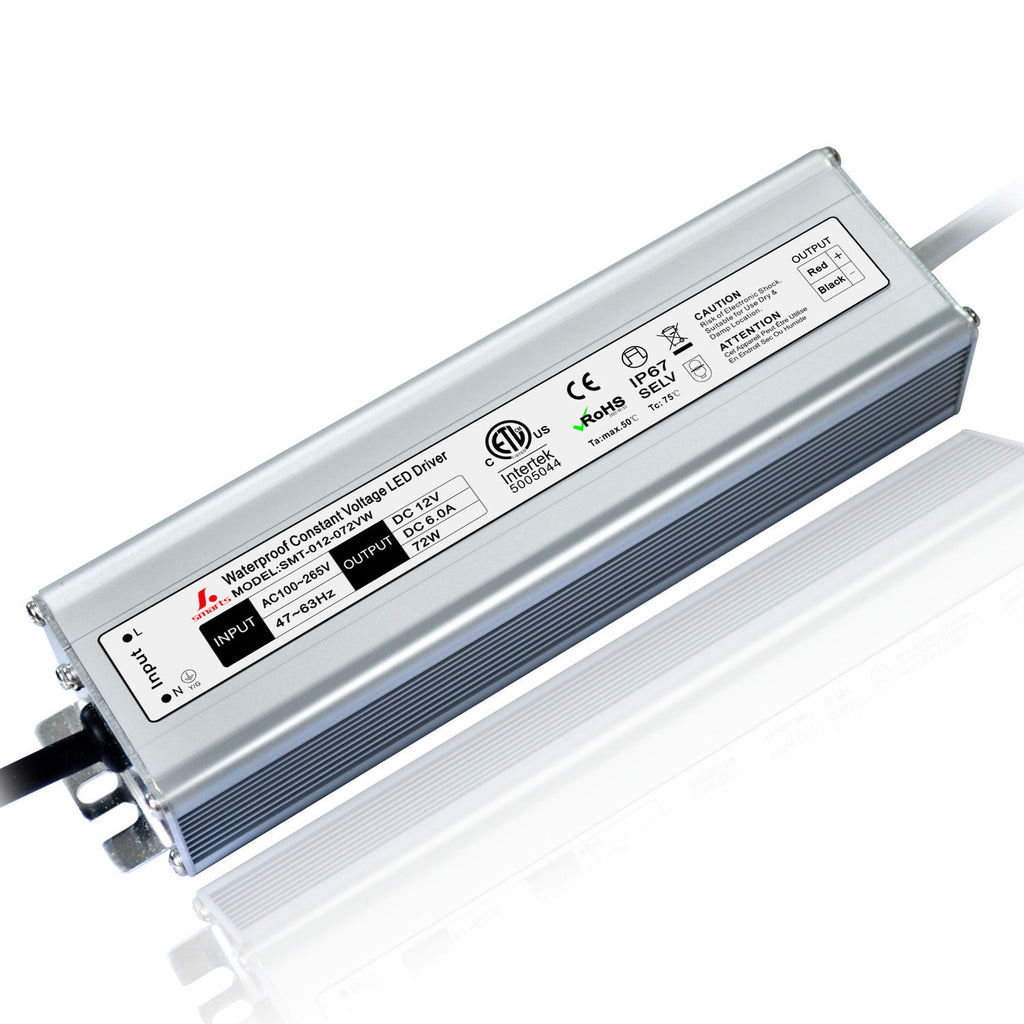

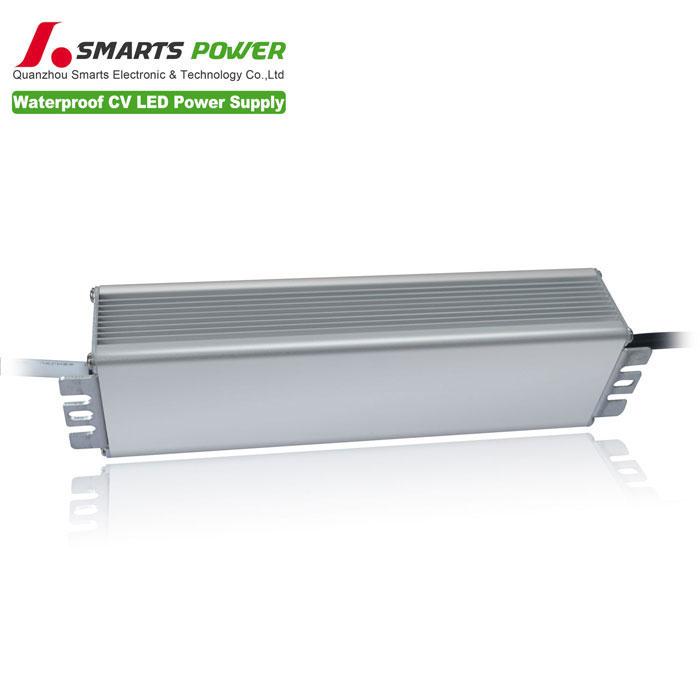

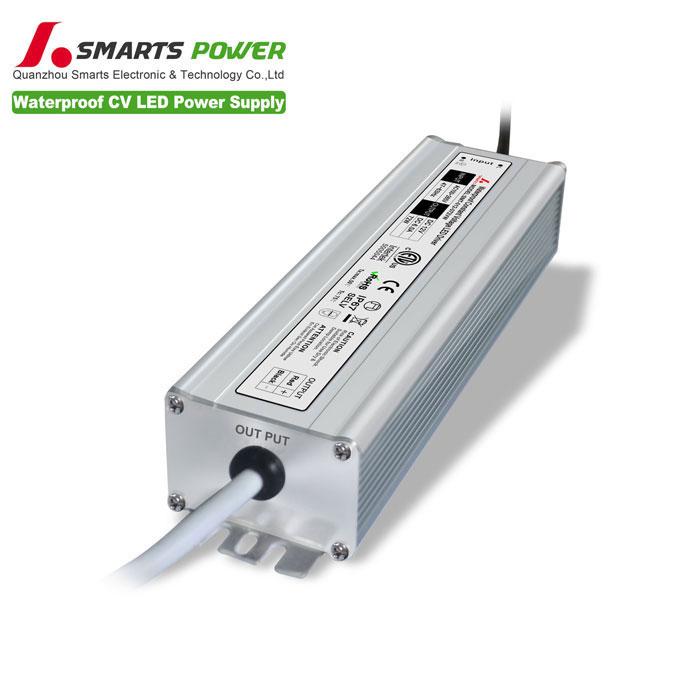

SMT-012-072VW 72w led driver constant voltage 190*48*34mm (L*W*H) waterproof IP67 can install in humid place.Support bulk purchase.

waterproof  led driver 12v 24v 72W

MODEL SMT-012-072VW SMT-024-072VW
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 6.0A 3.0A
CURRENT RANGE 0~6.0A 0~3.0A
RATED POWER 72W 72W
RIPPLE&NOISE(max) 1.2V 1.2V
voltage TOLERANCE 12V±5% 24V±5%
SETUP RISE TIME 80ms/110,220VAC 80ms/110,220VAC
HOLD UP TIME(Typ.) 60ms/110,220VAC 60ms/110,220VAC
INPUT VOLTAGE RANGE 90~135/170~265Vac 90~135/170~265Vac
FREQUENCY RANGE 50~60Hz 50~60Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.) ﹥84% ﹥84%
AC CURRENT(Typ.) 0.5A/110V,220VAC 0.5A/110V,220VAC
INRUSH CURRENT (Typ.) COLD START 30A/110,220VAC
PROTECTION Short circuit Protection type:recovers automatically after condition is removed
Overload overload protected@145-160% above peak rating
Over temperature Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT WORKING TEMP. -30~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS UL, CE Mark(LVD, EMC), IP67
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC  IP-GND:1.5KVAC
EMC Test Standards EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE 1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.

waterproof  led driver 12v 24v 72W

waterproof  led driver 12v 24v 72W

LED Drivers 72W Wiring Diagram

Product Certificate
