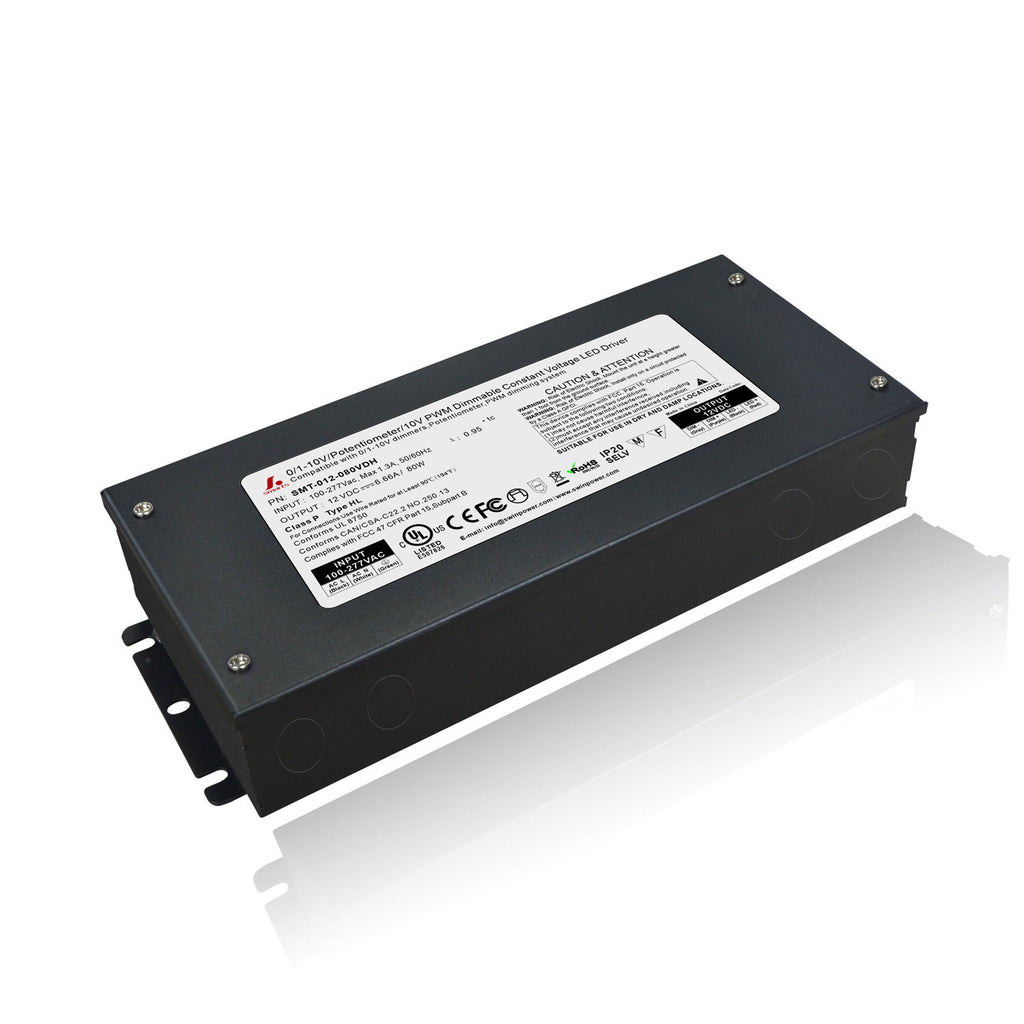

277V 0-10V Dim J-BOX Driver 80W

SMT-012-080VDHV2
0-10V Dimmable LED Driver
SMARTS
Smarts VDH series is UL certified 0 10v dimmable 12v led driver power supply 80w Mainly sold to North America, The driver is integrated with the junction box, no need to use the junction box separa...
Output Voltage*
SIZE*
Bulk Savings*
$113.40
$113.40

Smarts VDH series is UL certified 0 10v dimmable 12v led driver power supply 80w Mainly sold to North America, The driver is integrated with the junction box, no need to use the junction box separately.

model SMT-012-080VDH (1.0 version)
SMT-012-080VDHV2(2.0 version)
SMT-024-080VDH (1.0 version)
SMT-024-080VDHV2(2.0 version)
Output DC Voltage 12V 24V
Voltage Accuracy ±0.5V
Rated current 6.66A 3.33A (class 2 type)
Rated power 80W 80W
Input Voltage Range 100~277V AC
Frequency Range 47~63HZ
Power Factor ( Typ.) PF≧0.95/110V , PF≧0.95/277V
THD(Typ.)@ full load <20%
Full Load Efficiency(Typ.) 86%@120VAC   88%@277VAC
AC Current(Typ.) 1.3A @110VAC
Inrush Current (Typ.) 18A, 50%, 1.6ms
Leakage current ﹤0.50mA
Protection Short Circuit shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading ≤120% constant current limiting, auto-recovery
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment Working TEMP. -40~+60℃
Working Humidity 20~90%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
Safety&EMC Safety standards UL8750+UL1310
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION FCC Part 15 B
Others Weight 1.3Kg (1.0 version)
Size 1.0 version: 220*93*41mm (L*W*H) / 2.0 version: 220*94.5*40mm(L*W*H)
packing 330*280*176mm  /  10PCS/CTN 385*335*200mm     20PCS/CTN
Notes 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.

12Vdc 24Vdc 0-10v Dimmable J-BOX Driver 80W

0-10V Dimmable J-Box Driver 60W Connecting Diagram
