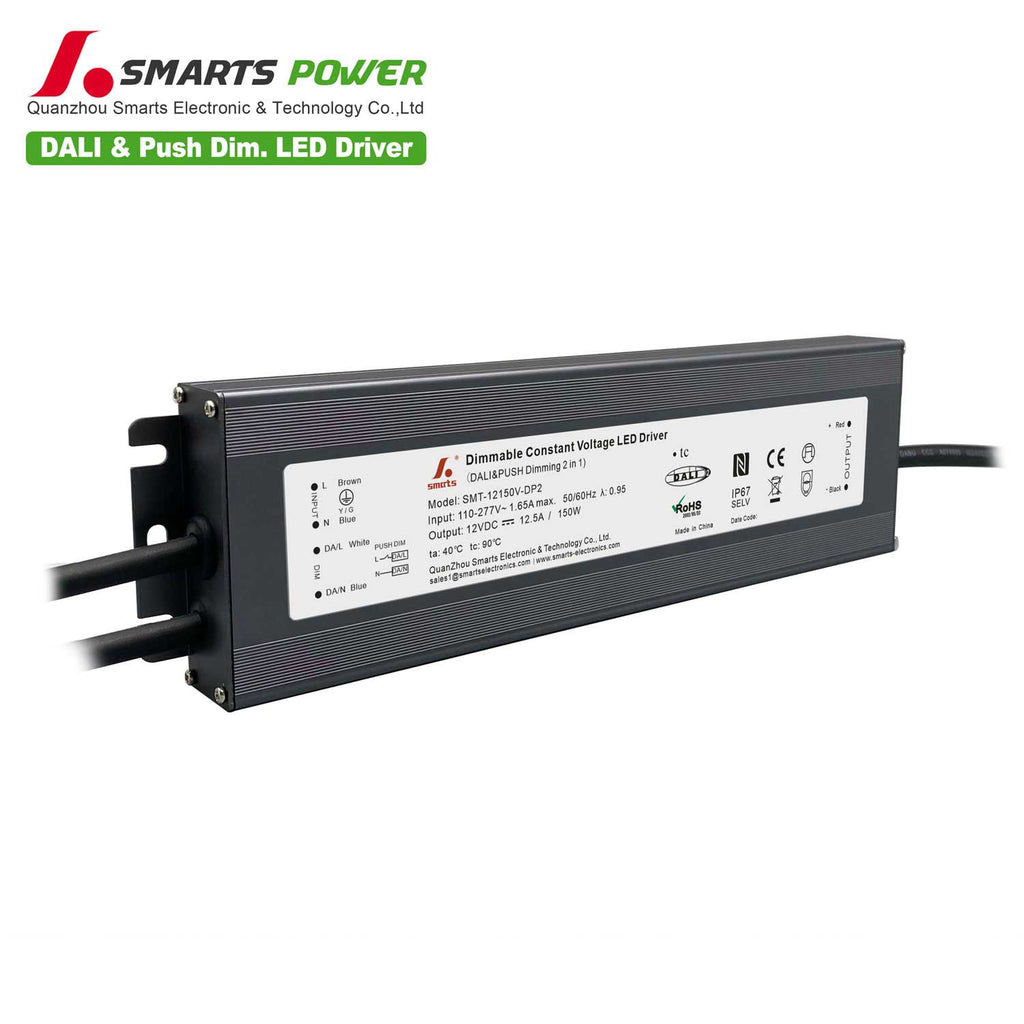

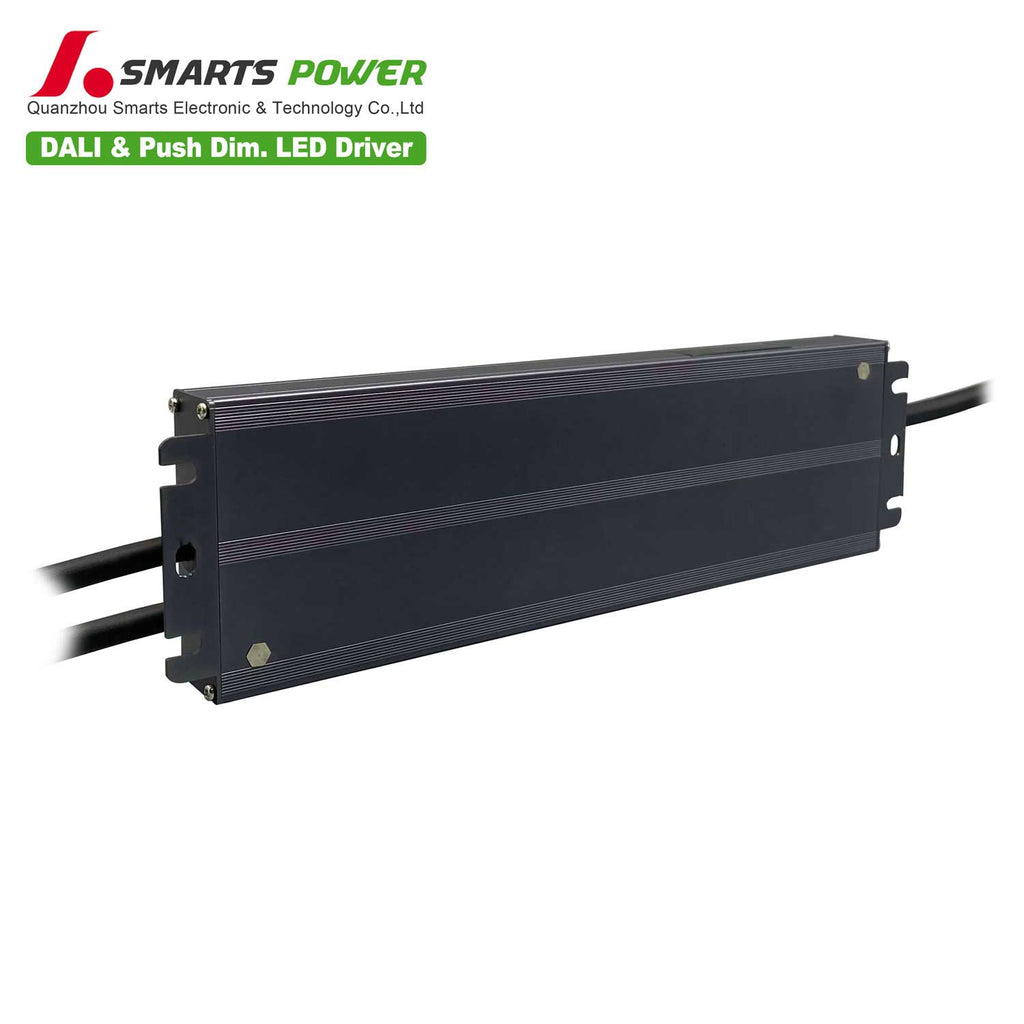

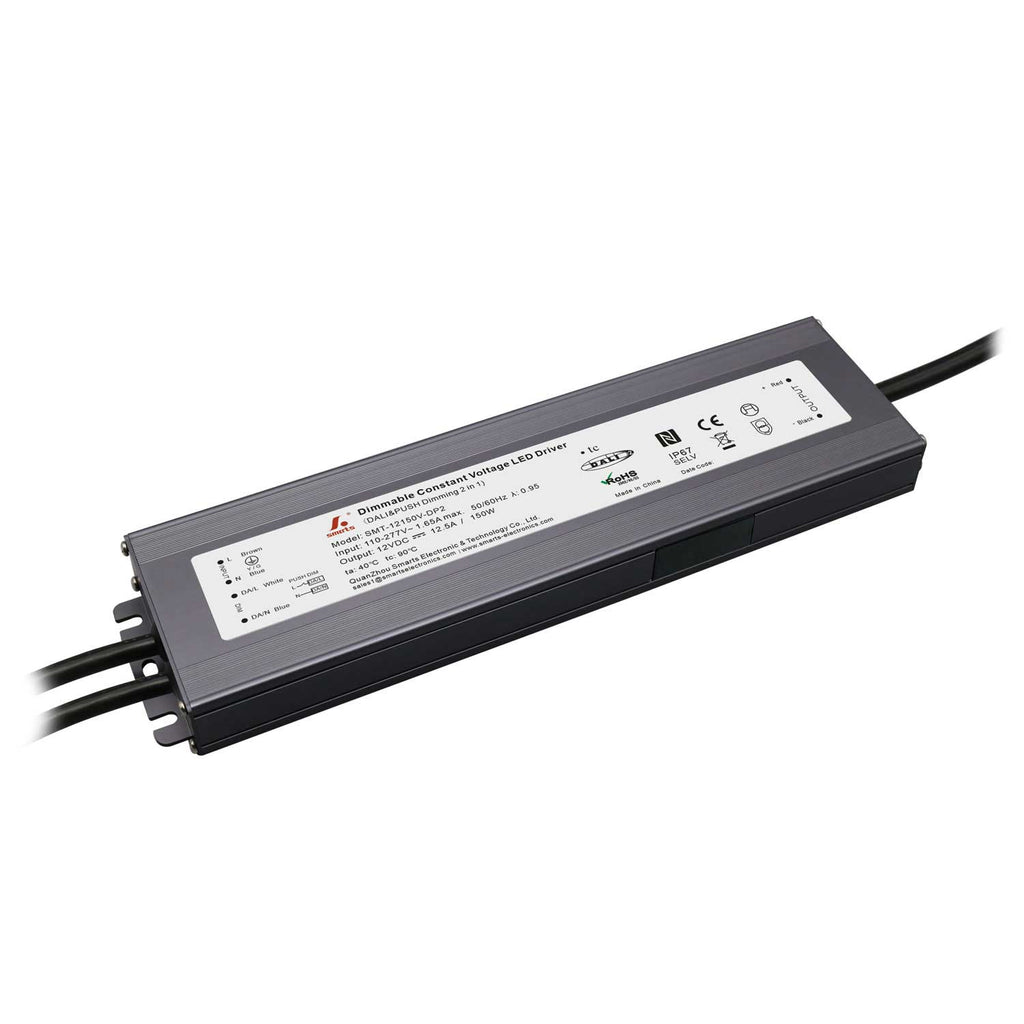

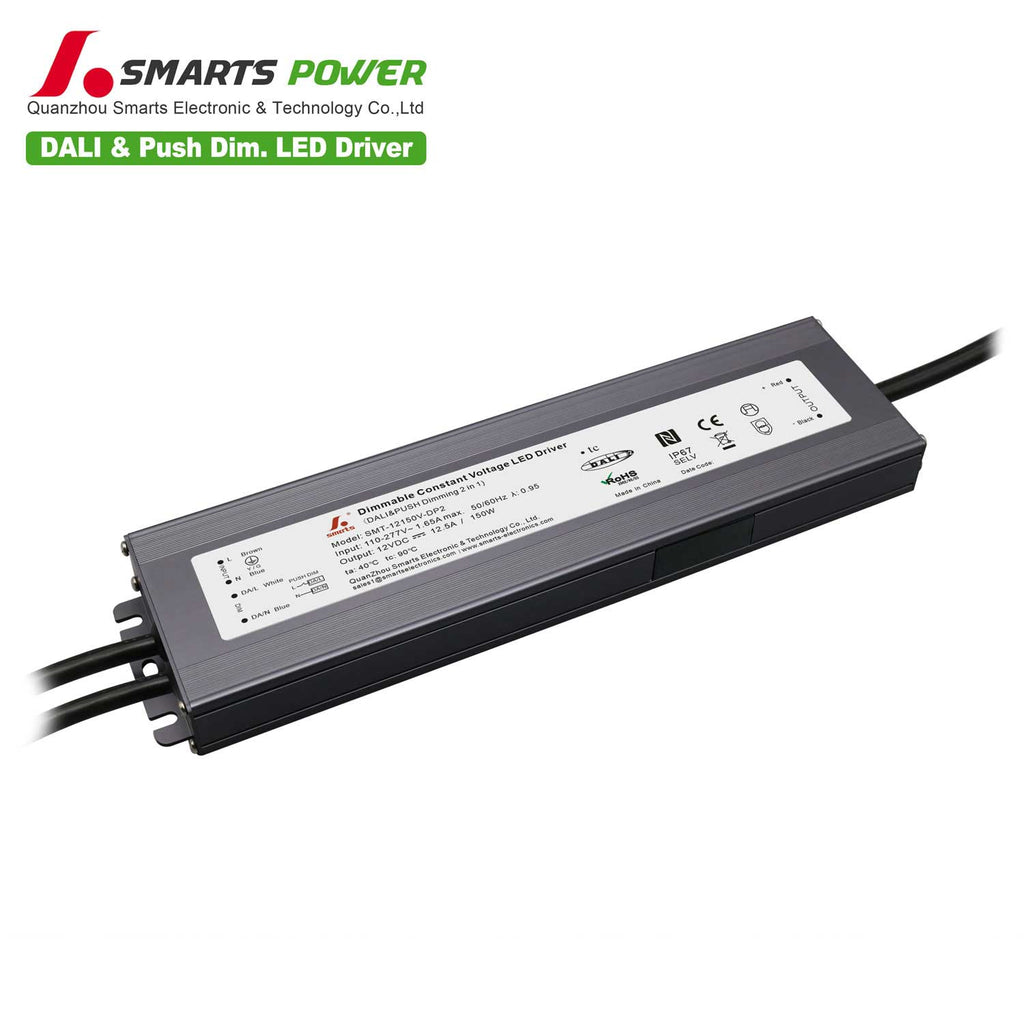

DALI 2& PUSH Dim C.V. LED Driver 150W (DT6)

SMT-12150V-DP2
Smarts Power
dali & push dimmable led driver 150W input voltage in 100-277vac, constant voltage mode, working efficiency up to 91% Model SMT-12150V-DP2 SMT-24150V-DP2 SMT-36150V-DP2 SMT-48150V-DP2 Out...
Output Voltage*
SIZE*
Bulk Savings*
$152.40
$152.40

dali & push dimmable led driver 150W input voltage in 100-277vac, constant voltage mode, working efficiency up to 91%

dali-2 & push dimmable Constant Voltage led driver 150W

Model SMT-12150V-DP2 SMT-24150V-DP2 SMT-36150V-DP2 SMT-48150V-DP2
Output DC Voltage 12V (12-13.5Vadjust by NFC) 24V (24-26V adjust by NFC) 36V (36-38V adjust by NFC) 48V (48-50V adjust by NFC)
Voltage Tolerance ±0.2V
Rated current 12.5A  6.25A 4.17A  3.12A
Rated power 150W
Load Regulation ±2%
Input Standby power consumption  ≤0.5W ≤0.5W ≤0.6W ≤0.6W
Voltage Range 110-277VAC
Frequency Range 47 - 63Hz
Power Factor(Typ.)@ full load PF≥0.98@120VAC  PF≥0.96@230VAC  PF≥0.95@277VAC (Full loading)
THD(Typ.)@ full load ≤10%@120VAC ;  ≤10%@230VAC;  ≤15%@277VAC
Efficiency(Typ.)@ full load 89%@120VAC;   91%@230VAC;   91%@277VAC;
AC Current(Max.) 1.65A
Inrush Current (Typ.) 38.4A,510us@50%Ipeak(120VAC);88A,120us@50%Ipeak(230VAC)    48A,560us@50%Ipeak (277VAC)
Leakage current <0.5mA
Protection Short Circuit Hiccup mode, recover automatically after fault condition is removed
Over Load ≤120% ,hiccup mode, recover automatically after fault condition is removed
Over temperature Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops.
Environment Working TEMP. -40~+70℃ (see below derating curve)
Working Humidity 20 - 95%RH,non-condensing
Storage TEM.,Humidity -40 - +80℃,10 - 95%RH
TEMP.coefficient ±0.03%/℃(0 - 50℃)
Vibration 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards EN61347-1   EN61347-2-13 (EU)   &  UL8750  (US)
Withstand voltage I/P-O/P:3.75KVAC  I/P-FG:1.5KVAC  O/P-FG:0.5KVAC (EU);   I/P-O/P:1.88KVAC (US)
Isolation resistance I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC Emission EN55015   EN61000-3-2  EN61000-3-3 (EU)≥50% Load  &  FCC Part 15 B (US)
EMC Immunity EN61000-4-2,3,4,5,6 ,11,  EN61547
Others Weight 1.05KG
Dimension 278*78*25.1mm (L*W*H)
packing 390*325*185mm/20PCS/CTN    G.W.:22KG/CTN
Notes 1. All parameters NOT specially mentioned are measured at 120VAC/230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

dali-2 & push dimmable Constant Voltage led driver 150W

dali-2 & push dimmable Constant Voltage led driver 150W

dali-2 & push dimmable Constant Voltage led driver 150W

waterproof ip67 dali & push dimming led driver 150W

 waterproof ip67 dali & push dimming led driver 150W

waterproof ip67 dali & push dimming led driver 150W
