5 in 1 Dimmable LED Driver 30W (Standard Size)

5 in 1 Dimmable LED Driver
This phase cut dimmable driver 30W combines two types of dimming mode: triac and 0-10v, which is a strength in the LED market.  model SMT-012-030VTD SMT-024-030VTD Output DC Voltage 12V 24V ...
Output Voltage*
Bulk Savings*

This phase cut dimmable driver 30W combines two types of dimming mode: triac and 0-10v, which is a strength in the LED market.

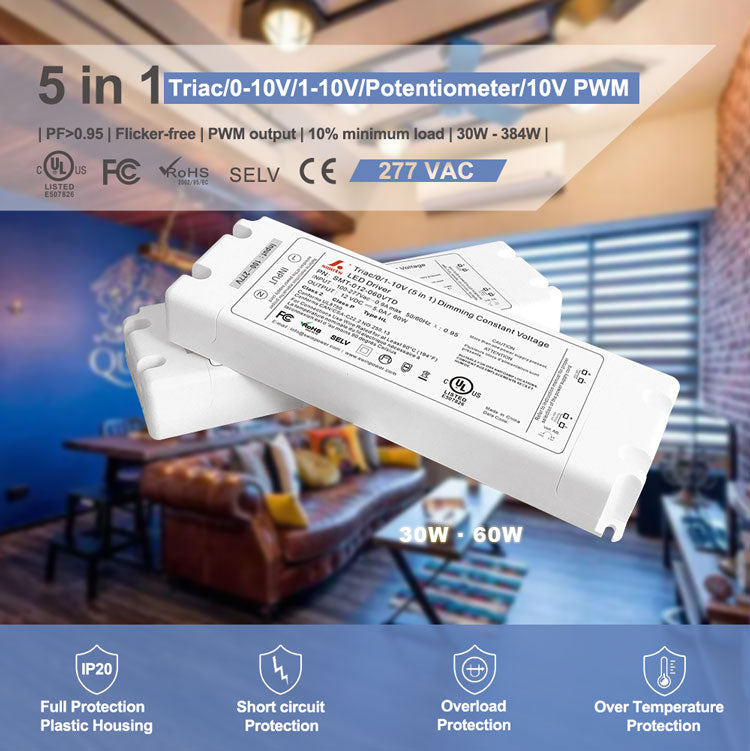

Triac dimmable LED driver 30W

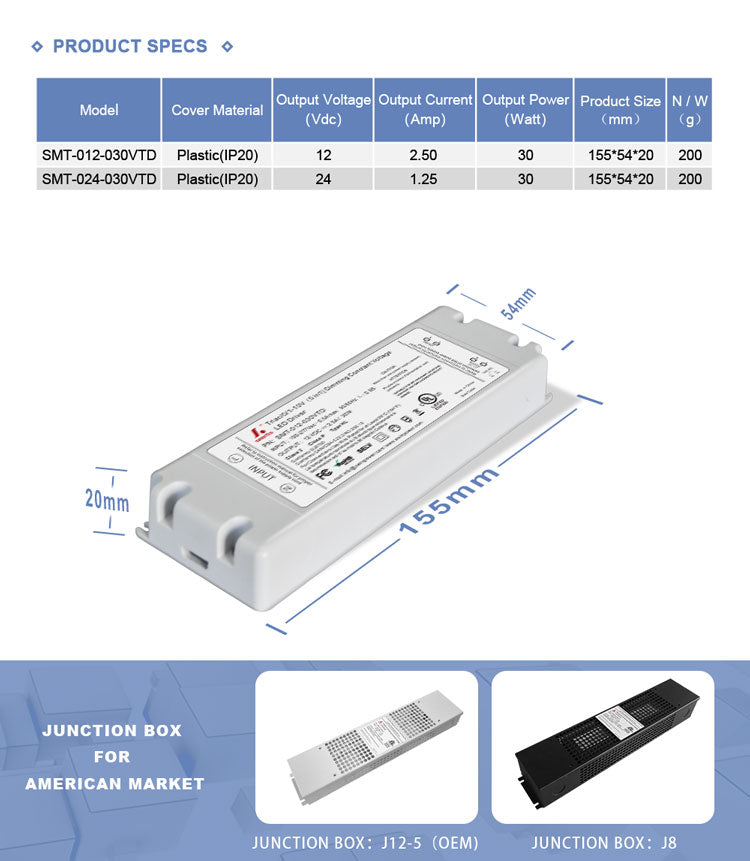

model SMT-012-030VTD SMT-024-030VTD
Output DC Voltage 12V 24V
Voltage Tolerance ±0.5V ±0.5V
Voltage Regulation ±0.5%
Rated current 2.50A 1.250A
Load Regulation ±1%
Rated power 30W 30W
Input Voltage Range 100-277V AC
THD(Typ. ) @ full load <20%@120VAC &277VAC
Frequency Range 47~63HZ
Power Factor ( Typ.) 0.99@120VAC   0.98@277VAC 0.99@120VAC   0.95@277VAC
Full Load Efficiency(Typ.) 79%@120VAC   80%@277VAC 79%@120VAC   80%@277VAC
AC Current(Typ.) 0.5A
Inrush Current (Typ.) 7A, 50%, 420us @120VAC;   12A, 50% , 480us @277VAC
Leakage current <0.5mA
Protection Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading ≤120% Hiccup mode,recovers automatically after fault condition is removed
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20 - 95%RH,non-condensing
Storage TEM.,Humidity -40 - +80℃,10 - 95%RH
TEMP.coefficient ±0.03%/℃(0 - 50℃)
Vibration 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards UL8750+UL1310 , CAN/CSA-C22.2 No.250.13
Withstand voltage I/P-O/P:1.88KVac
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION FCC 47 CFR Part 15 ,Subpart B
Others Weight About 0.25Kg
Size 155*54*20mm (L*W*H)
packing Carton size: 350*240*130mm  ,  40PCS/CTN (L*W*H)
Notes 1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

5 in 1 dimmable led driver 30W

0-10V dimmable LED Driver 12V 24V

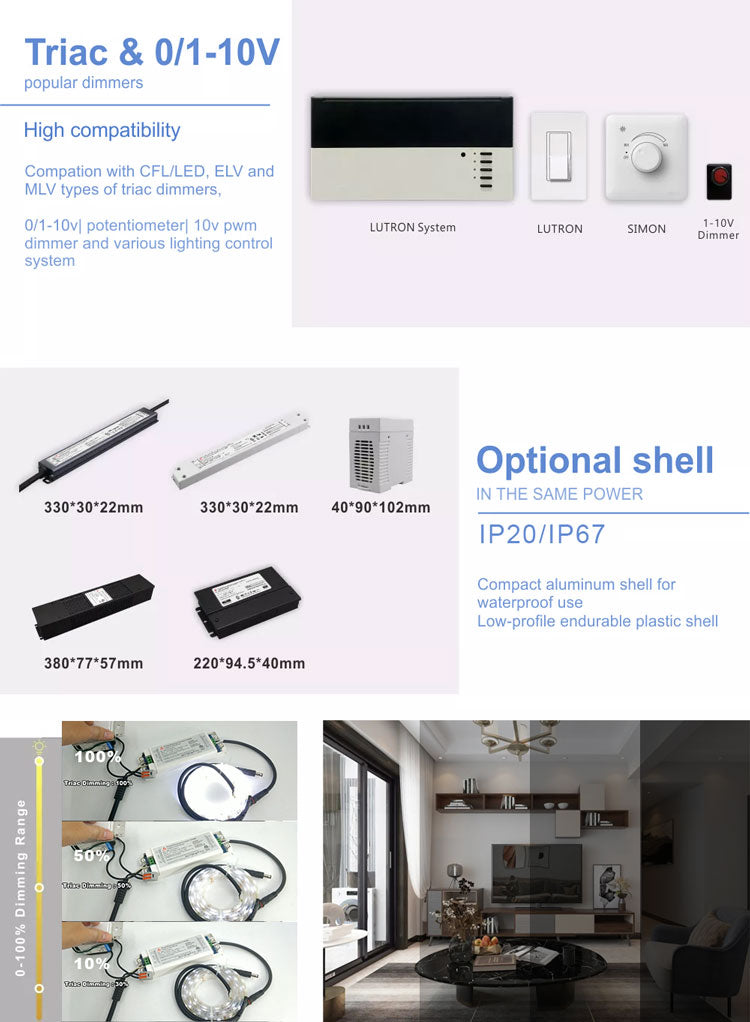

Potentiometer dimmable led driver 277Vac

UL ip20 5 in 1 dimming led driver 30W

Triac & 0-10V 5 in 1 Dimmable LED Driver 30W

Dimming Operation and Connecting Diagram

¡ùUsing two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;

¡ùUsing one dimming ---TRIAC/Phase cut dimming

1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
2.Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers
3.Min loading is about 10%
4.Please try to use dimmers with power at least 1.5 times as the output power of the driver.

Triac & 0-10V 5 in1 Dimmable LED Driver 30W Connecting Diagram
