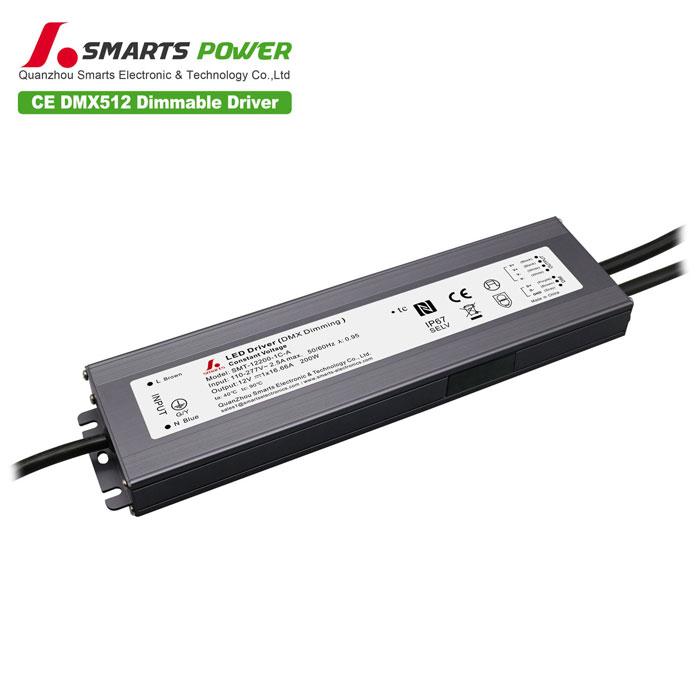

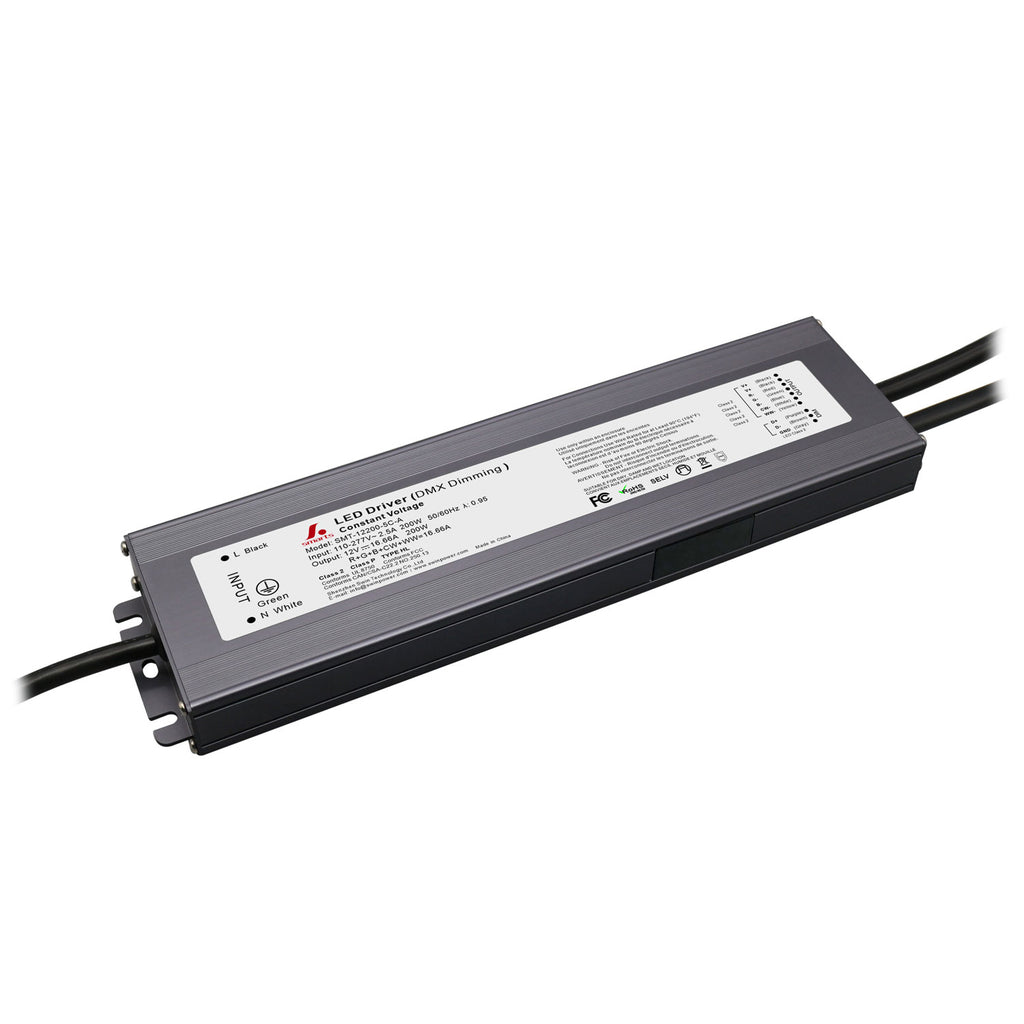

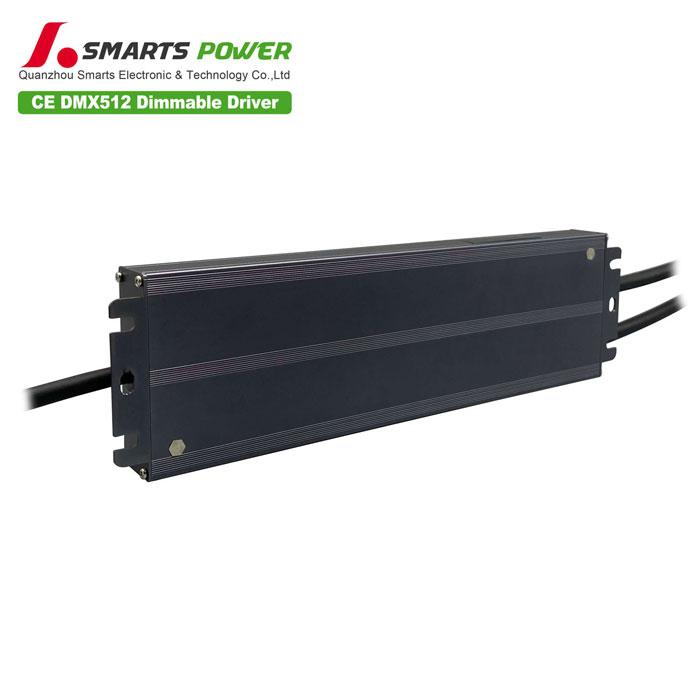

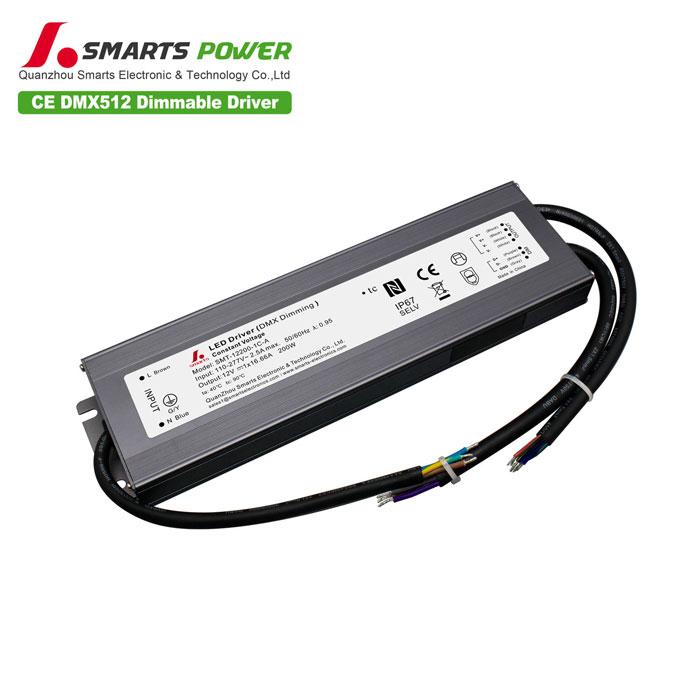

DMX512 Dim CV LED drivers 200w (IP67)

SMT-12200-1C-A
DMX512 Dimmable LED Driver
SMARTS

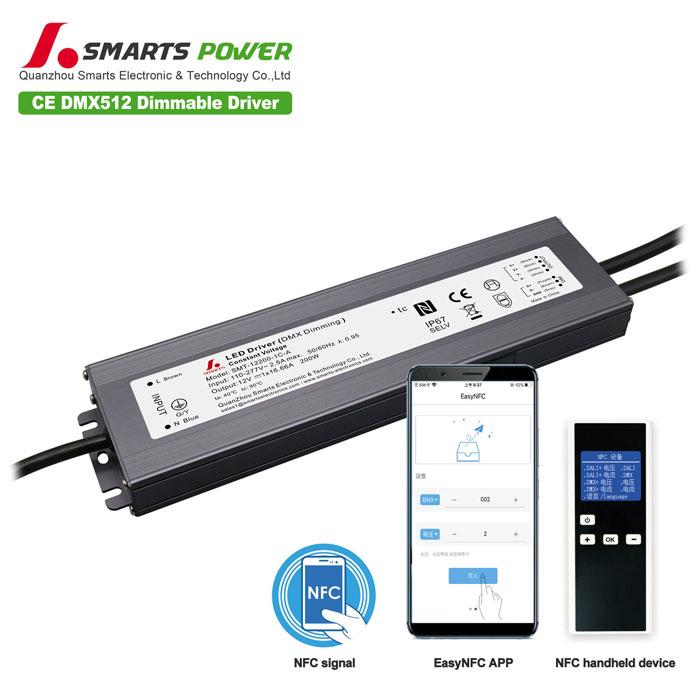

Smarts driver dmx 12V 200W comes to a  smooth dimming without flickering and any buzzing noise. The Max power voltage of this model is 200W. Conforms to North American safe standard.  Model SMT...
Output Voltage*
Road Output*
Bulk Savings*
$203.20
$203.20

Smarts driver dmx 12V 200W comes to a  smooth dimming without flickering and any buzzing noise. The Max power voltage of this model is 200W. Conforms to North American safe standard.

Model SMT-12200-XC-A SMT-24200-XC-A
X=1 , 2,  3,  4,  5 for DIM (DW);  CCT(TW);  RGB;  RGBW;  RGBW+CCT (RGBCW)
Output DC Voltage 12V 24V
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Rated current CH1+CH2+CH3+CH4+CH5=16.66A CH1+CH2+CH3+CH4+CH5=8.33A
Rated power 200W
Load Regulation ±1%
Input Voltage Range 110-277VAC
Frequency Range 47-63Hz
PowerFactor(Typ.)@ full load PF≥0.98@230VAC
THD(Typ.)@full load ≤10%
Efficiency(Typ.)@ full load 91.5%@230VAC 93%@230VAC
AC Current(Max.) 2.5A 2.5A
InrushCurrent(Typ.) 48.5A (Twidth 164us measured at 50% I peak, COLD START, 230VAC)
Leakage current <0.50mA
Protection Short Circuit Hiccup mode ,recovers automatically after fault condition is removed
Over Loading ≤120% Hiccup mode ,recovers automatically after fault condition is removed
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20~95%RH, non-condensing
StorageTEMP.Humidity -40~+80℃,10~95%RH
TEMP .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards EN61347-1   EN61347-2-13 (EU)   &  UL8750  UL1310 (US)
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US)
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION EN55015   EN61000-3-2 ,3-3 (EU) & FCC Part 15 B (US)  (≥60% loading)
EMC Immunity EN61000-4-2,3,4,5,6,11, EN61547
Others Net Weight 0.75KG

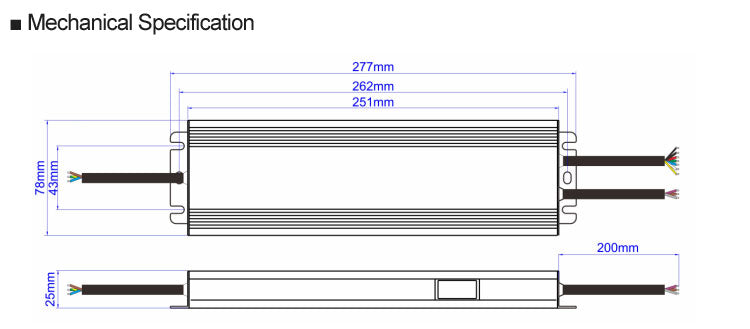

Dimension 277x78x25mm (LxWxH)
packing 10PCS/CTN
Notes 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.


DMX512 Dim CV LED drivers 200w

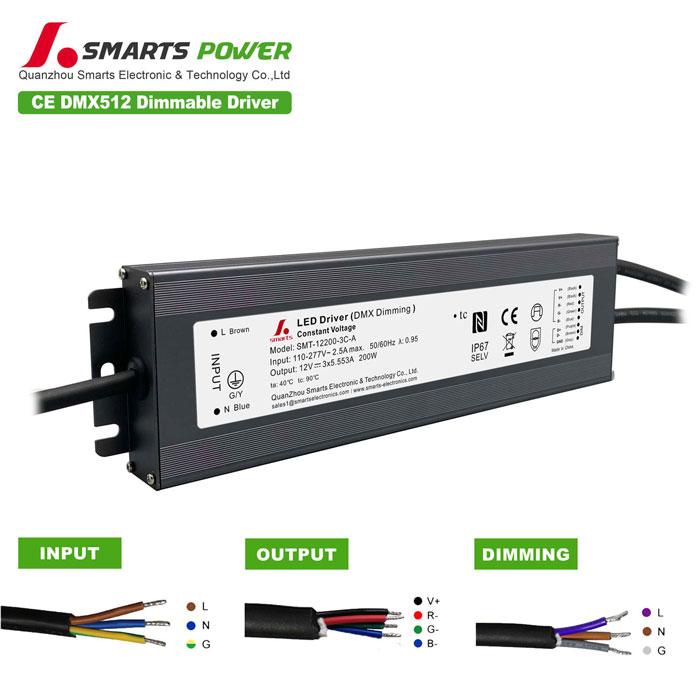

※Input Rubber cable 3*1.0mm²(VDE approval), the Y/G cable connect with (FG) , Brown with AC (L), Blue with AC(N) (EU)
Input SJOW Rubber cable 3*18AWG (UL approval), the green cable connect with (FG) ,Black with AC (L), White with AC(N) (US)
※Dimming cable: Purple (D+), Brown (D-) and Gray (GND) connect to DMX dimmer / system.
※Output cable to be connected to LED Light;
DIM (DW) dimming: Rubber cable
Black is output ( V+) Positive, White is output (V-) negative
CCT (TW) dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, While (CW-) and Yellow (WW-) are output (V-) negative
RGB dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) and Blue (B-) are output (V-) negative
RGBW dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , White (W-) are output (V-) negative
RGB+CCT dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , White (CW-) and Yellow (WW-) are output (V-) negative.;

※Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.
Note: there is external antenna at output side. Don't disassemble!

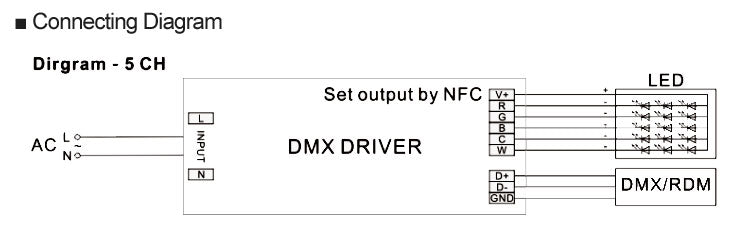

DMX512 Dim CV LED drivers 150w Connecting Diagram

DMX512 address setting Operation
※The default address for the DMX driver is 001.

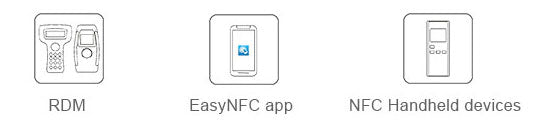

※Address settings device:

DMX512 Dim CV LED drivers 150w Address settings device

※Address settings:
① RDM setting address:
Set the address by the RDM device. For detailed operation, please refer to RDM device instruction manual.
② NFC setting address:
The DMX address can be read and written by a mobile with Easy NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DMX512 driver.

Adjust output voltage Operation
※Adjust output voltage slightly for DMX512 driver
1) The driver output voltage can be read and written by a mobile with Easy NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DMX512 driver.
2) Voltage range: level 1~10, each level is 0.2V. The default output voltage level is 5. Such as SMT-24030-XC-P, default is level 5 corresponding to 24V. By adjusting output voltage slightly, you could get 23.2v to 25V freely.

See figure below

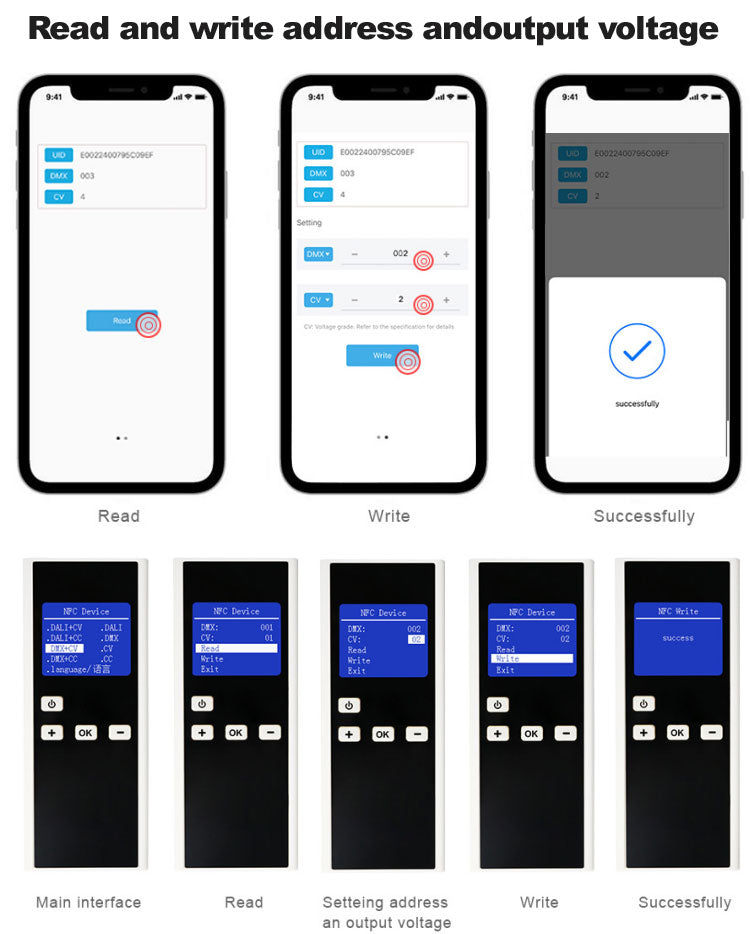

Simple operation about DMX512 address reset and adjusting output voltage slighting by a mobile with Easy NFC APP or NFC handheld device (NFC read & write device: NFC-RW)

DMX512 Dim CV LED drivers 150w

12VDC / 1CH / 1PCS - $203.20
