220V Triac Dim Driver 60W(Standard Size)
SMT-012-060VTHWH
Triac Dimmable LED Driver
SMARTS
SMT-012-060VTHWH is a 60W triac dimmable 12v constant voltage led driver. This power supply is specially designed for Europe. The input voltage is 200-240VAC. It can achieve smooth and flicker-free...
SMT-012-060VTHWH is a 60W triac dimmable 12v constant voltage led driver. This power supply is specially designed for Europe. The input voltage is 200-240VAC. It can achieve smooth and flicker-free dimming when matched with lamps
| model | SMT-012-060VTHWH | SMT-024-060VTHWH | |
| Output | DC Voltage | 12V | 24V |
| Voltage Tolerance | ±0.5V | ||
| Rated current | 5A | 2.5A | |
| Rated power | 60W | ||
| Input | Voltage Range | 200-240VAC | |
| Frequency Range | 47~63HZ | ||
| Power Factor | PF≧0.98/200VAC PF≧0.98/230VAC PF≧0.98/240VAC(Full loading) | ||
| Full Load Efficiency(Typ.) | 85% | 85% | |
| AC Current (Max.) | 0.38A | 0.38A | |
| Leakage current | <0.50mA | ||
| protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Loading | ≦120% Hiccup mode,recovers automatically after fault condition is removed | ||
| Over Current | ≦ 1.2 *Iout | ||
| Over Temperature | 100℃± 10℃ shut down o/p voltage ,re-power on to recover | ||
| Environment | Working TEMP. | -40-+70℃ | |
| Working Humidity | 20-90%RH, non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10-95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0-50℃) | ||
| Vibration | 10-500Hz,2G 10min./1 cycle,period for 72min,each along X,Y,Z axes. | ||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 | |
| Withstand voltage | I/P-O/P:3.75KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | EN55015,EN61000-3-2,3 (≧60%loading) | ||
| Others | Net.Weight | 0.35KG | |

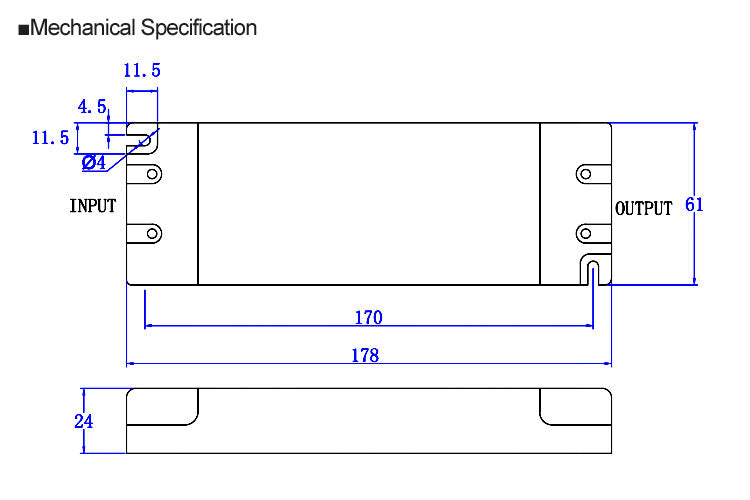

| Size | 178*61*24mm (L*W*H) | ||
| packing | 185*65*28mm inner box 290*215*240mm outside carton 20PCS/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature. | ||
| 2. Tolerance: includes set us tolerance, line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again | |||
| 4. Loading range from 10% to 100% | |||
Input (L) and (N) with wire to be connected with AC
Output LED SEC output Positive (LED+) ,output negative(LED-). Connected to LED light.
Suggested wire diameter:Input 0.75-5m㎡; Output:0.5-2.5m㎡.
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
■Dimming Operation
- Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a Triacdimmer/light system.
- Usually matching with leading edge and trial edge Triac Dimmersboth;
- please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero.
- please try to use dimmers with power at least 3 times as the output power of the driver.
