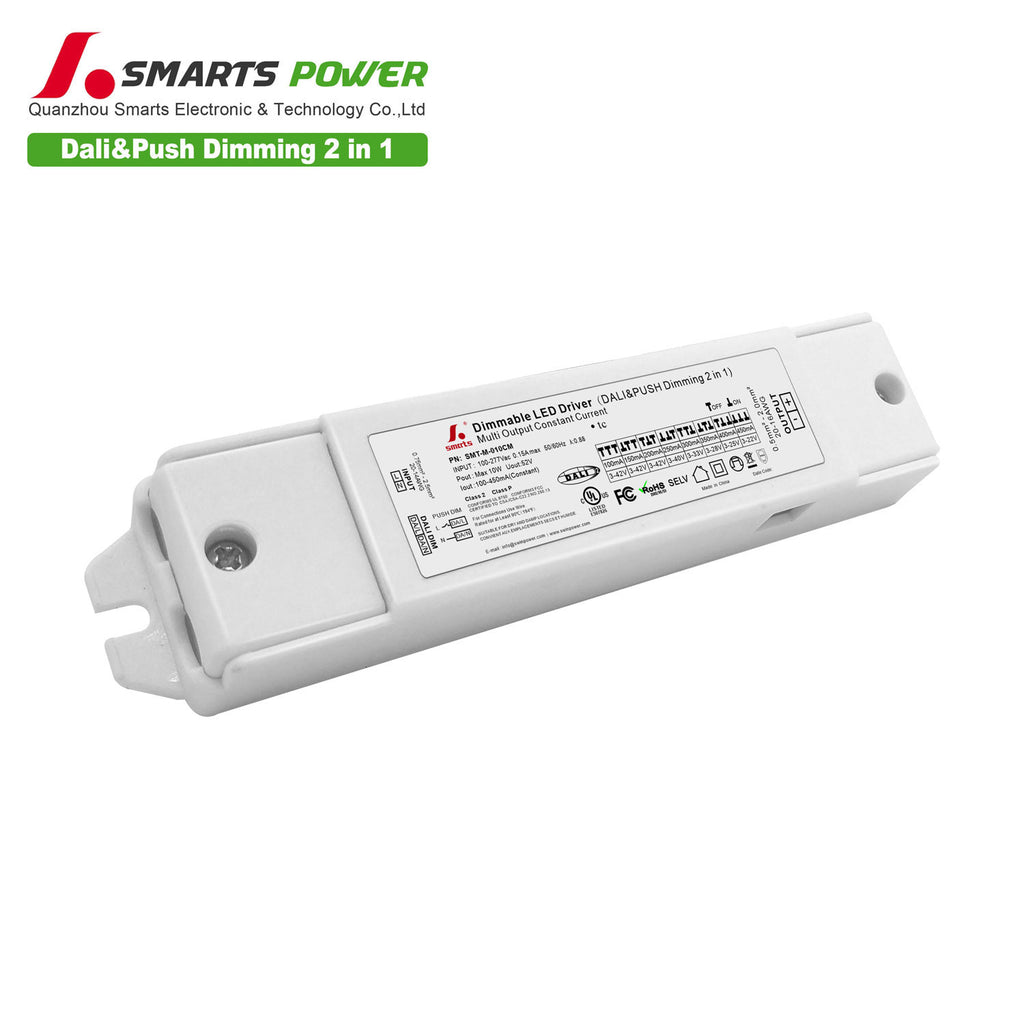

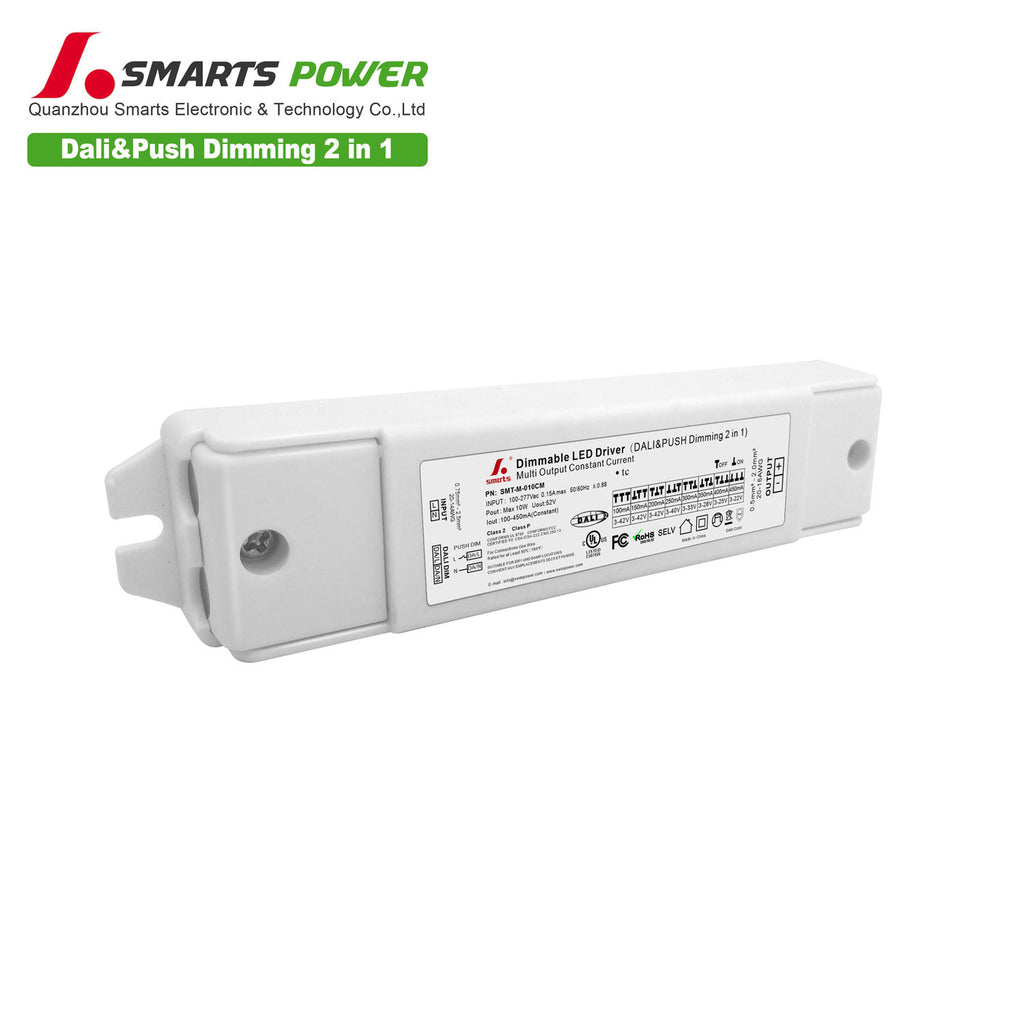

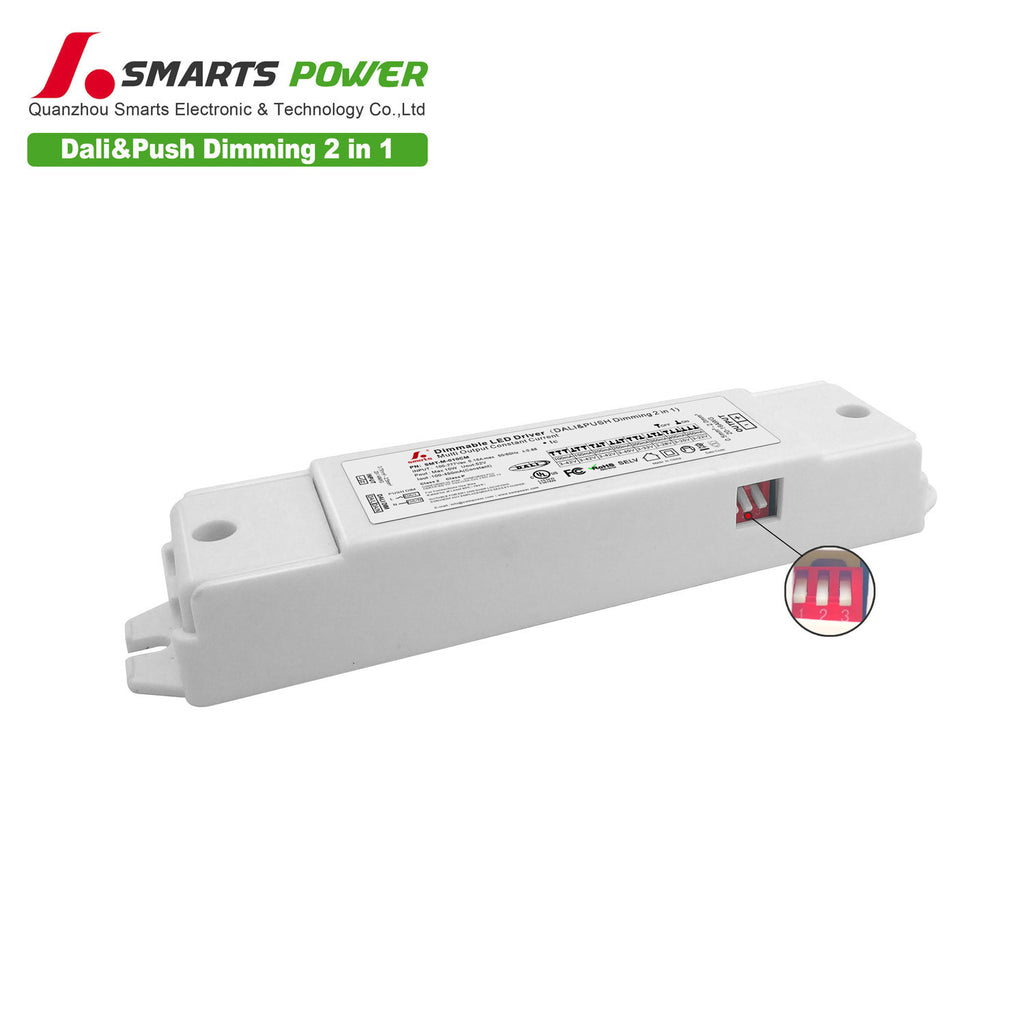

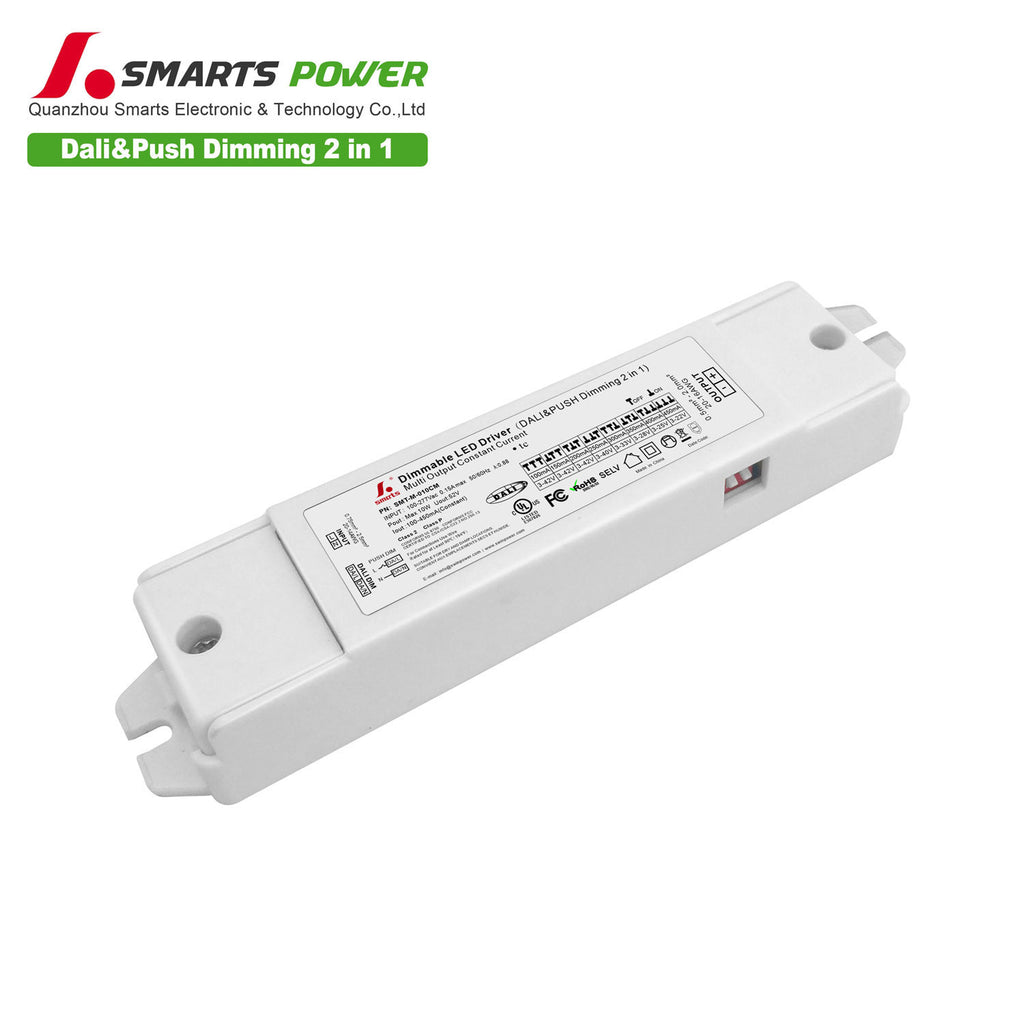

DALI & PUSH Dim Multi-Current Driver 10W (DIP Adjustment)

SMT-M-010CM
DALI Dimmable LED Driver
SMARTS
This led driver constant current is DALI&PUSH Dimmable type, with Multi-output current.  IP20 design for indoors lighting application. Provide 7 years warranty. Come to a smooth dimming.
Output Current*
SIZE*
Bulk Savings*
$38.08
$38.08

This led driver constant current is DALI&PUSH Dimmable type, with Multi-output current.  IP20 design for indoors lighting application. Provide 7 years warranty. Come to a smooth dimming.

DALI & PUSH Dim Multi-Current Driver 10W


DALI & PUSH Dim Multi-Current Driver 10W

DALI & PUSH Dim Multi-Current Driver 10W

DALI & PUSH Dim Multi-Current Driver 10W

DALI & PUSH Dim Multi-Current Driver 10W

DALI & PUSH Dim Multi-Current Driver 10W

※Input with DG126 terminals 3P: Live Wire AC (L), Neutral Wire AC(N)

※Output LED SEC with DG126 terminals 2P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.

※DALI or PUSH Dim. terminals with DG126 terminals 2P:

when DALI dimming, signal dimming DA1, DA2 ( No polar ) connected to the BUS of the DALI Master;

when PUSH dimming, (N) is connected to AC (N) while white (L) is connected to Push dim switch dimmer( L) ;

※Suggested wire diameter: Input 0.75-2mm2; Output:0.5-2mm2.



Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.

DALI & PUSH Dim Multi-Current Driver 20W Wiring diagram

DALI & PUSH Dim Multi-Current Driver 10W Wiring diagram
