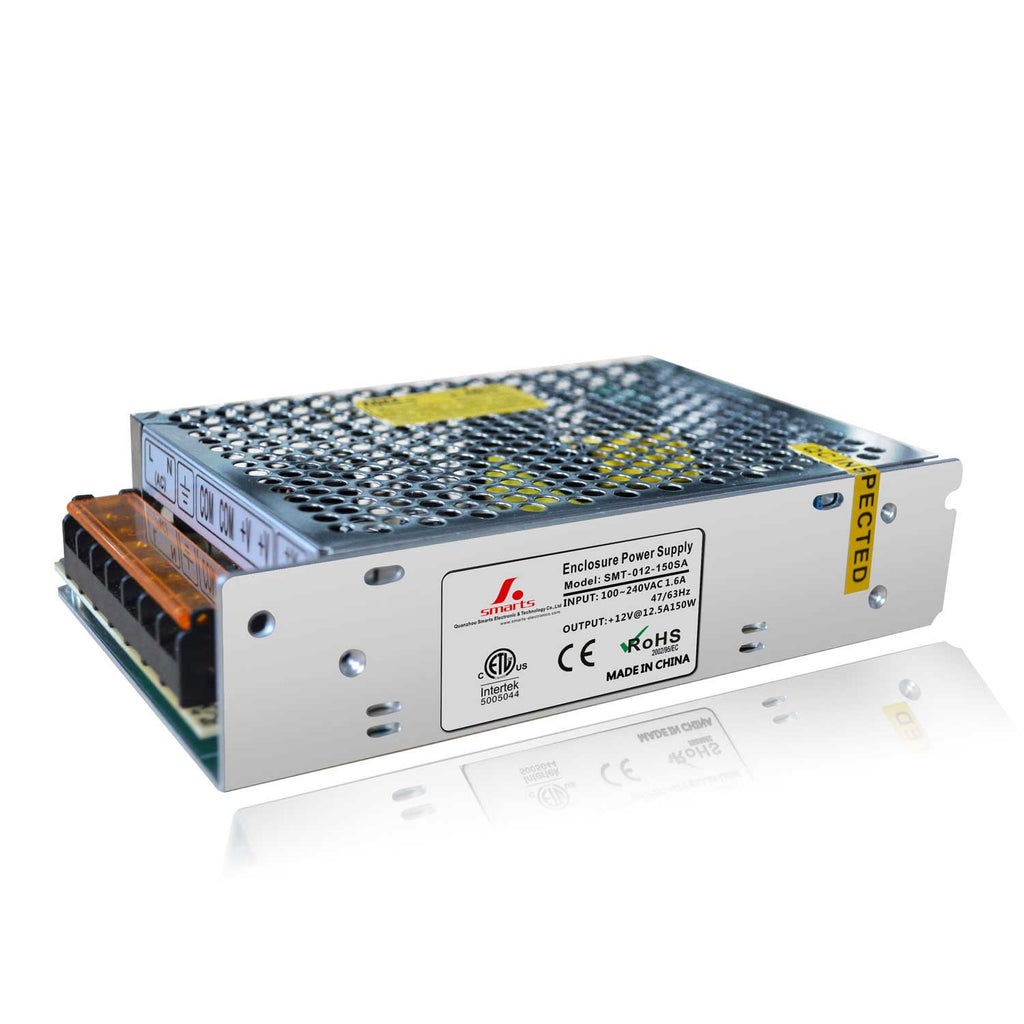

Enclosure LED Power Supply 150W
SMT-012-150SA
Enclosure Power Supply
SMARTS
SMT-024-150SA is a 150W 24V output voltage Net shell design led power supply, ip20 waterproof grade, honeycomb design good heat dissipation, passed the ETL, CE certification, warranty for two years...
SMT-024-150SA is a 150W 24V output voltage Net shell design led power supply, ip20 waterproof grade, honeycomb design good heat dissipation, passed the ETL, CE certification, warranty for two years
Product Input Specifications
| Input Voltage | Input Frequency | Input Current | Power Factor | 110V Inrush Current | 230V Inrush Current | Total Syntonic Wave |
| 100~240Vac | 40-60Hz | 1.00±0.002A | 0.73-0.85 | 25A | 45A | 20%Mac |
Product Input Specifications
| Output Voltage | Max. Output Power | Output Current | Efficiency | No-load power | Output Ripple | Load Regulation |
| 24±0.5Vdc | 150W | 6.25A±5% | >83%/110V, 220V | ≦240MV | ≦±10% |
Protection Function
overcurrent,overvoltage,overheat,short curcuit protection:Auto-recovery
Environmental Specifications
| Operation Temp. | Store Temp. | Raise Temp. | Operation Humidity | Using Field | ||
| -25~55℃ | -40~80℃ | ≤25℃ | 5-95%RH | Forbidding Strong Magnetic Field | ||
Reference Srandards
Safety Standards:GB195110.1-2004/IEC61347-1:2003 ETL,CE(EMC+LVD) certificate
EMC Standard:EN55015,EN61000,EN61547
