Triac Dimmmable CC LED Driver 12W (350mA)

SMT-035-0350CT
Triac Dimmable LED Driver
SMARTS
Model SMT-045-0320CT SMT-032-0320CT SMT-035-0350CT SMT-025-0700CT Output DC Current 320mA 320mA 350mA 700mA Current Accuracy ±5% Voltage Range 25~45V 15~32V 21~35V 10~25V Rated power 14W...
RATED CURRENT*
Input Voltage*
Bulk Savings*
$35.80
$35.80
Model SMT-045-0320CT SMT-032-0320CT SMT-035-0350CT SMT-025-0700CT
Output DC Current 320mA 320mA 350mA 700mA
Current Accuracy ±5%
Voltage Range 25~45V 15~32V 21~35V 10~25V
Rated power 14W 10W 12W 17.5W
Input Voltage Range 170~265VAC / 90-135VAC
Frequency Range 47~63HZ
Power Factor (Typ.) PF≧0.92/110V ; PF≧0.95/220V ; PF≧0.93/250V
Full Load Efficiency(Typ.) 85% 86% 85% 85%
AC Current(Typ.) 0.14A/110VAC  0.12 A/220VAC  0.01A/250VAC
Leakage current <0.27mA/110VAC; ﹤0.25mA/220VAC
Protection Short Circuit Hiccup mode, recovers automatically after fault condition is removed.
Over voltage ≦270VAC
Environment Working TEMP. -40~+60℃
Working Humidity 20~90%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z  axes
Safety&EMC Safety standards EN-60950-1, EN-61347-1-2
Withstand voltage I/P-O/P:3.75KVAC
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level (surge4KV)
Others Weight 0.16Kg/pcs

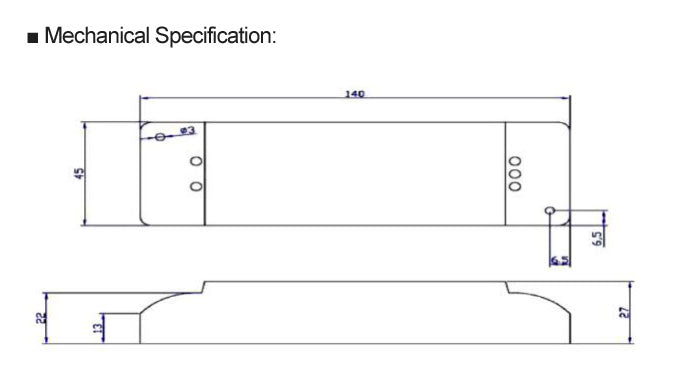

Size 140*45*28mm  mmm(L*W*H)
packing 324*298*176mm
Notes 1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3.  Tolerance:includes set us tolerance,line regulation and load regulation .


Triac Dimmmable Constant current LED Driver 20W

※Input with connecting terminal

※Output with connecting terminal

※Note: Any other requests we can customized.

■Dimming Operation

※Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac

dimmer.

※Compatible with Leading edge or tailing edge triac dimmers.

※please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to

achieve the output current to zero

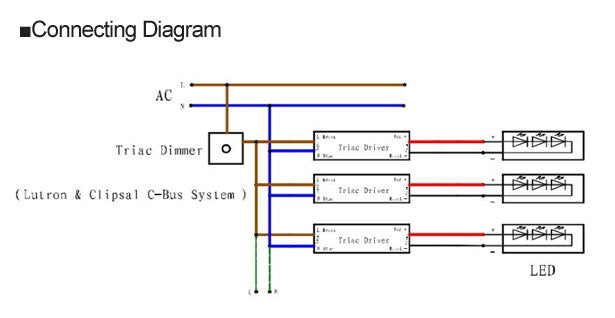

Triac Dimmmable Constant current LED Driver 20W Wiring diagram

Product Certificate
