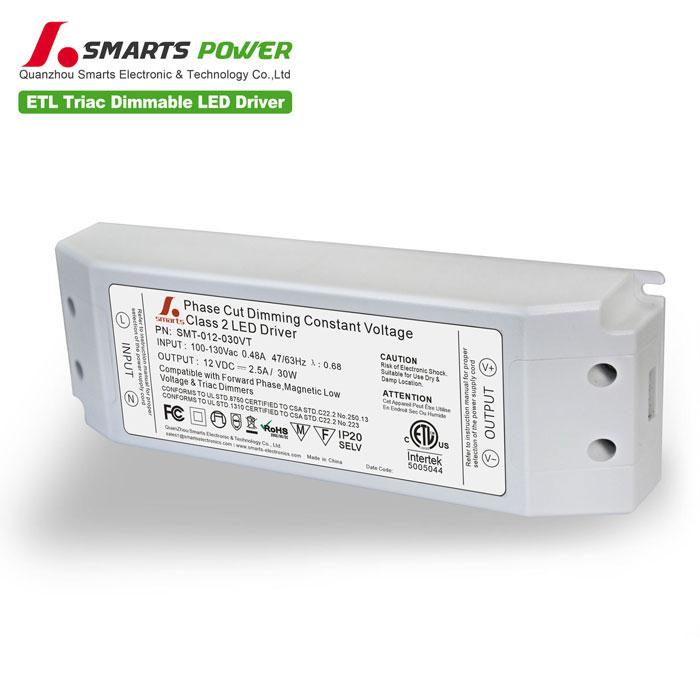

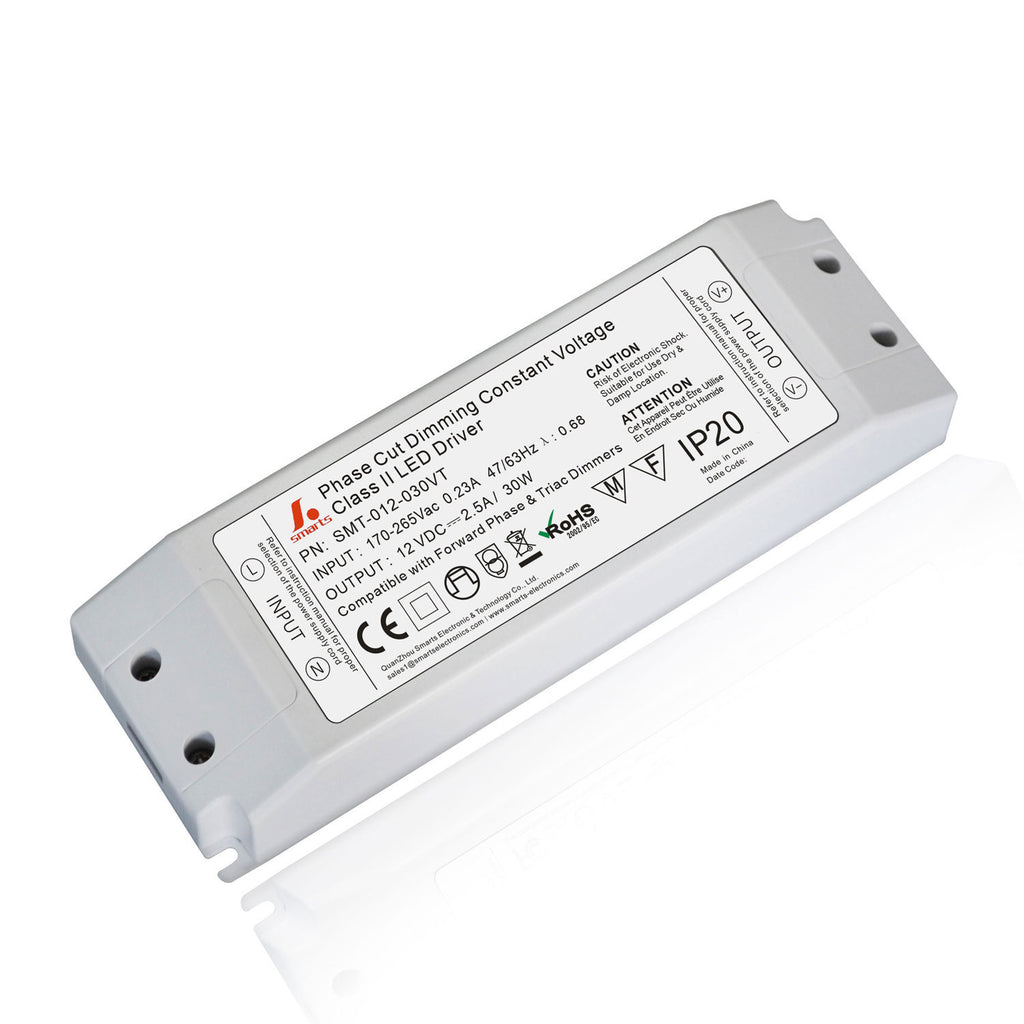

Triac Dimmable Driver 30W (Standard Size)
SMT-012-030VT
Triac Dimmable LED Driver
SMARTS
led Triac dimmable lighting led driver 24v 30w With overload and short circuit protection Max load around 90%.100-277Vac Can be used Trailing edge dimmer suitable.
Model
SMT-012-030VT
SMT-024-0...
led Triac dimmable lighting led driver 24v 30w With overload and short circuit protection Max load around 90%.100-277Vac Can be used Trailing edge dimmer suitable.
| Model | SMT-012-030VT | SMT-024-030VT | |
| Output | DC Voltage | 12V | 24V |
| Voltage Tolerance | ±0.5V | ||
| Rated current | 2.5A | 1.25A | |
| Rated power | 30W | ||
| Input | Voltage Range | 100-130Vac(UL,ETL) 170-265Vac(CE) 180-265Vac(SAA) |
|
| Frequency Range | 47~63HZ | ||
| Power Factor | PF≥ 0.95 (Full loading) | ||
| Efficiency(Typ.) | 81% | 83% | |
| AC Current(Max.) | 0.41A | 0.4A | |
| Leakage current | ﹤0.50mA/120VAC | ||
| Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | |
| Over Current | ≤1.2*I out | ||
| Over Loading | ≤120% | ||
| Over temperature | 100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down. | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~90%RH, non-condensing | ||
| Storage TEMP. Humidity | -40~+80℃,10~95%RH | ||
| TEMP .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,2G 12min./1 cycle,period for 72min. each along X,Y,Z axes | ||
| Safety& EMC | Safety standards | UL8750+UL1310 Class 2 unit | |
| Withstand voltage | I/P-O/P:1500VAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC Part 15 B | ||
| Others | Net. Weight | 0.55Kg | |
| Size | 180*60*35mm(L*W*H) | ||
| packing | 350*195*180mm 20PCS/CTN | ||
| Notes | 1. All parameters if NOT specially mentioned are measured at 120VAC/220VAC input , rated load and 25℃ of ambient temperature. | ||
| 2. To extend the driver's using life ,please reduce the loading at lower input voltage. | |||
| 3.Loading should be 60-100%. | |||
n?Input AC (L),AC(N)
n?Output(DIM+),(DIM-)
Dimming Operation
n?Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
n?Compatible with Leading edge or tailing edge triac dimmers.
n?please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero
