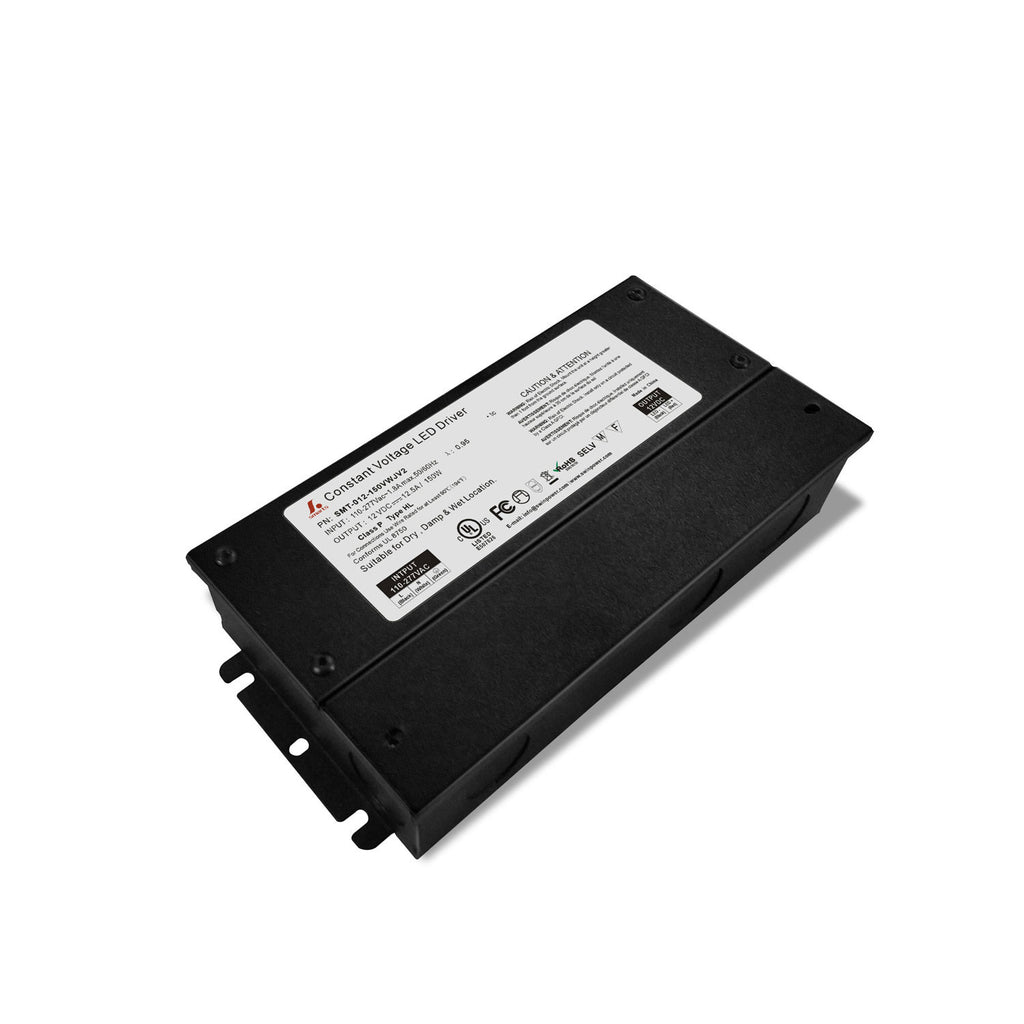

Non-Dimmable J-Box Driver 150W

SMT-012-150VWJWV2
Non-dimmable LED Driver
SMARTS
led driver 150w 12v a series of selv J-Box driver 12Vdc 24Vdc with UL, FCC, Class P, Type HL standard.The installation is easy, and the sealing is extremely strong, and it can work stably in harsh ...
Output Voltage*
SIZE*
Bulk Savings*
$136.00
$136.00

led driver 150w 12v a series of selv J-Box driver 12Vdc 24Vdc with UL, FCC, Class P, Type HL standard.The installation is easy, and the sealing is extremely strong, and it can work stably in harsh environments.

Model SMT-012-150VWJ (1.0 ver.)
SMT-012-150VWJV2 (2.0 ver.)
SMT-012-150VWJWV2 (3.0 ver.)
SMT-024-150VWJ (1.0 ver.)
SMT-024-150VWJV2 (2.0 ver.)
SMT-024-150VWJWV2 (3.0 ver.)
SMT-048-150VWJ (1.0 ver.)
SMT-048-150VWJV2 (2.0 ver.)
SMT-048-150VWJWV2 (3.0ver.)
Output DC Voltage 12V 24V 48V
Voltage Tolerance ±0.5V
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Rated current 12.5A 6.25A 3.125A
Rated power 150W
Input Voltage Range 110-277VAC
Frequency Range 47-63Hz
Power Factor(Typ.)@ full load 0.99@120V ;0.97@230V ; 0.99@120V ; 0.96@230V ;0.94@277V 0.99@120V ; 0.97@230V ;0.95@277V
0.95@277V
THD(Typ.)@ full load <10% @120V    <20%@230V      <20% @277V
Efficiency (Typ.) @ full load 85%@120V  89%@230V  88%@277V 86%@120V  89%@230V 88%@277V 87%@120V  90%@230V
AC Current (Max.) 1.8A (100VAC)
Inrush Current (Typ.) 15A,50% ,1.4ms@120V ;55A,50% 220us@230V ; 30A,50% 1.4ms@277V
Leakage current <0.50mA
Protection Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading ≤120% constant current limiting, auto-recovery
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20~90%RH, non-condensing
Storage TEMP. Humidity -40~+80℃,10~95%RH
TEMP .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle, period for  60min. each along X,Y,Z axes
  Safety standards UL8750
  Withstand voltage I/P-O/P:1.88KVAC
  Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
Safety&EMC EMC EMISSION FCC Part 15 B
Others N.W. 1.5Kg/pcs
Size 1.0 version: 260*103*46mm / 2.0 version:260*105*45mm /3.0 version:260*125*45mm
packaging 440*295*145mm ,10PCS/CTN
Notes 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.


12Vdc 24Vdc Non-Dimmable J-Box Driver 150WNon-Dimmable J-Box Driver 150W Connecting Diagram

Product Certificate
