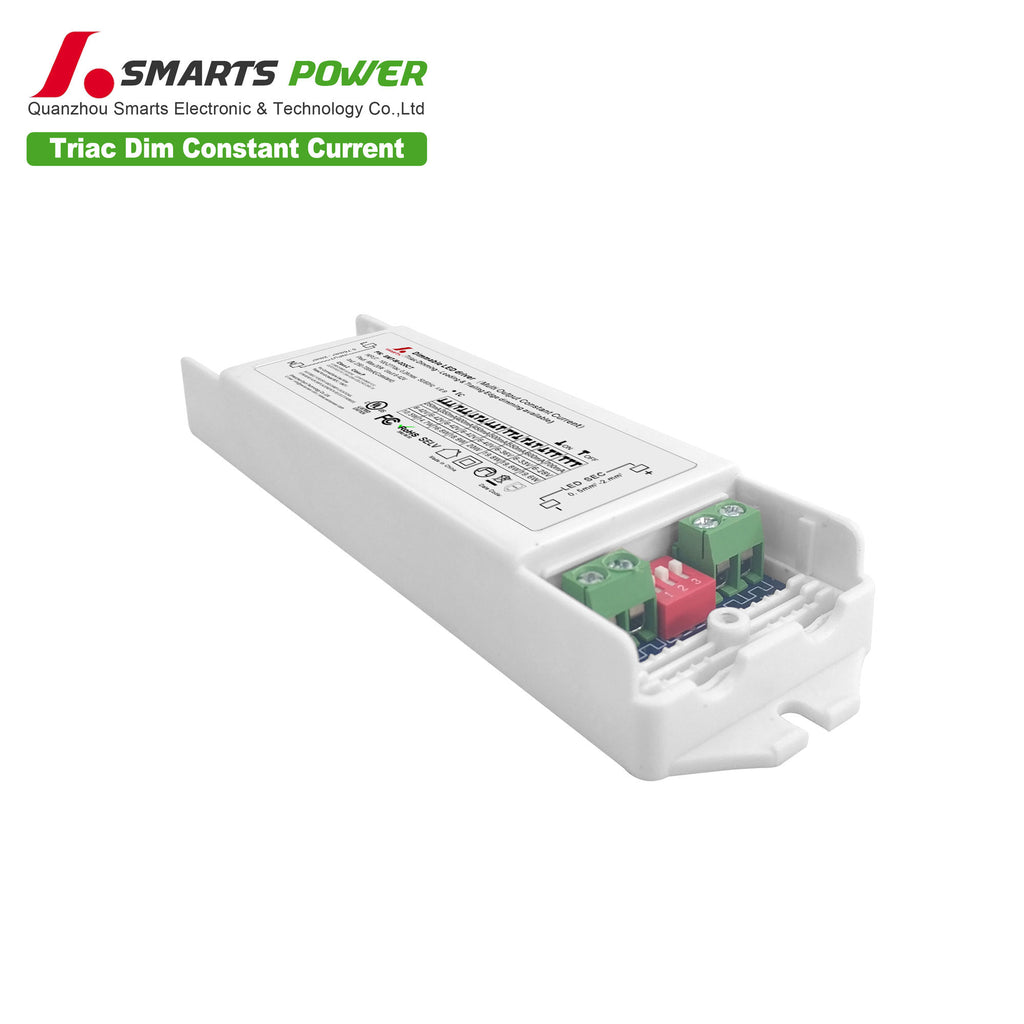

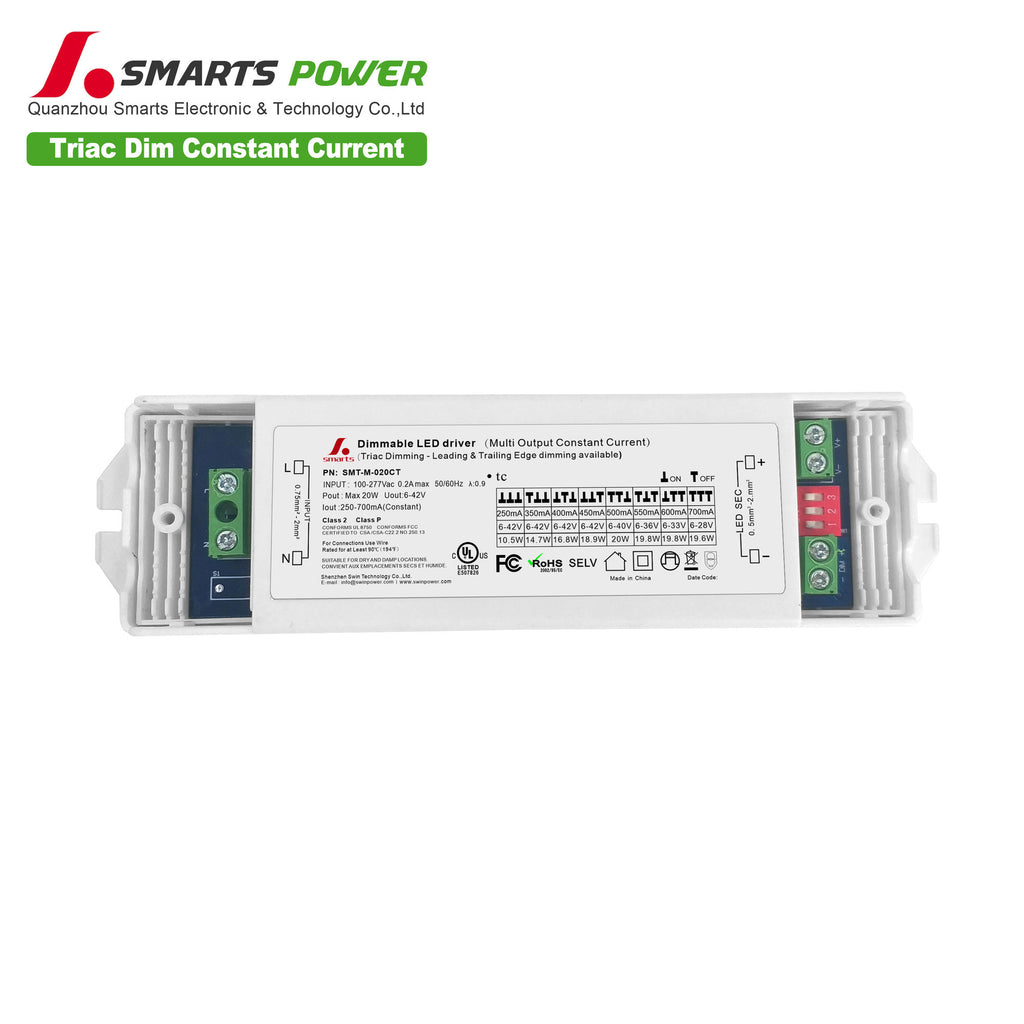

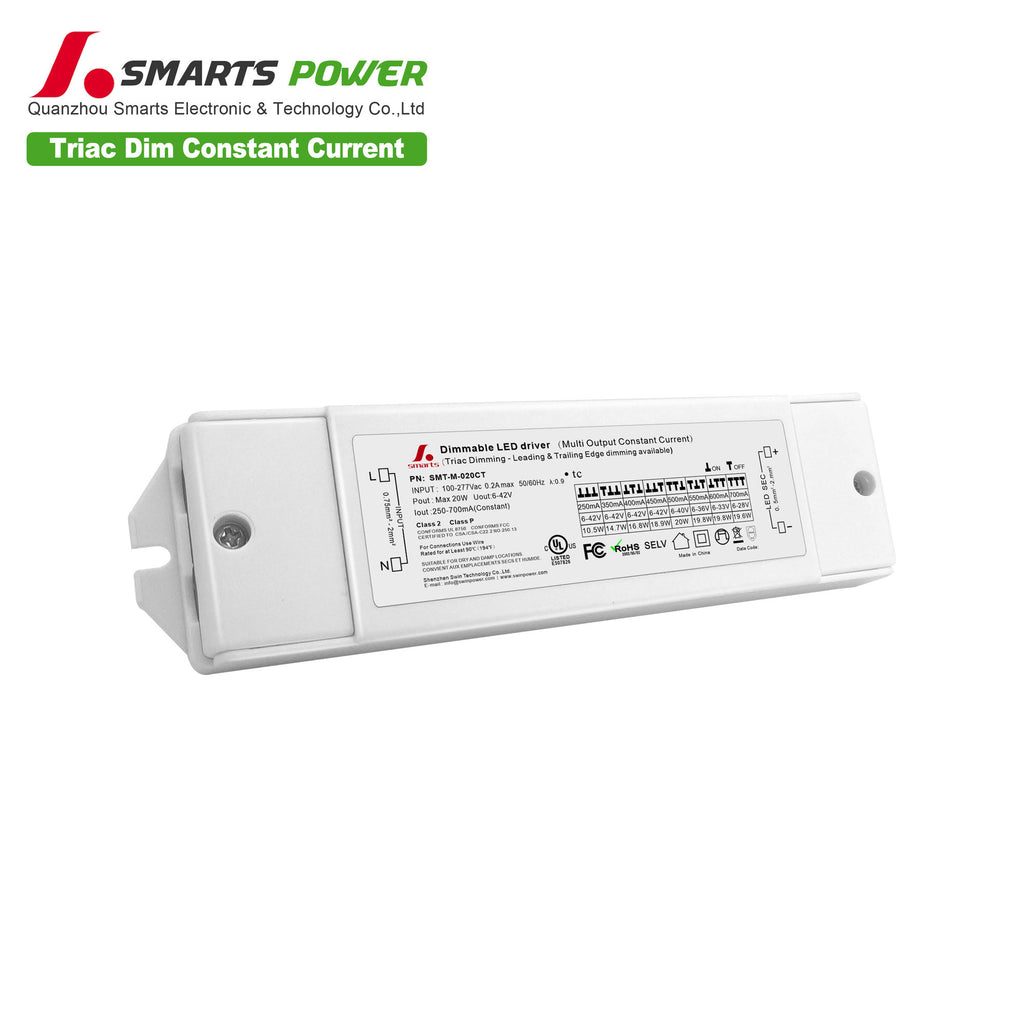

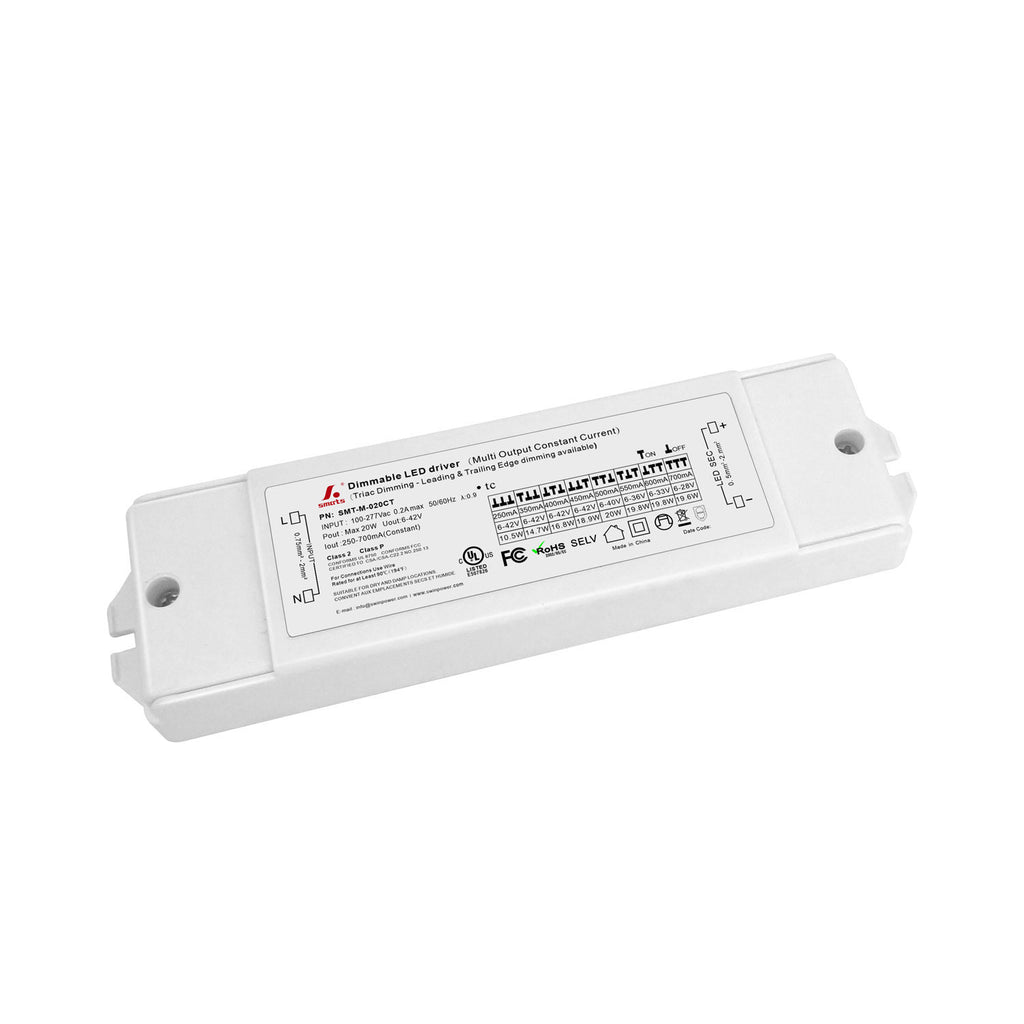

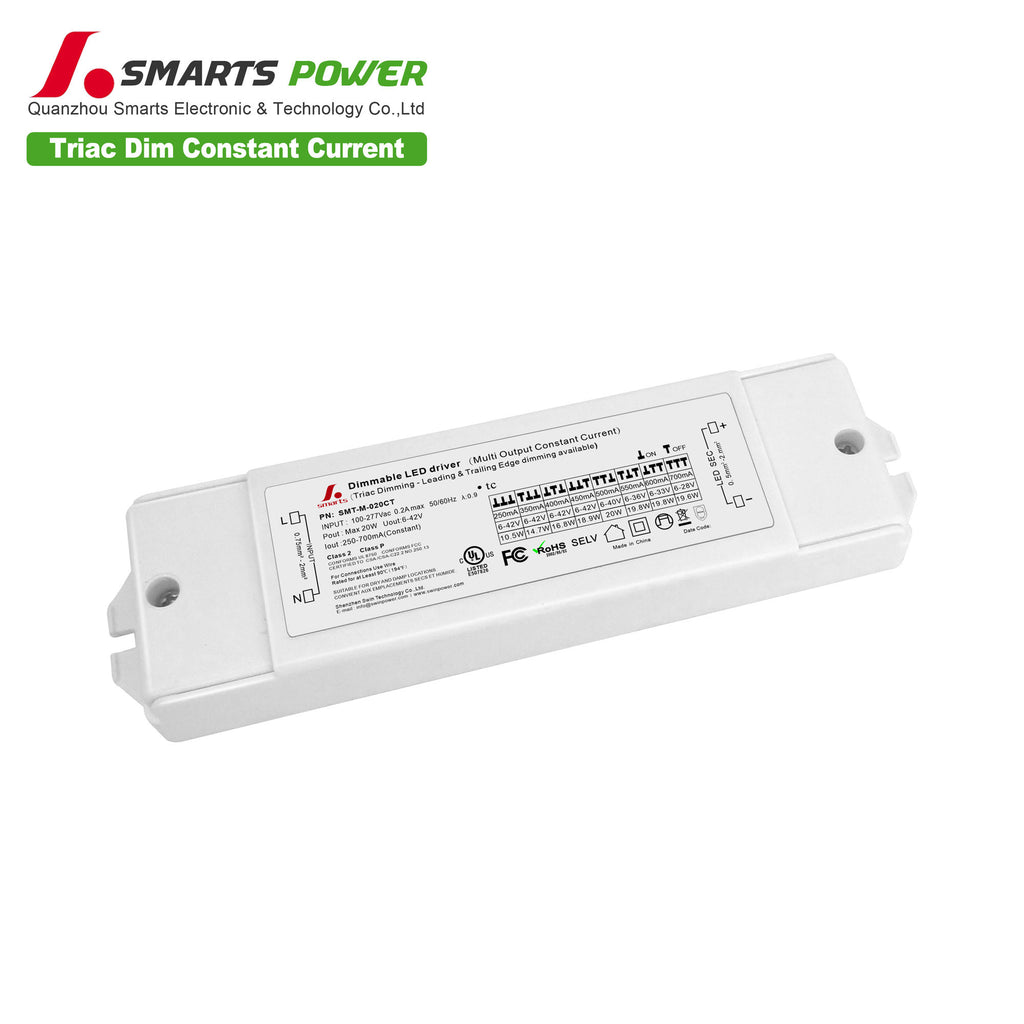

Triac Dim Multi-Current Driver 20W (DIP Adjustment)

SMT-M-020CT
Triac Dimmable LED Driver
SMARTS
UL-certified multi-current 20W triac dimming LED power supply can quickly change the output current according to the requirements of different scenarios. It is simple and convenient to use. It can ...
Output Current*
SIZE*
Bulk Savings*
$40.00
$40.00

UL-certified multi-current 20W triac dimming LED power supply can quickly change the output current according to the requirements of different scenarios. It is simple and convenient to use. It can be used with 20W LED downlight.

Triac Dimmable Multi-Current Driver 20W (DIP Adjustment)

Triac Dimmable Multi-Current Driver 20W (DIP Adjustment)
Triac Dimmable Multi-Current Driver 20W (DIP Adjustment)
Triac Dimmable Multi-Current Driver 20W (DIP Adjustment)
Triac Dimmable Multi-Current Driver 20W (DIP Adjustment)


Triac Dimmable multi-current 20W

 ※Input terminals "Black" and "White" to connect to AC L and N.
※Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged

■ Dimming Operation and Connecting Diagram
TRIAC/Phase cut dimming
1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
2.Work with forward phase /leading edge ,MLV and reverse phase /trailing edge ,ELV,TRIAC dimmers.
3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.

Triac Dimmable multi-current 20W
