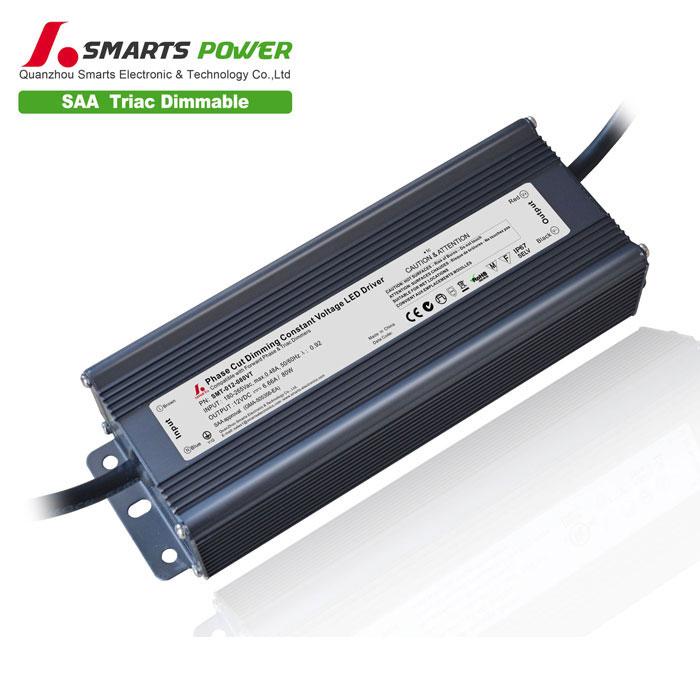

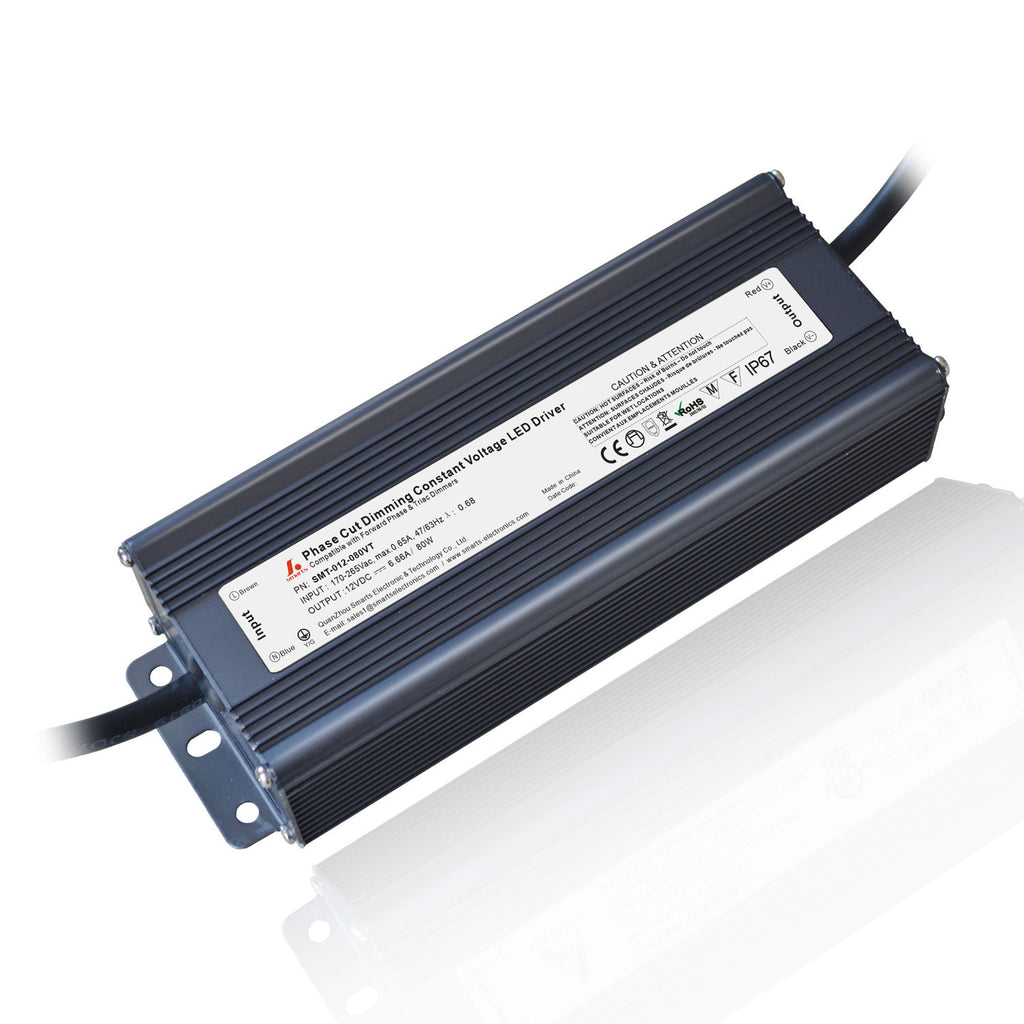

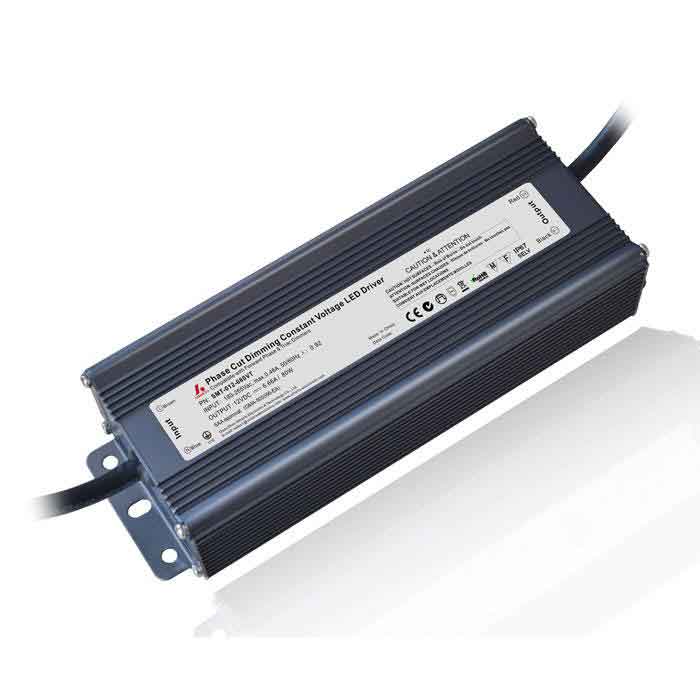

Triac Dimmable Driver 80W (Standard Size)
SMT-012-080VT
Triac Dimmable LED Driver
SMARTS
triac dimmable 12v 24v led lights driver 80W Aluminum case IP67it's could indoor or outdoor LED illuminating lights, Dimming led driver 80W Class P,type HL approval,Strong compatibility.
Model
...
triac dimmable 12v 24v led lights driver 80W Aluminum case IP67
it's could indoor or outdoor LED illuminating lights, Dimming led driver 80W Class P,type HL approval,Strong compatibility.
| Model | SMT-012-080VT | SMT-024-080VT(Class 2) | |
| Output | DC Voltage | 12V | 24V |
| Voltage Tolerance | ±0.5V | ||
| Rated current | 6.6A | 3.3A | |
| Rated power | 80W | ||
| Input | Voltage Range | 100-130Vac(UL,ETL) 170-265Vac(CE) 180-265Vac(SAA) |
|
| Frequency Range | 47~63HZ | ||
| Power Factor | PF≥ 0.95 (Full loading) | ||
| Efficiency(Typ.) | 82% | 85% | |
| AC Current(Max.) | 1.02A | 1A | |
| Leakage current | ﹤0.50mA/120VAC | ||
| Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | |
| Over Current | ≤1.2*I out | ||
| Over Loading | ≤120% | ||
| Over temperature | 100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down. | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~95%RH, non-condensing | ||
| Storage TEMP. Humidity | -40~+80℃,10~95%RH | ||
| TEMP .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,5G 12min./1 cycle,period for 72min. each along X,Y,Z axes | ||
| Safety standards | UL1012 (12VDC) / UL8750+UL1310 Class 2 unit (24VDC) | ||
| Safety& EMC | Withstand voltage | I/P-O/P:1500VAC | |
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC Part 15 B | ||
| Others | Net. Weight | 0.95 Kg | 1.55Kg (with junction box) |

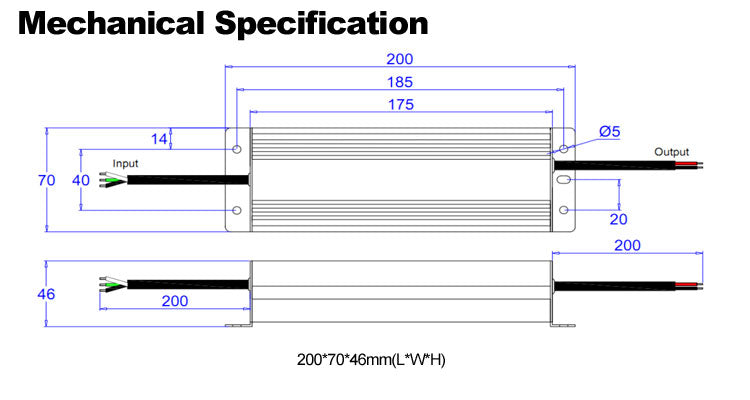

| Size | 200*70*46mm(L*W*H) | 350*77*57mm(L*W*H) (with junction box) | |
| packing | 329*279*176mm 10PCS | 350*85*65mm 10PCS | |
| Notes | 1. All parameters if NOT specially mentioned are measured at 120VAC/220VAC input , rated load and 25℃ of ambient temperature. | ||
| 2. To extend the driver's using life ,please reduce the loading at lower input voltage. | |||
| 3.Loading should be 60-100%. | |||
Input Brown with AC (L),Blue with AC(N),Green/Yellow with AC(G)
Output Red is£¨DIM+£©,Black is£¨DIM-£©
Dimming Operation
n?Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
n?Compatible with Leading edge or tailing edge triac dimmers.
n?please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero
