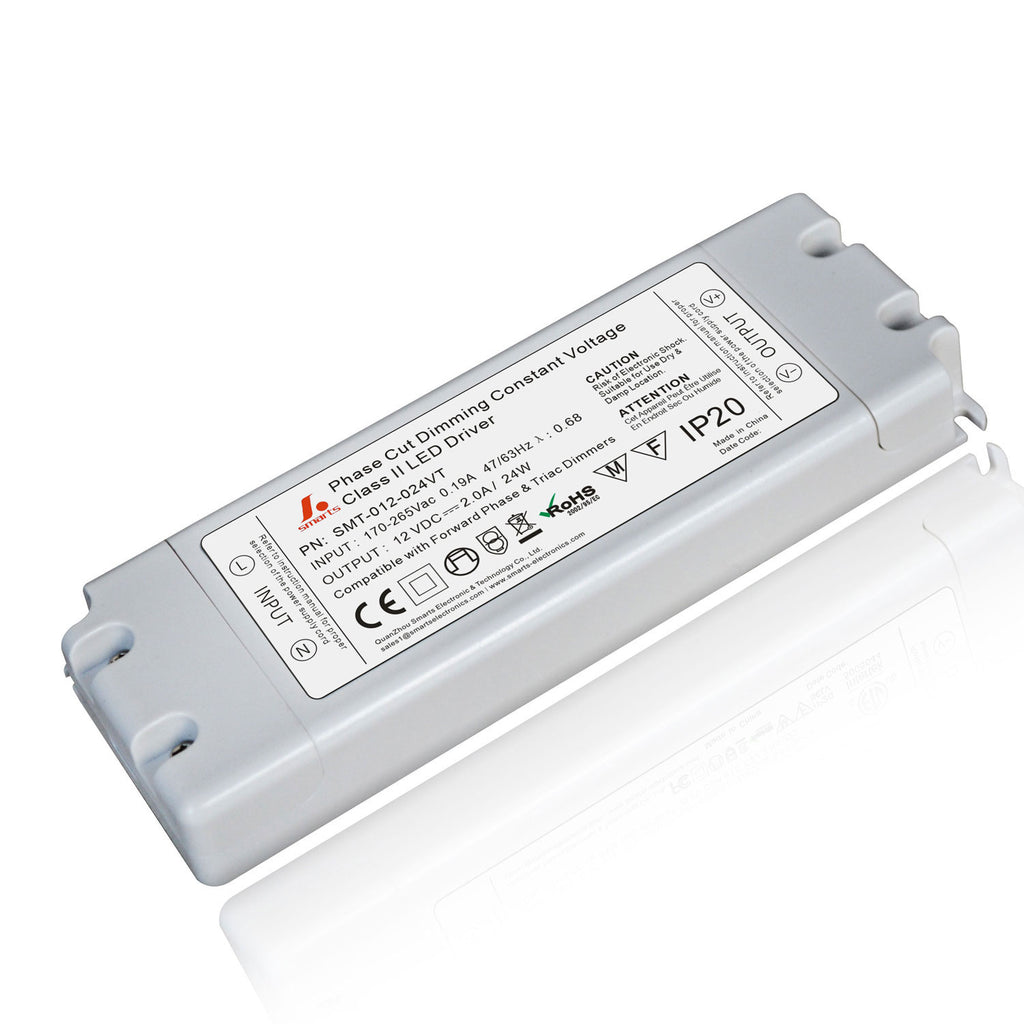

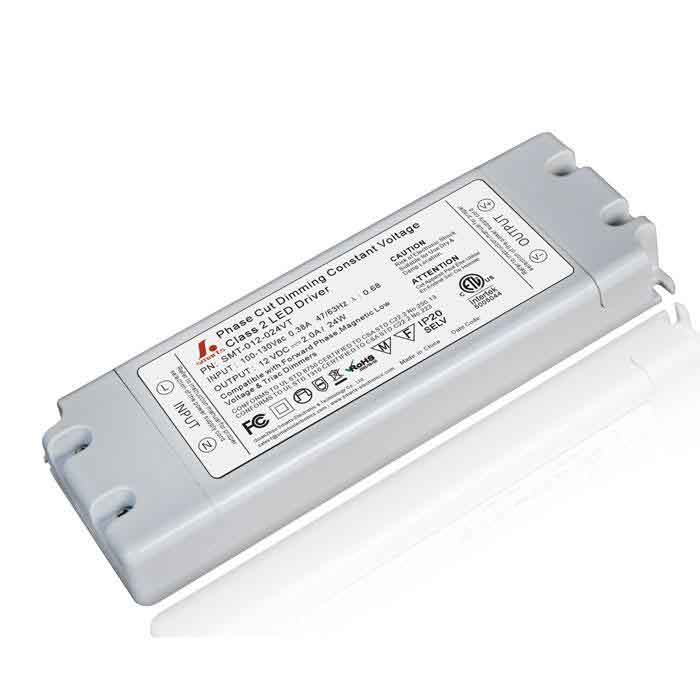

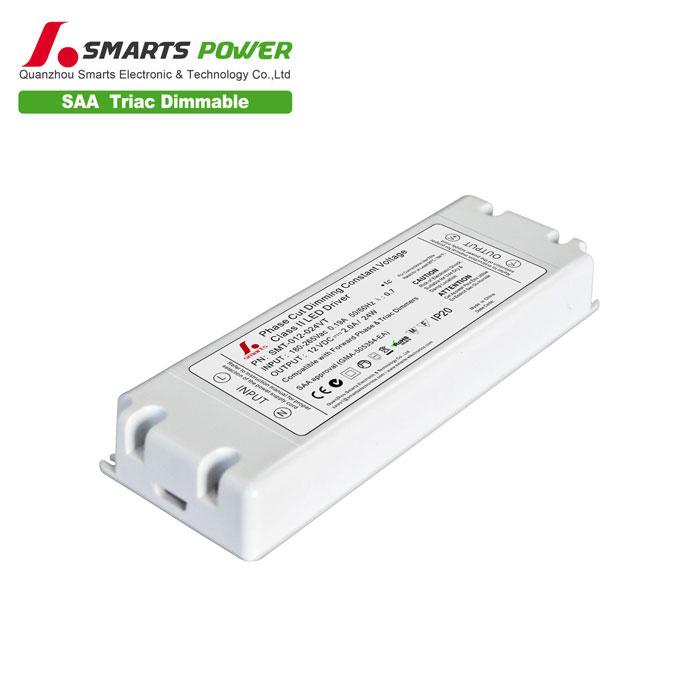

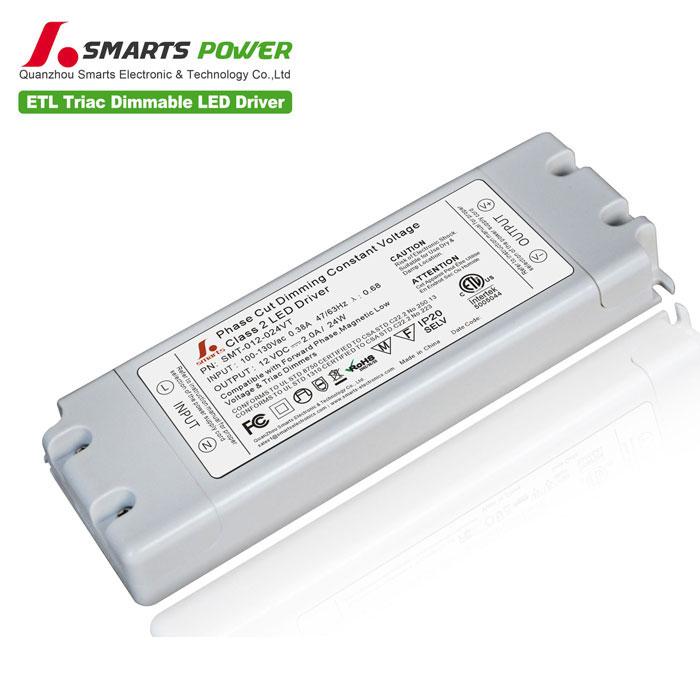

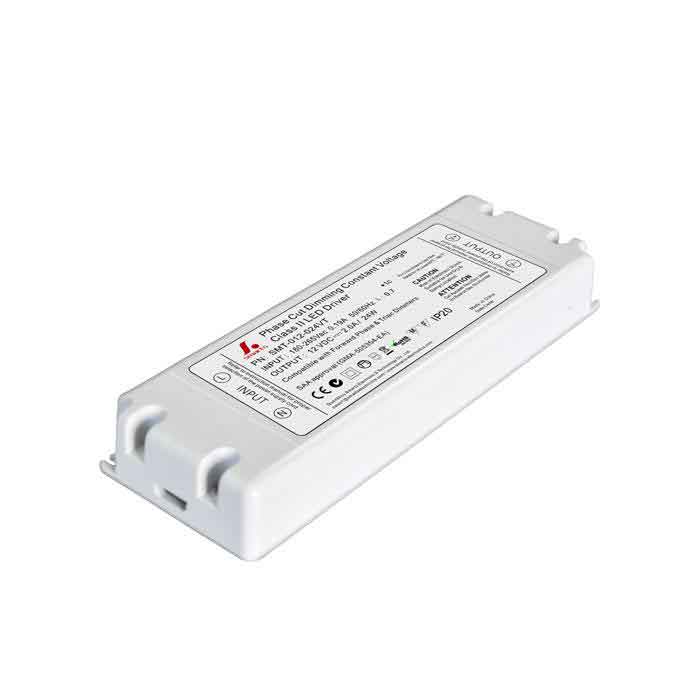

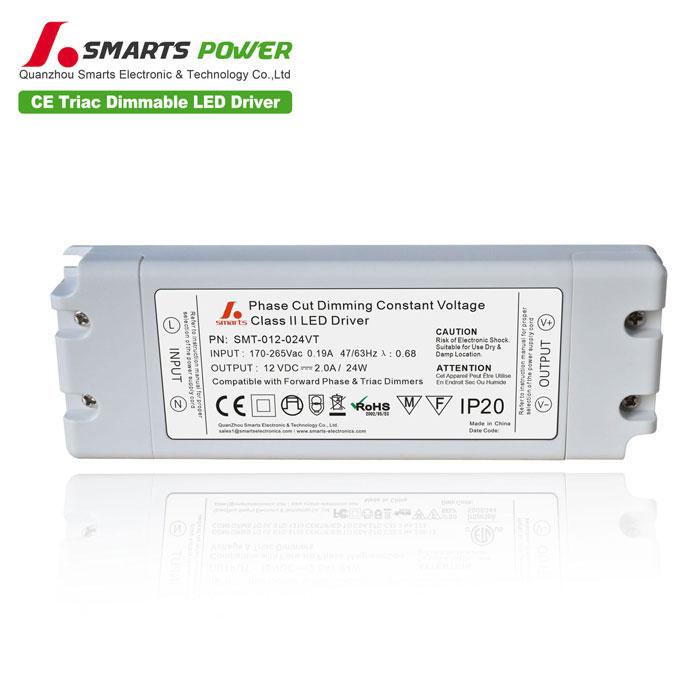

Triac Dimmable Driver 24W (Standard Size)

SMT-012-024VT
Triac Dimmable LED Driver
SMARTS
Triac dimmable constant voltage led driver 12 24w Class 2 use for indoor with plastic case led power supply 1A. It can be matched Triac dimmer 220V to achieve a smooth dimming effect. Model SMT...
Output Voltage*
Certification*
Bulk Savings*
$44.80
$44.80

Triac dimmable constant voltage led driver 12 24w Class 2 use for indoor with plastic case led power supply 1A. It can be matched Triac dimmer 220V to achieve a smooth dimming effect.

Model SMT-012-024VT SMT-024-024VT
output DC Voltage 12V 24V
Voltage Tolerance ±0.5V
Rated current 2.08A 1.04A
Rated power 24W
input Voltage Range 100-130Vac(ETL)
170-265Vac(CE)
180-265Vac(SAA)
Frequency Range 47~63HZ
Power Factor (Typ.) PF≥0.65
Efficiency(Typ.) >81% >84%
AC Current(Typ.) 0.9A 0.9A
Leakage current ﹤0.50mA/120VAC
Protection Short Circuit Hiccup mode, recover automatically after fault condition is removed
Over Current ≤1.2*I out
Over Loading ≤120%
Over temperature 100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down
Environment Working TEMP. -40~+60℃
Working Humidity 20~90%RH, non-condensing
Storage TEMP. Humidity -40~+80℃,10~95%RH
TEMP .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,2G 12min./1 cycle,period for 72min. each along X,Y,Z axes
  Safety standards UL8750+UL1310  Class 2 unit
Safety& EMC Withstand voltage I/P-O/P:1500VAC
  Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
  EMC EMISSION FCC Part 15 B

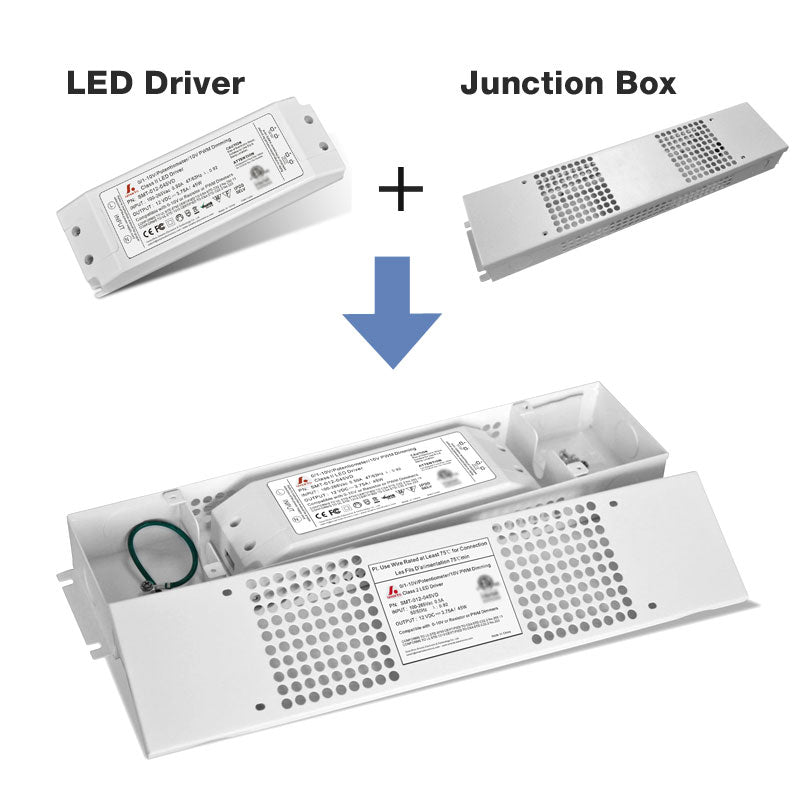

others Net. Weight 0.68kg=0.21kg(driver)+0.47kg(J10) 073kg=0.21kg(driver)+0.52kg(J12-2)
Size 350*77*26mm(L*W*H) 350*77*37mm(L*W*H)
Packing 430*375*150mm     20PCS/CTN 430*375*190mm     20PCS/CTN
Notes 1. All parameters if NOT specially mentioned are measured at 110VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
3. Loading should be 5-100%.

Triac Dimmable Driver 24W

Input (L) and (N)?with?wires to be connected AC.

Output LED SEC :(LED+) (LED-)

Dimming Operation

The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.

Usually matching with leading edge Triac Dimmers( Can customized as a driver only matching trailing edge Triac Dimmers if needed).

Please try to use dimmers with power at least 2.5 times as the output power of the driver.

for Forward phase,Magnetic low voltage and Triac Dimmers


Triac Dimmable Driver 12W Connecting Diagram

Triac Dimmable Driver 12W Simple Connecting Diagram
