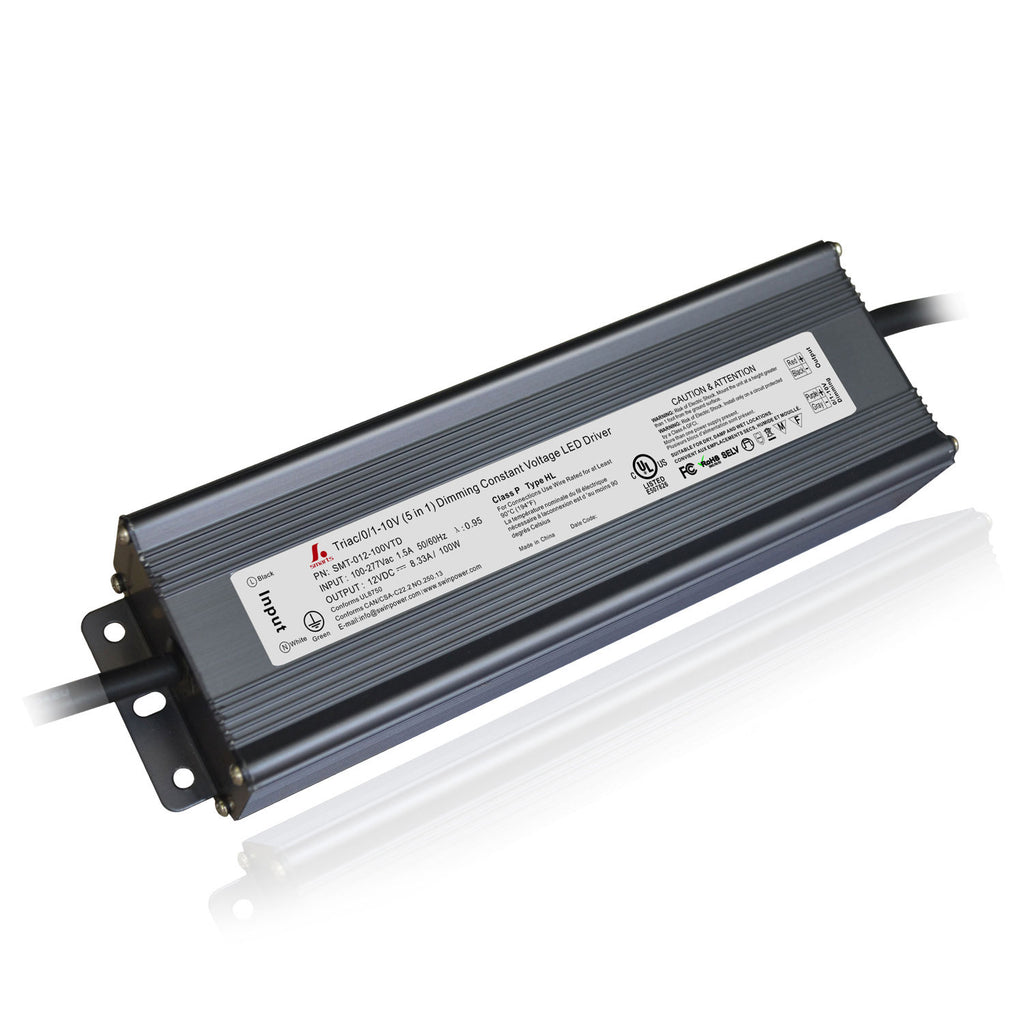

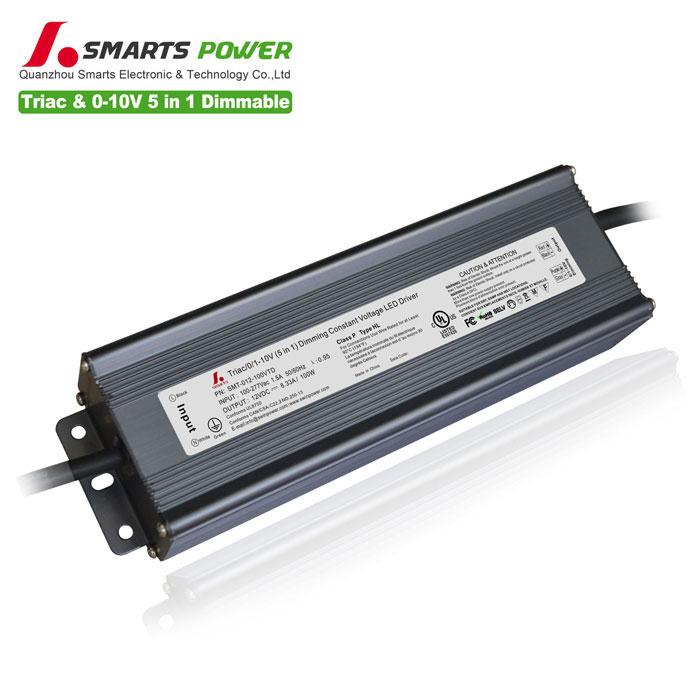

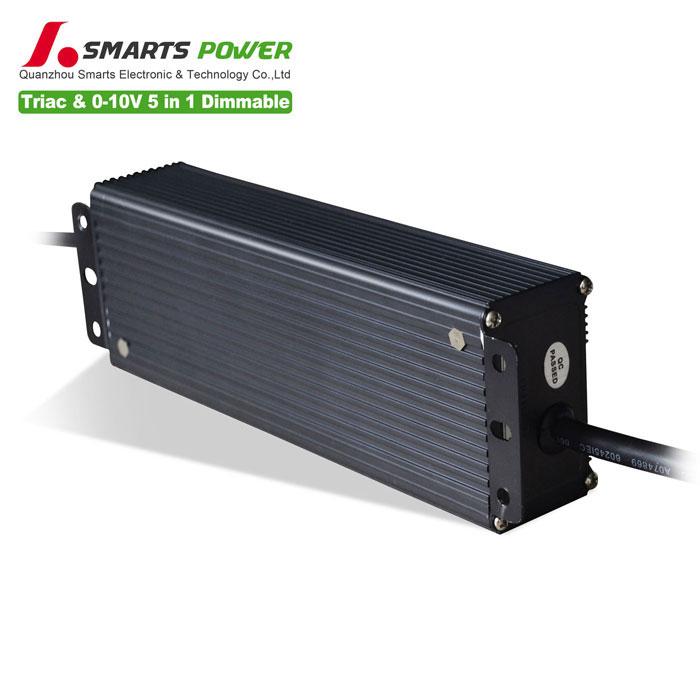

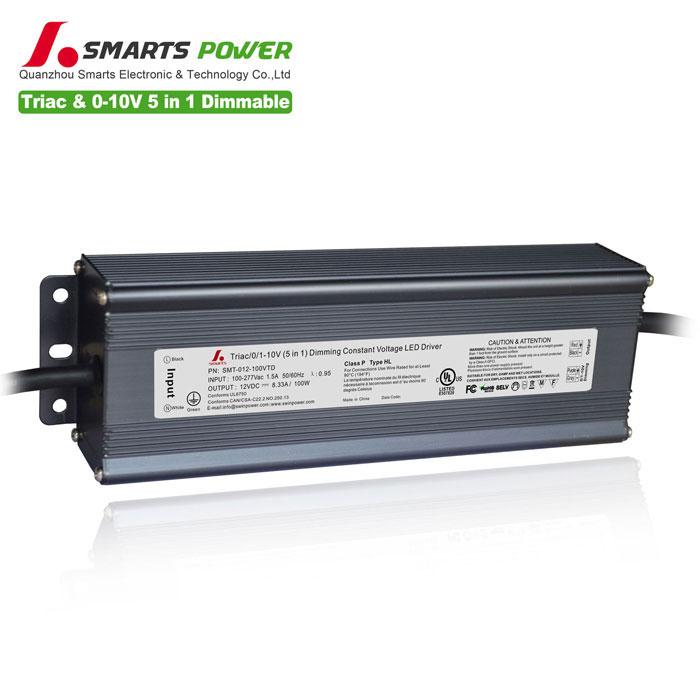

5 in 1 Dimmable LED Driver 100W (Standard Size)

SMT-012-100VTD
5 in 1 Dimmable LED Driver
SMARTS
SMARTS VTD series is 5 in 1 waterproof dimmable led driver, Passed UL certification, This waterproof dimmable electronic led driver 12v 100w Suitable for outdoor work projects, Suitable for wet out...
Output Voltage*
Size*
Bulk Savings*
$149.40
$149.40

SMARTS VTD series is 5 in 1 waterproof dimmable led driver, Passed UL certification, This waterproof dimmable electronic led driver 12v 100w Suitable for outdoor work projects, Suitable for wet outdoor work projects. It can power the amplighting LED spotlight and provide effective protection

Triac/0-10V/1-10V/Potentiometer/10V PWM 5 in 1 Dimmable constant voltage LED driver

model SMT-012-100VTD SMT-024-096VTD
Output DC Voltage 12V 24V
Voltage Accuracy ±0.5V
Voltage Regulation ±0.5%
Rated current 8.33A 4.0A
Rated power 100W 96W
Input Voltage Range 100~277V AC
Frequency Range 47~63HZ
Power Factor ( Typ.) 0.99@120VAC   0.96@277VAC 0.98@120VAC; 0.95@277VAC
THD(Typ. ) @ full load <20%@120VAC &277VAC
Full Load Efficiency(Typ.) 80%@120VAC   83%@277VAC 83%@120VAC   86%@277VAC
AC Current(Typ.) 1.4A
Inrush Current (Typ.) 20A, 50%, 1.6ms @120VAC;   25A, 50% 1.2ms @277VAC
Leakage current <0.5mA
Protection Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Over Loading ≤120% constant current limiting, auto-recovery
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20 - 95%RH,non-condensing
Storage TEM.,Humidity -40 - +80℃,10 - 95%RH
TEMP.coefficient ±0.03%/℃(0 - 50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards UL8750 + UL1310, class 2 CAN/CSA-C22.2 No.250.13
Withstand voltage I/P-O/P:1.88KVac
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION FCC 47 CFR Part 15 ,Subpart B
Others Net Weight 1.1Kg
Size 230*70*43mm(L*W*H)
packing Carton size: 340*275*170mm , 10PCS/ctn
Notes 1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃ of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

Triac/0-10V/1-10V/Potentiometer/10V PWM 5 in 1 Dimmableconstant voltage LED driver 100W

Triac/0-10V/1-10V/Potentiometer/10V PWM 5 in 1 Dimmableconstant voltage LED driver 100w

Triac/0-10V/1-10V/Potentiometer/10V PWM 5 in 1 Dimmableconstant voltage LED driver 100W

Triac/0-10V/1-10V/Potentiometer/10V PWM 5 in 1 Dimmableconstant voltage LED driver 100w

Triac &amp;   0-10V 5 in 1 Dimmable LED Driver 100W

Dimming Operation and Connecting Diagram


¡ùUsing two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;


¡ùUsing one dimming ---TRIAC/Phase cut dimming


1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
2.Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers
3.Min loading is about 10%
4.Please try to use dimmers with power at least 1.5 times as the output power of the driver.

Triac & 0

-10V 5 in1 Dimmable LED Driver 100W Connecting Diagram
