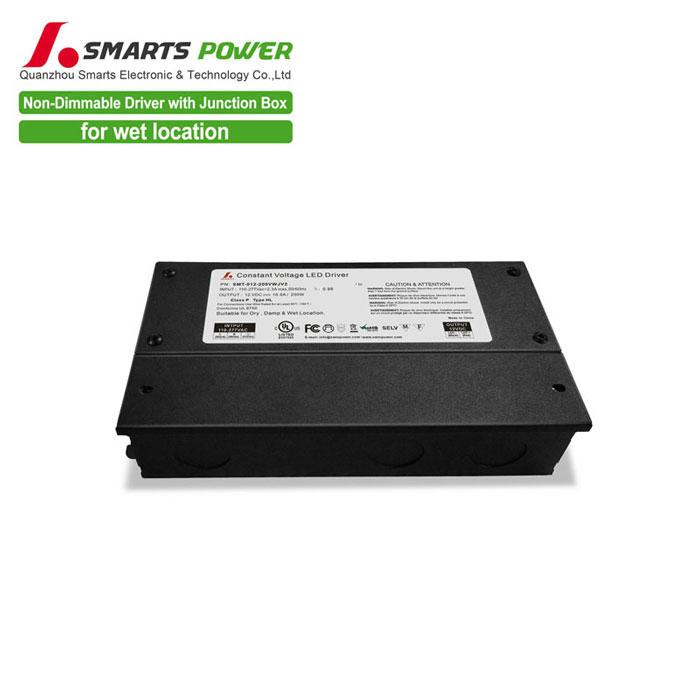

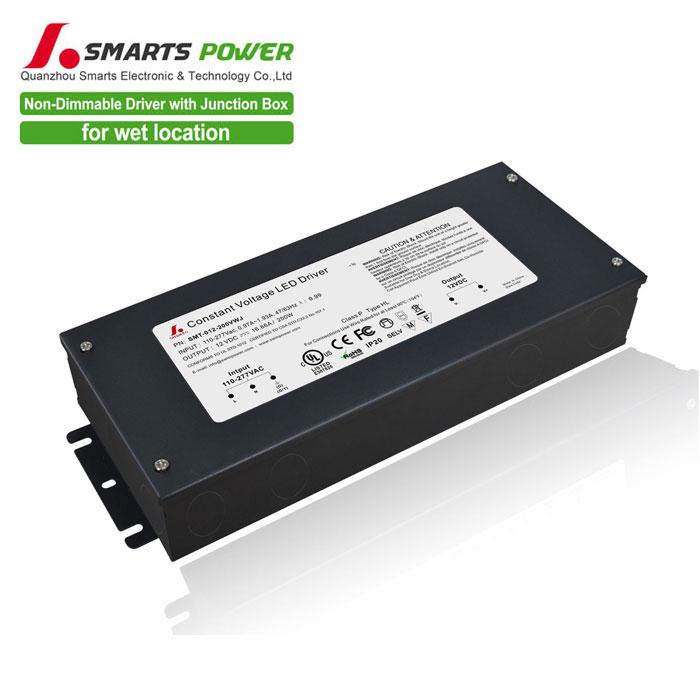

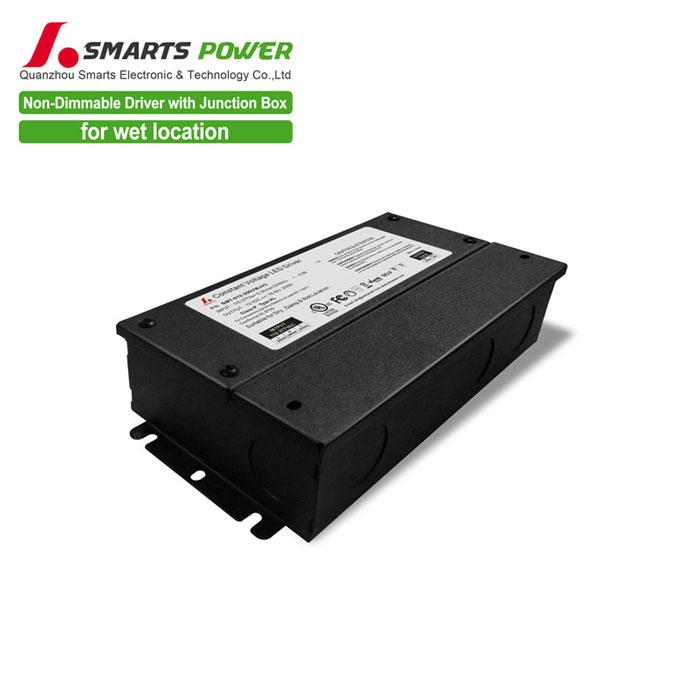

Non-Dimmable J-Box Driver 200W

SMT-012-200VWJV2
Non-dimmable LED Driver
SMARTS
UL 200w led power supply 12Vdc 24Vdc led driver selv ip20.With overload protection function, to make theLED strip work more stably. Model SMT-012-200VWJ (1.0 ver.)SMT-012-200VWJV2 (2.0 ver.)SMT...
Output Voltage*
SIZE*
Bulk Savings*
$149.20
$149.20

UL 200w led power supply 12Vdc 24Vdc led driver selv ip20.With overload protection function, to make theLED strip work more stably.

Model SMT-012-200VWJ (1.0 ver.)
SMT-012-200VWJV2 (2.0 ver.)
SMT-012-200VWJWV2 (3.0 ver.)
SMT-024-200VWJ (1.0 ver.)
SMT-024-200VWJV2 (2.0 ver.)
SMT-024-200VWJWV2 (3.0 ver.)
SMT-048-200VWJ (1.0 ver.)
SMT-048-200VWJV2 (2.0 ver.)
SMT-048-200VWJWV2 (3.0 ver.)
Output DC Voltage 12V 24V 48V
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Voltage Tolerance ±0.5V
Load Regulation ±2% ±1% ±1%
±1%
Rated current 16.67A 8.33A 4.16A
Rated power 200W
Input Voltage Range 110-277VAC
Frequency Range 47-63Hz
Power Factor(Typ.)@ full load 0.99@120V ;0.98@230V ; 0.99@120V ; 0.97@230V ; 0.98@120V ; 0.98@230V ;
0.97@277V 0.96@277V 0.97@277V
THD(Typ.)@ full load <10% @120V    <20%@230V      <20% @277V
Efficiency(Typ.)@ full load 85%@120V;88%@230V  87%@277V 85%@120V;89%@230V  88%@277V 86%@120V;90%@230V
AC Current(Max.) 2.3A (100VAC)
Inrush Current (Typ.) 15A,50% ,1.4ms@120V ;55A,50% 220us@230V ; 30A,50% 1.4ms@277V
Leakage current <0.50mA
Protection Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading ≤120% constant current limiting, auto-recovery
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20~90%RH, non-condensing
Storage TEMP. Humidity -40~+80℃,10~95%RH
TEMP .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle, period for  60min. each along X,Y,Z axes
  Safety standards UL8750
  Withstand voltage I/P-O/P:1.88KVAC
  Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
Safety&EMC EMC EMISSION FCC Part 15 B
Others Weight 1.5Kg
Size 1.0 version: 260*103*46mm / 2.0 version:260*105*45mm /3.0 version:260*125*45mm
packaging 10PCS/CTN 385*335*200mm     20PCS/CTN
Notes 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.

12Vdc 24Vdc Non-Dimmable J-Box Driver 200WNon-Dimmable J-Box Driver 200W Connecting Diagram
