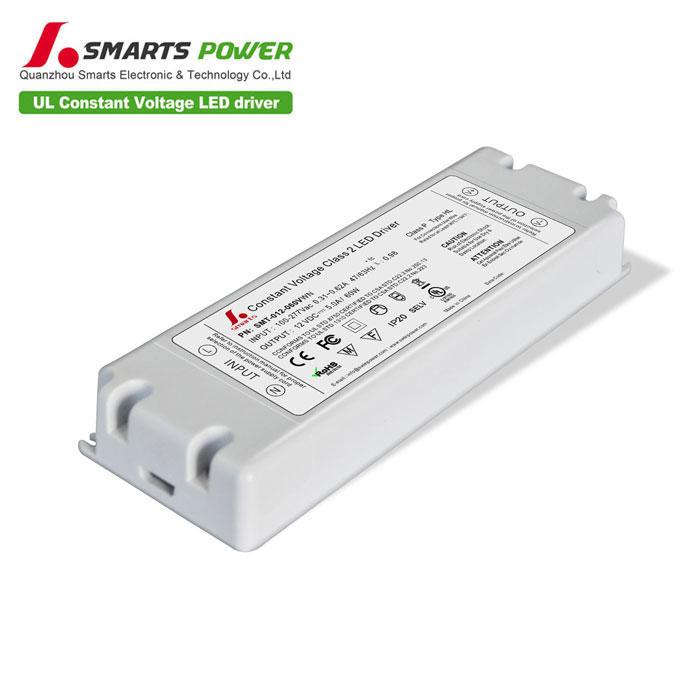

UL Non-Dimmable Driver 60W
SMT-012-060VWN
Non-dimmable LED Driver
SMARTS
Smarts offers of UL listed constant voltage led driver 24v 60w input 100-277Vac.These non-dimmable led power supply 60w are rated to run at 88% can saves more electricity.Can be purchased in bulk a...
Smarts offers of UL listed constant voltage led driver 24v 60w input 100-277Vac.These non-dimmable led power supply 60w are rated to run at 88% can saves more electricity.Can be purchased in bulk at factory price.
| model | SMT-012-060VWN | SMT-024-060VWN | |
| Output | DC Voltage | 12V | 24V |
| Adj. Voltage Range | 10-13V | 21.5-25.5V | |
| Voltage Tolerance | ±0.5V | ±0.5V | |
| Voltage Regulation | ±0.5% | ||
| Rated current | 5.00A | 2.50A | |
| Load Regulation | ±1% | ||
| Rated power | 60W | 60W | |
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47-63Hz | ||
| Power Factor(Typ.)@ full load | 0.99@120VAC 0.94@230VAC 0.94@277VAC | 0.99@120VAC 0.95@230VAC 0.94@277VAC | |
| THD(Typ.)@ full load | <15%@120VAC <20%@230VAC < 20%@277VAC | ||
| Efficiency(Typ.)@ full load | 83%@120VAC 87%@230VAC 85%@277VAC | 85%@120VAC 88%@230VAC 86%@277VAC | |
| AC Current(Max.) | 0.9A@100VAC | ||
| Inrush Current (Typ.) | 14A, 50%, 780us@120VAC; 50A,50%,176us@230VAC; 15A,50%,660us@277VAC | ||
| Leakage current | <0.50mA | ||
| protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | |
| Over Loading | ≤120% Hiccup mode,recovers automatically after fault condition is removed | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20~90%RH, non-condensing | ||
| Storage TEMP. Humidity | -40~+80℃,10~95%RH | ||
| TEMP .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | UL8750+UL1310 | |
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC Part 15 B | ||
| EMC IMMUNITY | Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547 Alight industry level (surge4KV) | ||
| Others | Weight | About 0.35Kg | |
| Size | 178*61*24mm(L*W*H) | ||
| packing | 20PCS/CTN (L*W*H) | ||
| Notes | 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. | ||
| 2. To extend the driver's using life ,please reduce the loading at lower input voltage. | |||
