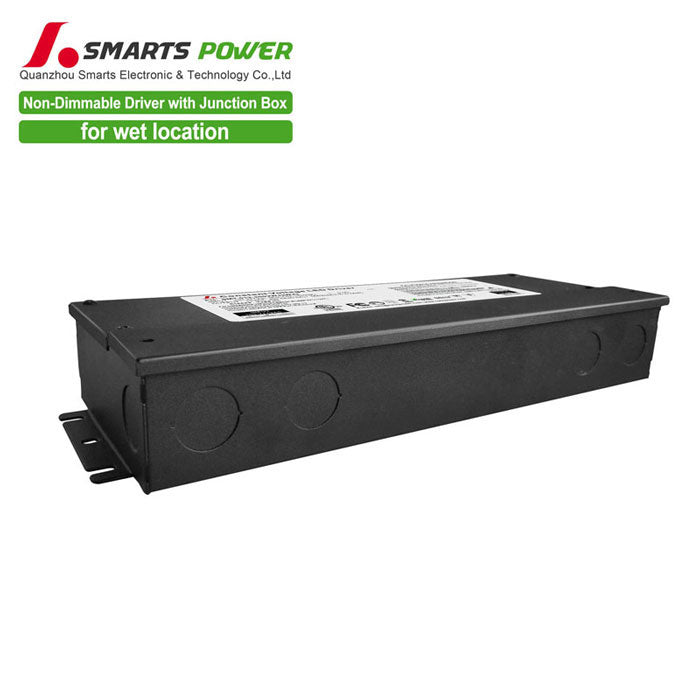

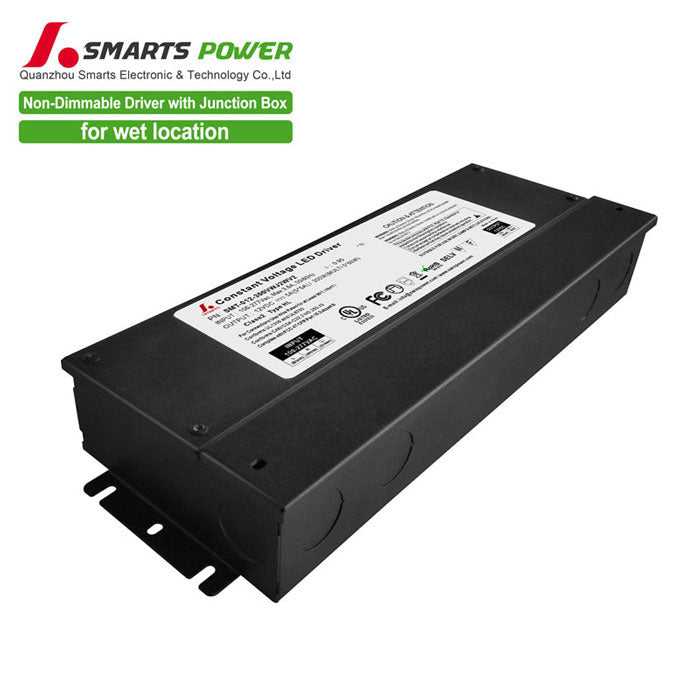

UL Class 2 Non-Dimmable J-Box Driver 384W
SMT-024-384VWJ2V2
Non-dimmable LED Driver
SMARTS
SMARTS UL class 2 12v led transformer driver 384W with 7 years warranty,It can meet the application of most lighting projects in the North American market. Can be used with LED strip 100W.with over...
SMARTS UL class 2 12v led transformer driver 384W with 7 years warranty,It can meet the application of most lighting projects in the North American market. Can be used with LED strip 100W.with overload and overvoltage protection
| Model | SMT-024-384VWJ2V2 | SMT-W048-384VWJ2V2 | |
| Output | DC Voltage | 24V | 48V |
| Voltage Tolerance | 4*4A | 4*2A | |
| Voltage Regulation | 384W (4*96W) | 384W (4*96W) | |
| Load Regulation | ±0.5V | ||
| Rated current | ±0.5% | ||
| Rated power | ±1% | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47-63Hz | ||
| Power Factor(Typ.)@ full load | 0.98@120VAC 0.96@277VAC | 0.98@120VAC 0.96@277VAC | |
| THD(Typ.)@ full load | <20% | <20% | |
| Efficiency(Typ.)@ full load | 87%@120V 90%@277VAC | 87%@120V 90%@277VAC | |
| AC Current(Max.) | 4A@100VAC | 4A@100VAC | |
| Inrush Current (Typ.) | 35A ,50%,960us @120VAC ; 43A,50%,1ms @277VAC 12.4A (twidth=430us) @277VAC | ||
| Leakage current | <0.50mA | ||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Loading | ≤120% Hiccup mode ,recovers automatically after fault condition is removed | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20~90%RH, non-condensing | ||
| Storage TEMP. Humidity | -40~+80℃,10~95%RH | ||
| TEMP .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety standards | UL8750+UL1310 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| Safety&EMC | EMC EMISSION | FCC 47 CFR Part 15 ,Subpart B | |
| Others | Net. Weight | 2.7Kg | |
| Size | 323*140*47.5mm (L*W*H) | ||
| packing | 10pcs/ctn | ||
| Notes | 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. | ||
| 2. To extend the driver's using life ,please reduce the loading at lower input voltage. | |||
