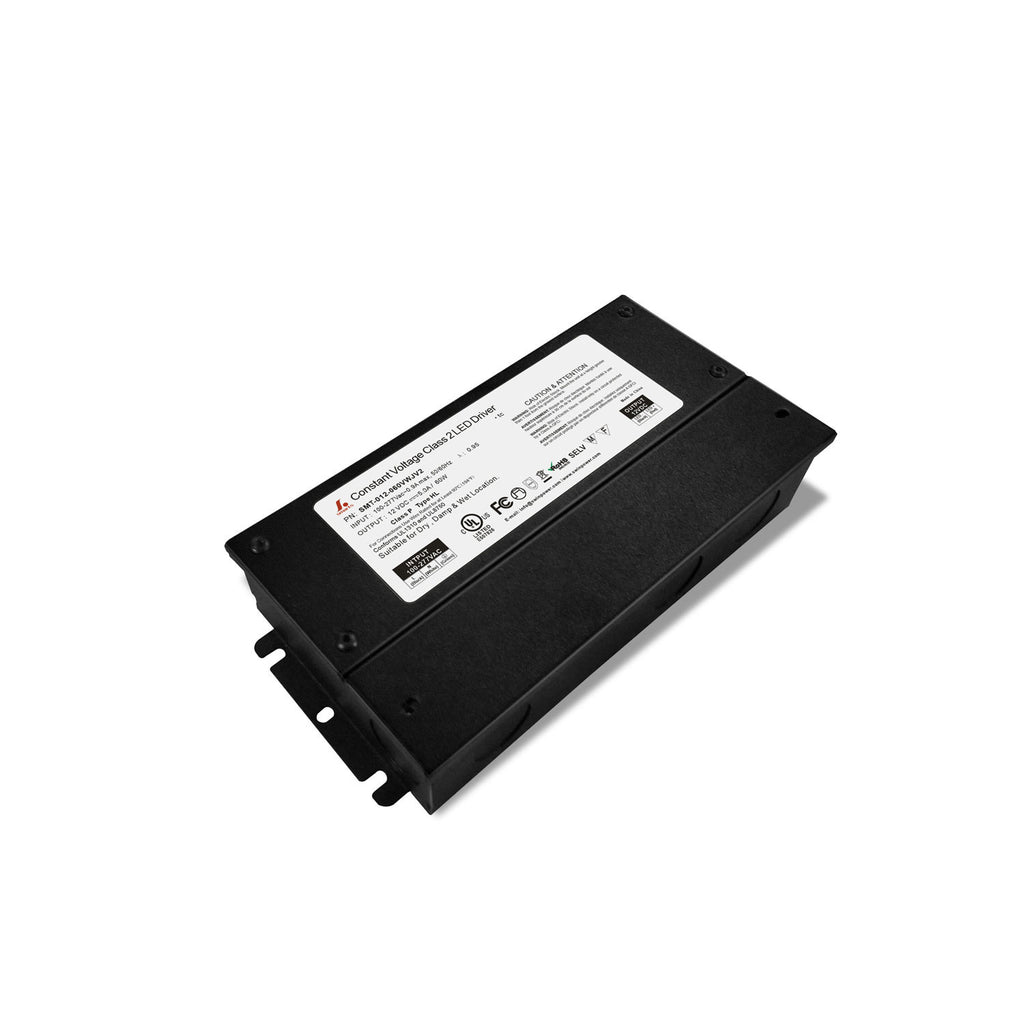

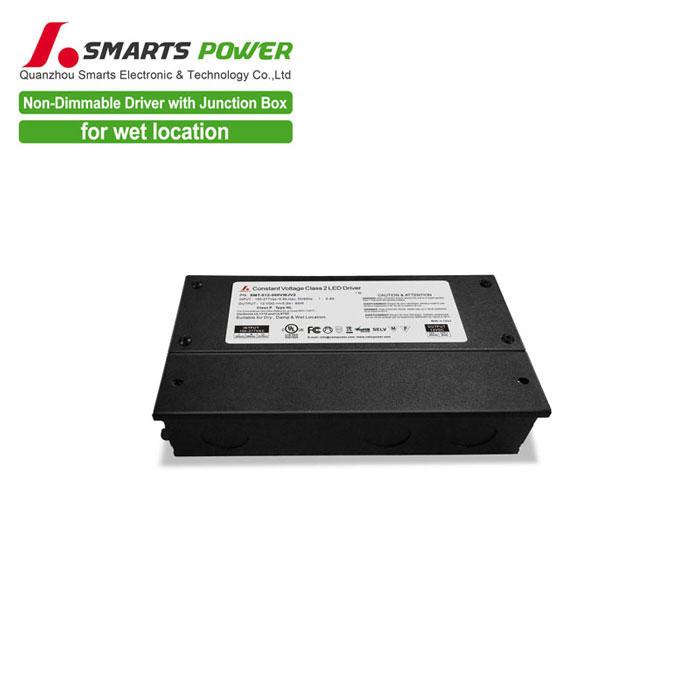

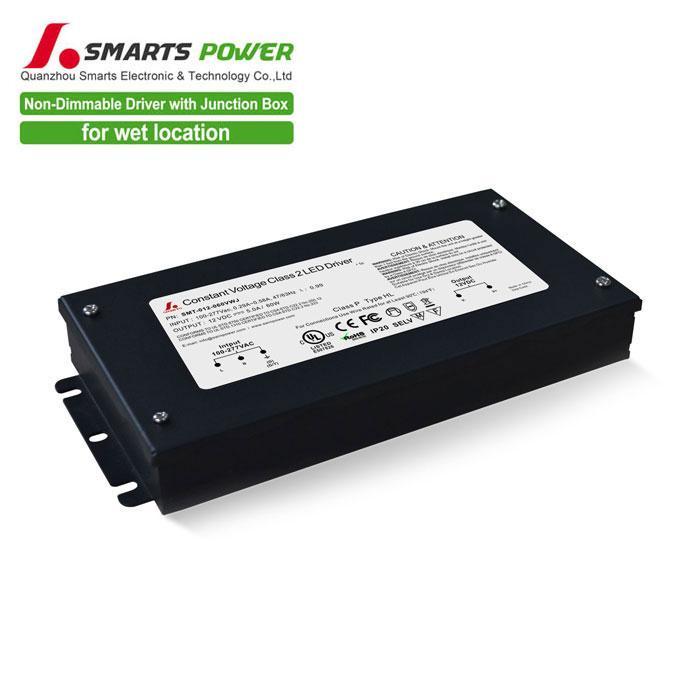

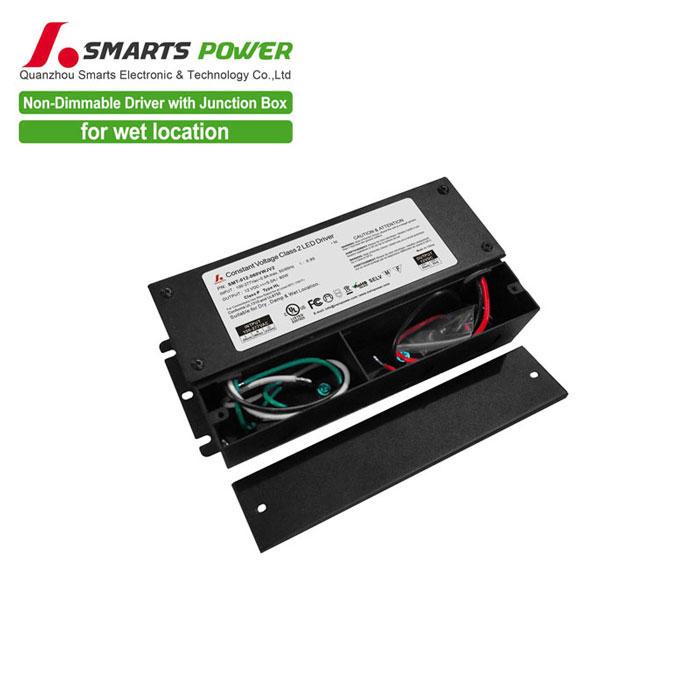

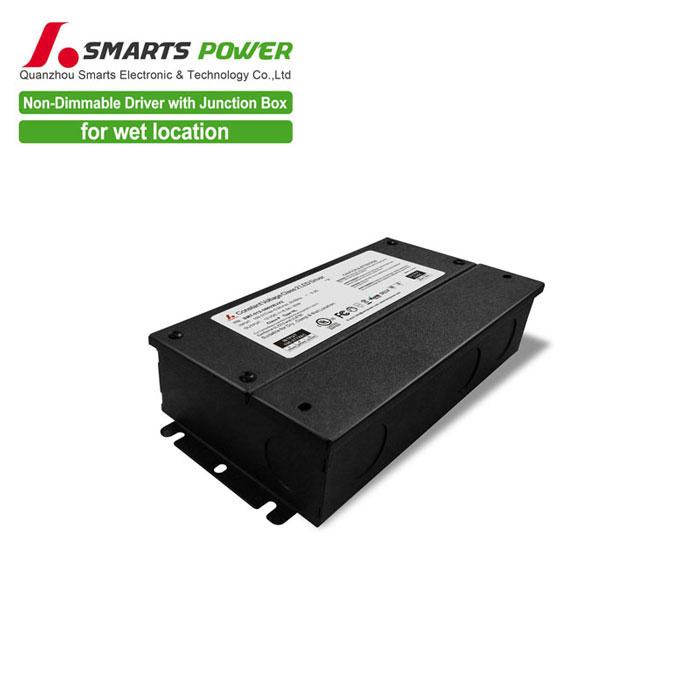

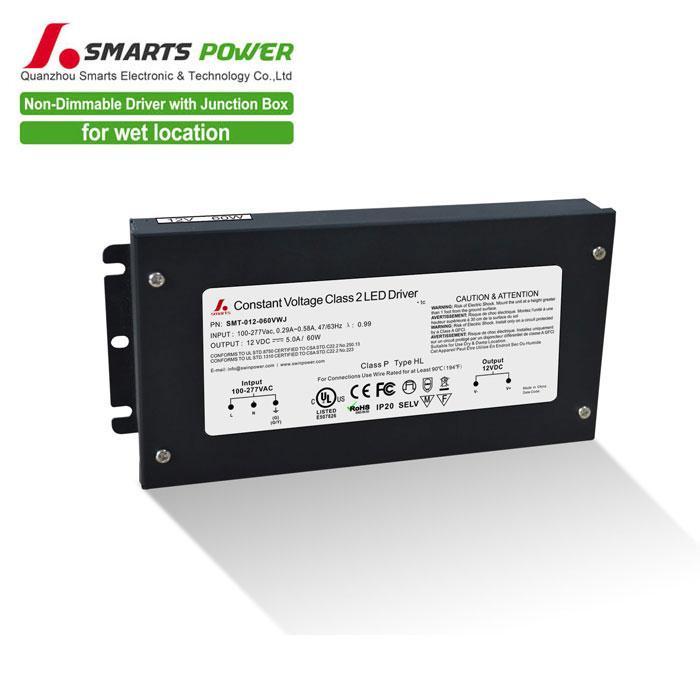

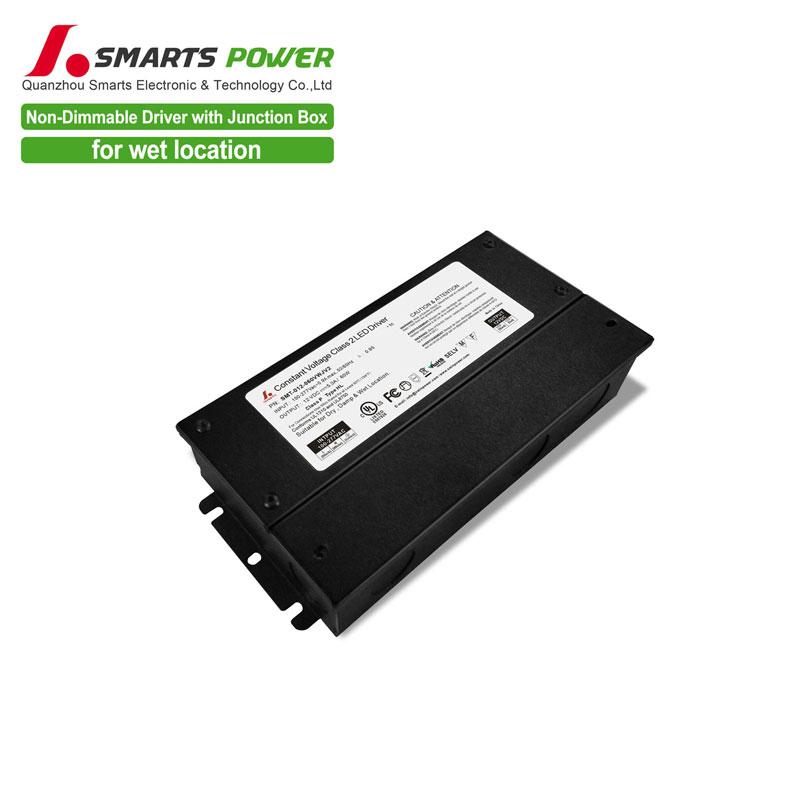

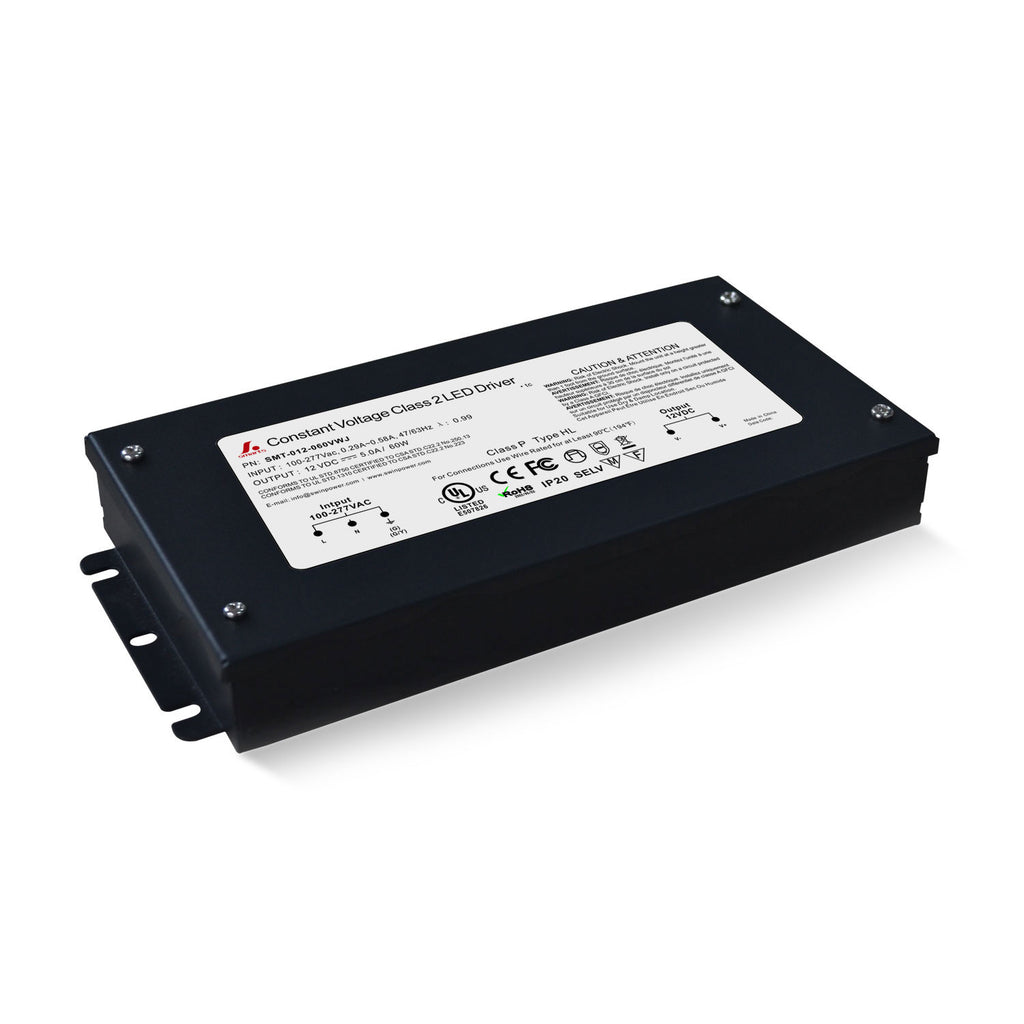

Non-Dimmable J-Box Driver 60W

SMT-012-060VWJV2
Non-dimmable LED Driver
SMARTS
SMARTS 12v 24v dc led driver 60W is a non-dimmable LED strip driver with strong sealing and high PF and high efficiency.  It has passed UL certification to meet the lighting needs of the North Amer...
Output Voltage*
SIZE*
Bulk Savings*
$66.20
$66.20

SMARTS 12v 24v dc led driver 60W is a non-dimmable LED strip driver with strong sealing and high PF and high efficiency.  It has passed UL certification to meet the lighting needs of the North American market.

model SMT-012-060VWJ (1.0 version)
SMT-012-060VWJV2 (2.0 version)
SMT-024-060VWJ (1.0 version)
SMT-024-060VWJV2 (2.0 version)
Output DC Voltage 12V 24V
Voltage Accuracy ±0.5V ±0.5V
Voltage Regulation ±0.5%
Rated current 5.00A 2.50A
Load Regulation ±1%
Rated power 60W 60W
Input Voltage Range 100-277VAC
Frequency Range 47-63Hz
Power Factor(Typ.)@ full load 0.99@120V ;0.94@230V ;0.94@277V 0.99@120V ; 0.95@230V ;0.94@277V
THD(Typ.)@ full load <15% @120V    <20%@230V      <20% @277V
Efficiency(Typ.)@ full load 83%@120V  87%@230V  85%@277V 85%@120V  88%@230V  86%@277V
AC Current(Max.) 0.9A (100VAC)
Inrush Current (Typ.) 14A,50% ,780us @120v ;50A,50% 176us@230V ;15A 50% 660us@277V
Protection Leakage current <0.50mA
Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading ≤120% Hiccup mode, recovers automatically after fault condition is removed
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20~90%RH, non-condensing
Storage TEMP. Humidity -40~+80℃,10~95%RH
TEMP .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle, period for  60min. each along X,Y,Z axes
Safety&EMC Safety standards UL8750+UL1310
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION FCC Part 15 B
Others Weight About 1.1Kg
Size 1.0 version: 188*92*40mm /2.0 version: 188*94.5*40mm(L*W*H)
packing 10PCS/CTN(L*W*H)
Notes 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.

12Vdc 24Vdc Non-Dimmable J-Box Driver 60WNon-Dimmable J-Box Driver 60W Connecting Diagram
