Slim Size Non-Dimmable LED Driver 60W (IP67)

SMT-012-060VWSW
Non-dimmable LED Driver
SMARTS
SMARTS is a supplier of LED driver 60W.We designed an ultra-thin, slender, high-PF & Efficiency LED power supply. our 60W LED driver has more market advantages and is widely praised by the Euro...
Output Voltage*
SIZE*
Bulk Savings*
$63.00
$63.00

SMARTS is a supplier of LED driver 60W.We designed an ultra-thin, slender, high-PF & Efficiency LED power supply. our 60W LED driver has more market advantages and is widely praised by the European and American markets.

model SMT-012-060VWSW SMT-024-060VWSW
Output DC Voltage 12VDC 24VDC
Voltage Accuracy ±5% ±5%
Rated current 5.0Amp 2.5Amp
Rated power 60W 60W
Voltage Regulation ±0.5%
Load Regulation ±1%
Input Voltage Range 100-277 VAC
Frequency Range 47~63HZ
Power Factor ( Typ.) PF≧0.99/110V ; PF≧0.98/230V ; PF≧0.97/277V
Full Load Efficiency(Typ.) 82%@120VAC ;84%@230VA ; 84%@ 277VAC 84%@120VAC;86%@230VAC; 86%@ 277VAC
AC Current(Typ.) 0.75A/100VAC  /  0.2A/277VAC
Inrush Current(Typ.) 7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;  12A,50%480us@277VAC
Leakage current <0.5mA/110VAC; ﹤0.2mA/277VAC
Protection Short Circuit Hiccup mode, recovers automatically after fault condition is removed.
Over Loading ≤120% shut down o/p voltage, re-power on to recover
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment Working TEMP. -40~+60℃
Working Humidity 20~90%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z  axes
Safety&EMC Safety standards EN61347-1  EN61347-2-13
Withstand voltage I/P-O/P: 3.75KVAC
Isolation resistance I/P-O/P:100M Ohms/500VDC/25℃/70%RH
EMC EMISSION Compliance to EN55015,EN61000-3-2 (≥60%load)
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
Others Weight 0.45Kg

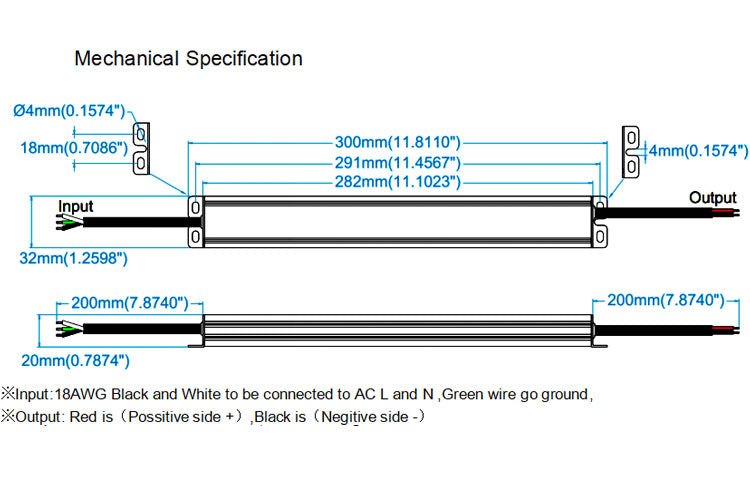

Size 300*32*20mm (L*W*H)
packing 50PCS/CTN
Notes 1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufacturesmust be-qualify EMC Directive on the complete installation again.

Slim Size waterproof constant voltage Non-Dimmable LED Driver 60W (IP67)

Slim Size waterproof constant voltage Non-Dimmable LED Driver 60W (IP67)
