Slim Size Non-Dimmable LED Driver 100W (IP67)
SMT-012-100VWSW
Non-dimmable LED Driver
SMARTS
SMARTS' slim size waterproof led drivers 100W have passed UL CUL SAA and other international certifications, and are mainly sold in USA, Canada, Australia.... SMARTS's slim size 12V 24Vdc LED power...
SMARTS' slim size waterproof led drivers 100W have passed UL CUL SAA and other international certifications, and are mainly sold in USA, Canada, Australia.... SMARTS's slim size 12V 24Vdc LED power supply is better Welcomed by the international market.
| model | SMT-012-100VWSW | SMT-024-096VWSW | |
| Output | DC Voltage | 12VDC | 24VDC |
| Voltage Accuracy | ±5% | ±5% | |
| Rated current | 8.33Amp | 4Amp | |
| Rated power | 100W | 96W (class 2) | |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input | Voltage Range | 100-277 VAC | |
| Frequency Range | 47~63HZ | ||
| Power Factor ( Typ.) | 0.99@120VAC; 0.98@230VAC; 0.95@277VAC | ||
| THD(Typ.)@ full load | <15%@120VAC <20%@230VAC <20%@277VAC | ||
| Full Load Efficiency(Typ.) | 83%@120VAC; 85%@230VAC; 85%@ 277VAC | ||
| AC Current(Typ.) | 1.4A/100VAC / 0.82A/230VAC / 0.43A/277VAC | ||
| Inrush Current(Typ.) | 7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC | ||
| Leakage current | <0.50mA | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Loading | ≤120% shut down o/p voltage, re-power on to recover | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~90%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 | |
| Withstand voltage | I/P-O/P: 3.75KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms/500VDC/25℃/70%RH | ||
| EMC EMISSION | Compliance to EN55015,EN61000-3-2 (≥60%load) | ||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry | ||
| Others | Weight | 0.55Kg | |

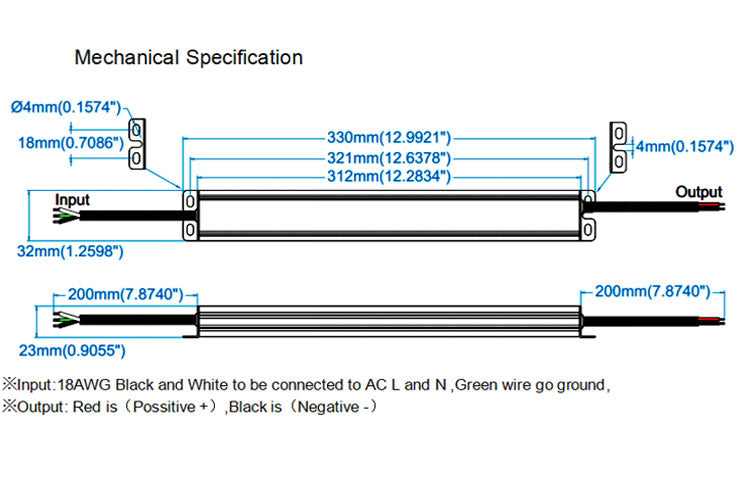

| Size | 330*32*23mm (L*W*H) | ||
| packing | 50PCS/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC, 277VAC input ,Rated load and 25℃of ambient temperature. | ||
| 2. Tolerance:includes set us tolerance,line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||
