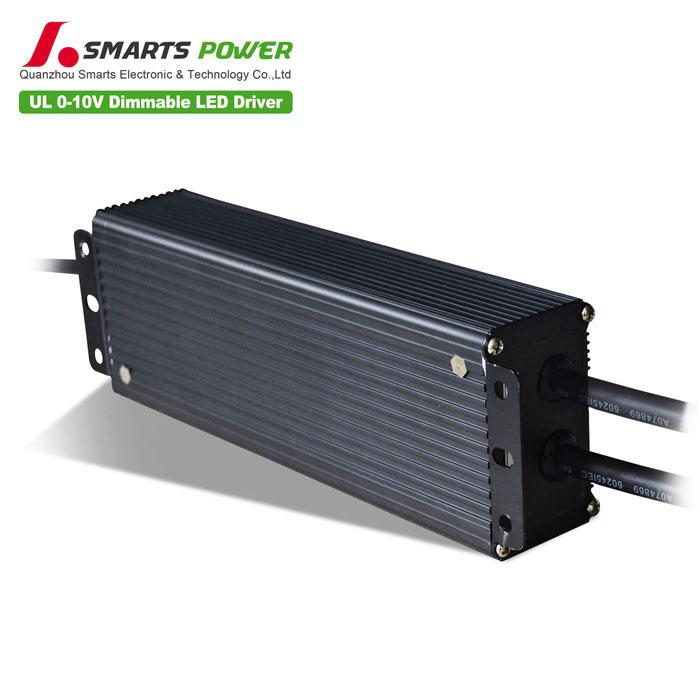

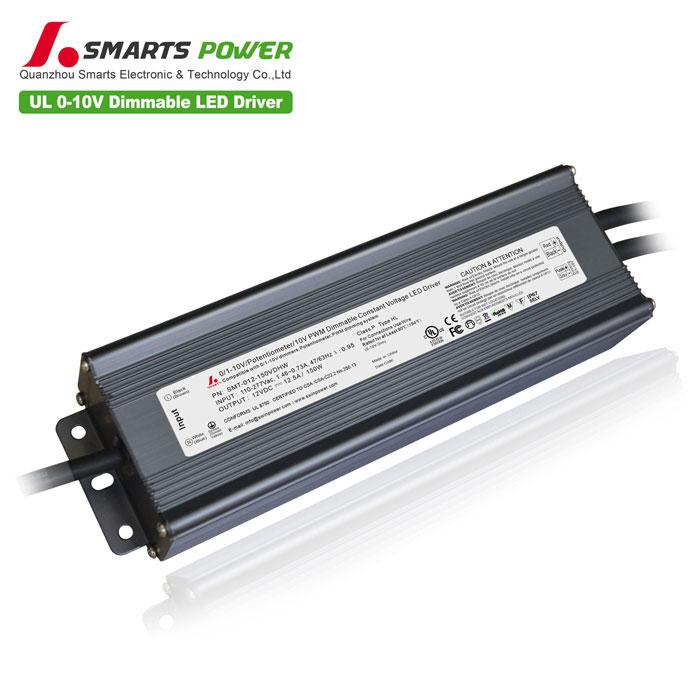

277V 0-10V Dim Driver 150W(Standard Size)

SMT-012-150VDHW
0-10V Dimmable LED Driver
SMARTS
Smarts Waterproof 0 10v led driver transformer 24v 150w With smooth dimming function, no flicker, good energy-saving effect, compatible with a variety of dimmers. With a 7-year warranty,  Model...
Output Voltage*
SIZE*
Bulk Savings*
$161.04
$161.04

Smarts Waterproof 0 10v led driver transformer 24v 150w With smooth dimming function, no flicker, good energy-saving effect, compatible with a variety of dimmers. With a 7-year warranty,

Model SMT-012-150VDHW SMT-024-150VDHW
Output DC Voltage 12V 24V
Voltage Accuracy ±0.5V
Rated current 0~12.5A 0~6.25A
Rated power 150W
Input Voltage Range 100-305VAC (110, 277VAC)
Frequency Range 47~63HZ
Power Factor ( Typ.) PF≧0.96/110V / PF≧0.96/220V / PF≧0.98/277V
Full Load Efficiency(Typ.) >91%(110V) / >95%(277V) >90%(120V) / >92%(277V)
AC Current(Typ.) 1.43A(120V) / 0.93A(277V) 1.39A(120V) / 0.90A(277V)
Leakage current ﹤0.8mA/120VAC / ﹤0.7mA/220VAC / ﹤0.7mA/277VAC
Protection Short Circuit Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over voltage  ≦330VAC
Over temperature 100℃±10℃ shut down o/p voltage, re-power on to recover
Environment Working TEMP. -40~+50℃
Working Humidity 20~95%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z   axes
Safety&EMC Safety standards Class P, Type HL, EN61347-1 EN61347-2-13.IP67
Withstand voltage I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC
Isolation resistance I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC EMISSION Compliance to EN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level
Others Weight 1.8Kg
Size 255*80*53mm(L*W*H)
packing 440*295*145mm/8pcs/CTN    265*98*55 mm for inner box
Notes 1. All parameters NOT specially mentioned are measured at 110~277VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .

12Vdc 24Vdc 0-10v Dimmable Driver 150W

0-10V Dimmable Driver 150W Connecting Diagram

Product Certificate
