Triac Dimmable Driver 120W (Standard Size)
SMT-012-120VT
Triac Dimmable LED Driver
SMARTS
Waterproof 24v triac dimmable led driver 120w UL,CE,ROHS,FCC,Class 2,Class P,type HL approval.high efficiency& reliability,save energy,Comply with international safety standards,
model
SMT...
Waterproof 24v triac dimmable led driver 120w UL,CE,ROHS,FCC,Class 2,Class P,type HL approval.high efficiency& reliability,save energy,Comply with international safety standards,
| model | SMT-012-120VT | SMT-024-120VT | |
| Output | DC Voltage | 12V | 24V |
| Voltage Accuracy | ±0.5V | ±0.5V | |
| Rated current | 10.00A | 5.00A | |
| Rated power | 120W | ||
| Input | Voltage Range | 100-130Vac(UL,ETL) 170-265Vac(CE) 180-265Vac(SAA) |
|
| Frequency Range | 50~60HZ | ||
| Power Factor | 0.65(Full loading) | ||
| Efficiency(Typ.) | 81% | 83% | |
| AC Current(Max.) | 2A | 2A | |
| Leakage current | ﹤0.50mA/120VAC | ||
| Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | |
| Over Current | ≤1.2*I out | ||
| Over Loading | ≤120% | ||
| Over temperature | 100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down. | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~95%RH, non-condensing | ||
| Storage TEMP. Humidity | -40~+80℃,10~95%RH | ||
| TEMP .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,5G 12min./1 cycle,period for 72min. each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | UL1012 | |
| Withstand voltage | I/P-O/P:1500VAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC Part 15 B | ||
| Others | Net. Weight | 1.2Kg | With junction 1.84Kg |

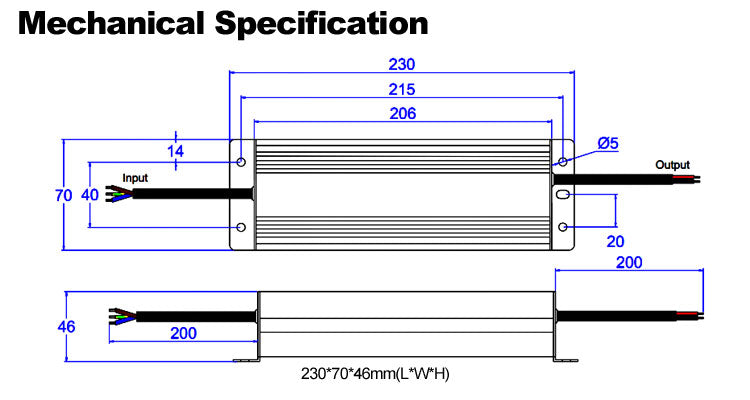

| Size | 230*70*46mm (L*W*H) | 380*77*57mm (L*W*H) | |
| packing | 324*279*176mm 10PCS/CTN | 415*360*190mm 10PCS/CTN | |
| Notes | 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃ of ambient temperature. | ||
| 2. To extend the driver's using life ,please reduce the loading at lower input voltage. | |||
| 3.Loading should be 5-100%. | |||
Input Brown with AC (L),Blue with AC(N)
Output Red is£¨DIM+£©,Black is£¨DIM-£©
?
Dimming Operation
n?Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
n?Compatible with Leading edge or tailing edge triac dimmers.
n?please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero
