Slim Size Non-Dimmable LED Driver 30W (IP67)
SMT-012-030VWSW
Non-dimmable LED Driver
SMARTS
non-dimmable waterproof electronic led driver 12v 30w ip67 The thin and slender design can be used in lighting projects subject to space constraints.
model
SMT-012-030VWSW
SMT-024-030VWSW
Outp...
non-dimmable waterproof electronic led driver 12v 30w ip67 The thin and slender design can be used in lighting projects subject to space constraints.
| model | SMT-012-030VWSW | SMT-024-030VWSW | |
| Output | DC Voltage | 12VDC | 24VDC |
| Voltage Accuracy | ±5% | ±5% | |
| Rated current | 2.5Amp | 1.25Amp | |
| Rated power | 30W | 30W | |
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input | Voltage Range | 100-277 VAC | |
| Frequency Range | 47~63HZ | ||
| Power Factor ( Typ.) | 0.99@120VAC 0.98@230VAC 0.95@277VAC | ||
| THD(Typ.)@ full load | <15%@120VAC <20%@230VAC <20%@277VAC | ||
| Full Load Efficiency(Typ.) | 82%@120VAC ; 83%@230VAC; 84%@ 277VAC | ||
| AC Current(Typ.) | 7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC |
||
| Leakage current | <0.50mA | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Loading | ≤120% shut down o/p voltage, re-power on to recover | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~90%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 | |
| Withstand voltage | I/P-O/P:3.75KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | Compliance to EN55015,EN61000-3-2 (≥60%load) | ||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry | ||
| Others | Weight | 0.35Kg | |

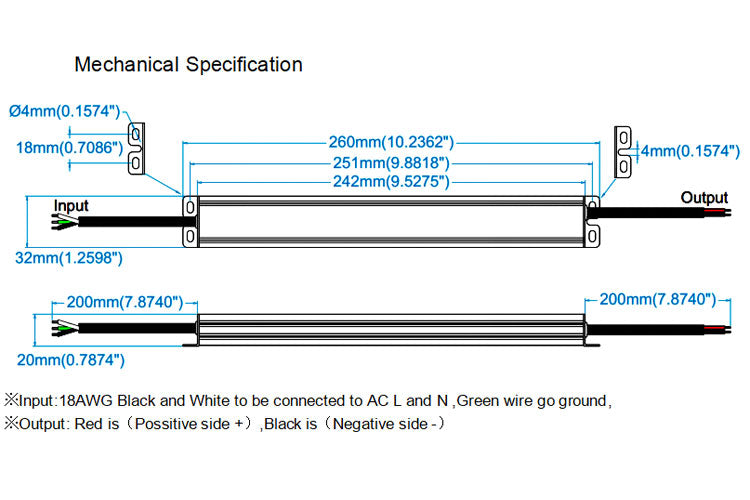

| Size | 260*32*20mm (L*W*H) | ||
| packing | 50PCS/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,Rated load and 25℃of ambient temperature. | ||
| 2. Tolerance:includes set us tolerance,line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||
