0-10V Dim Multi-Current Driver 10W (DIP Adjustment)
$36.80
-
$772.80
5 in 1 Dim Multi-Current Driver 40W (DIP Adjustment)
$52.68
-
$1,106.28
0-10V Dim Multi-Current Driver 10W (DIP Adjustment)
$36.80
-
$772.80
5 in 1 Dim Multi-Current Driver 40W (DIP Adjustment)
$52.68
-
$1,106.28
5 in 1 Dim Multi-Current Driver 60W (DIP Adjustment)
SMT-M-060CTD

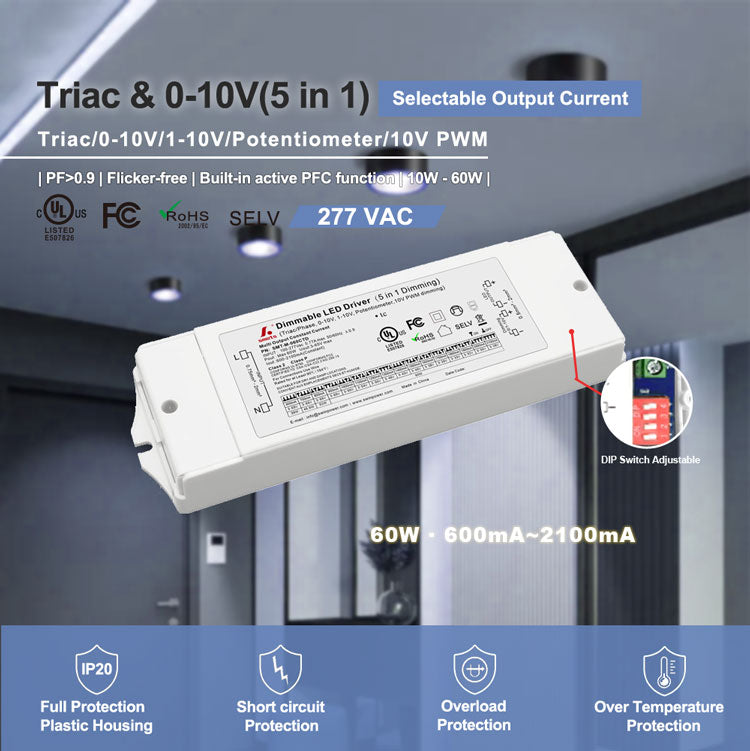

5 in 1 Dimmable LED Driver
SMARTS

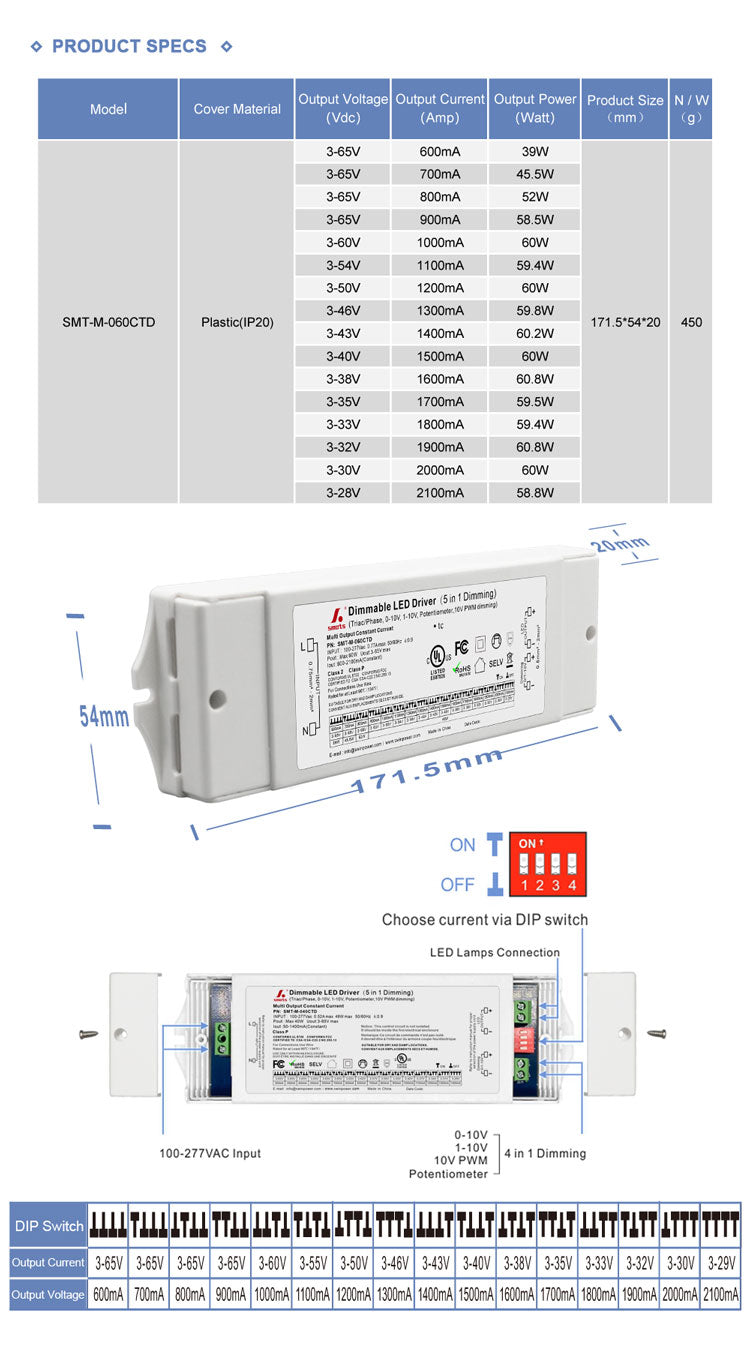

This is a multiple output driver available in 600mA-2100mA, 3-65V. Combine two type of dimming mode: dimmable triac and 0-10V. Provide 7 years warranty. IP20 design for indoor lighting applications...
This is a multiple output driver available in 600mA-2100mA, 3-65V. Combine two type of dimming mode: dimmable triac and 0-10V. Provide 7 years warranty. IP20 design for indoor lighting applications. Suitable for most dimmers 110V.

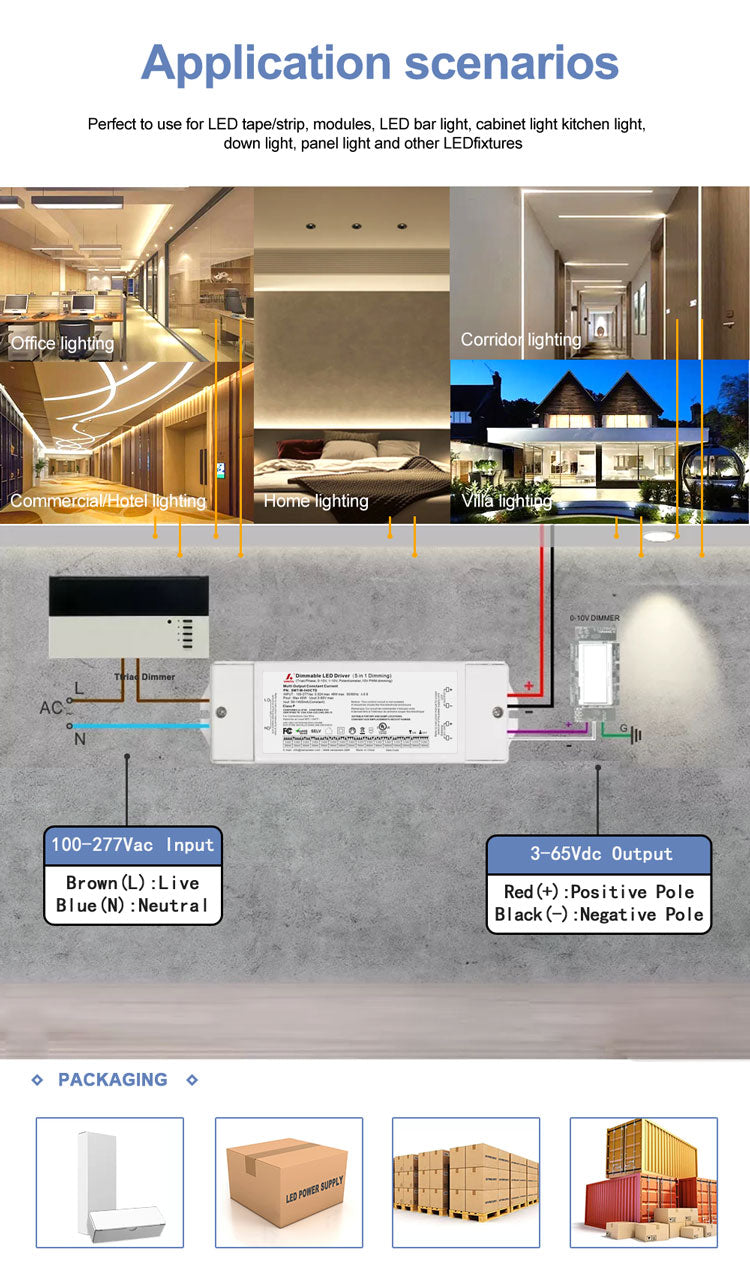

※Input terminals "Black" and "White" to connect to AC L and N.
※Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.
※Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)
※Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged
